HYDRAULIC UNIT48
BDraft Control
This will control the pull of the 3-point implement. As the
load on the 3-point hitch changes due to various soil
conditions, the draft control system automatically
responds to these changes by either raising or lowering
the implement slightly to maintain a constant pull.
Place the position control lever in the lowest position and
set the implement pull with the draft control lever.
BMixed Control
In draft control, when draft decreases, the implement
automatically lowers to increase draft. However, the
implement sometimes lowers too much. To limit the
degree, the implement can be lowered, set the position
control lever at the lowest working depth desired for the
implement. Lower the draft control lever to the point where
the implement is at the desired depth.
This stops the implement from going too deep and
causing loss of traction and ground speed.
BFloat Control
Place both the draft control lever and the position control
lever in the float position to make the lower links move
freely along with the ground conditions.
B3-point Hitch Lowering Speed
To avoid personal injury:
A Fast lowering speed may cause damage or
injury. Lowering speed of implement should be
adjusted to two or more seconds.
The lowering speed of the 3-point hitch can be controlled
by adjusting the 3-point hitch lowering speed knob.

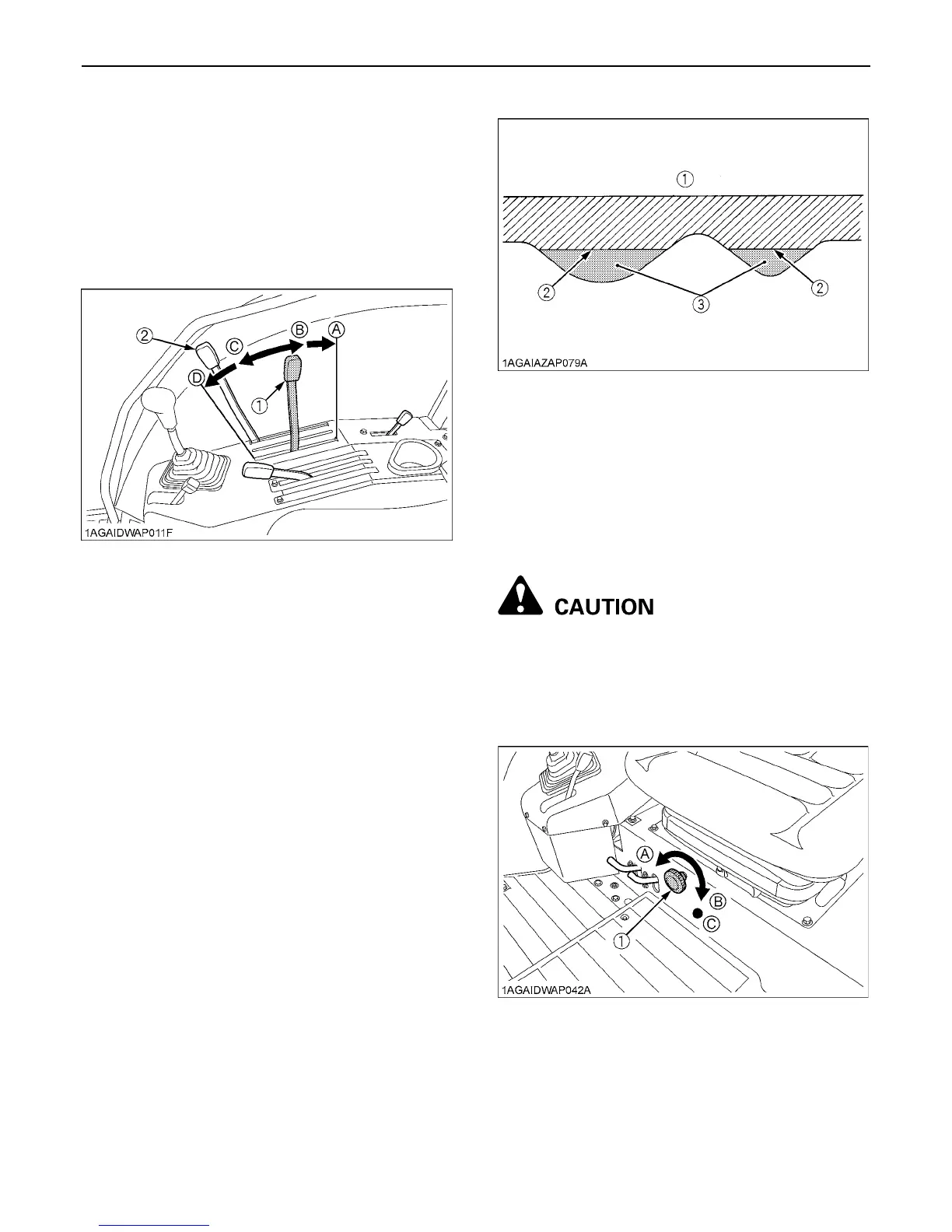

(1) Draft control lever
(2) Position control lever
(A) "UP"
(B) "SENSITIVE"
(C) "INSENSITIVE"
(D) "FLOAT"
(1) Ground surface
(2) Implement penetration limit
(3) Light soil
(1) 3-point hitch lowering speed knob (A) "FAST"
(B) "SLOW"
(C) "LOCK"
