12. FRONT WHEEL/SUSPENSION/STEERING
12-9
VENOX250/250i

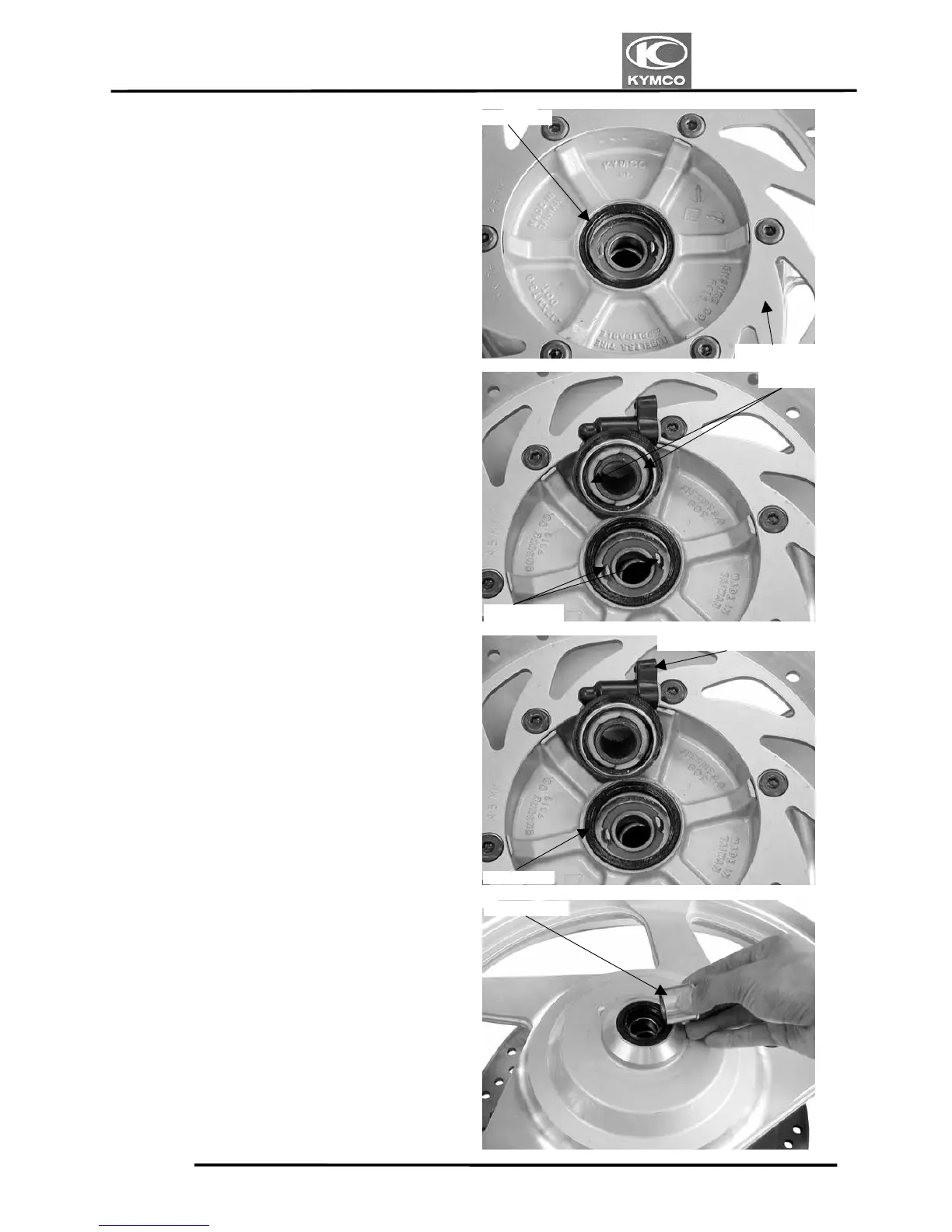

Install the brake disk and tighten the six
bolts.
Apply grease to the dust seal and install it.
Install the speedometer gearbox by aligning
the tabs with the grooves.
Apply grease to the speedometer gearbox
and dust seal, then install them to the wheel
from the left side.
Install the axle collar to the right side of the
wheel.
Dust Seal
Brake Dis
k
Groove
Flan
g
e Tab
S
pee
d
ometer
G
ear
b
ox
Dust
S
ea
l
Axle Colla
r
