7. CRANKSHAFT/PISTON/CYLINDER
7-9
VENOX250/250i

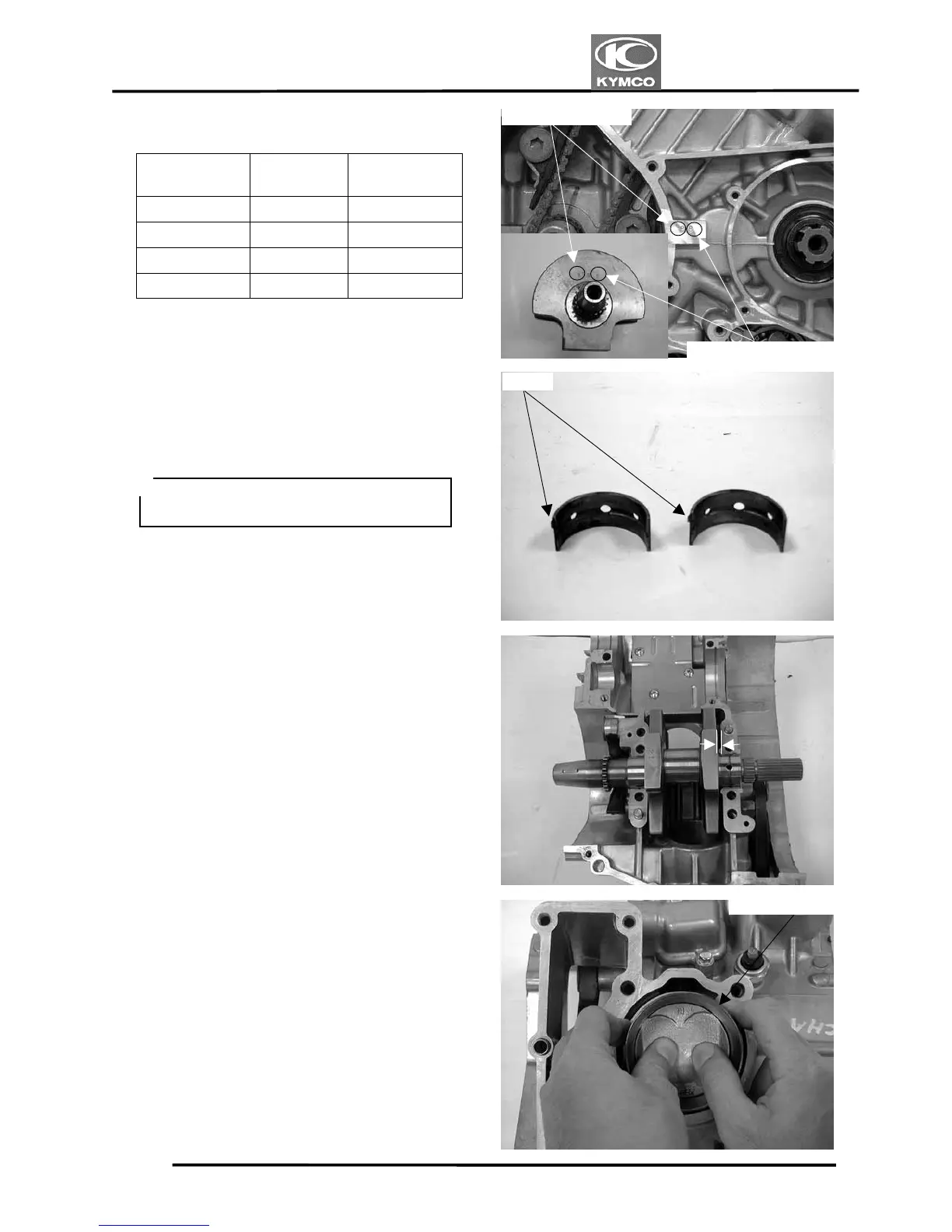

CRANK BEARING CHOICE
Crankcase
Mark
Crank Pin
Mark
Bearing
Chose(Color)
A B A(Brown)
A A B(Green)
B B B(Green)
B A C(Yellow)
First install the plate bearings before
installing the upper and lower crankcase.
Apply engine oil to the plate bearing on the
crankcase.
Measure the axle clearance between the
crank and crankcase.
Standard:0.30mm replace if over
Put the piston/connecting rod comp inside
the piston installer and then put it inside the
cylinder.
A.C.G. Side Mar
k
One-Way Side Mar
k
Flange
Piston Installe
r
＊
Press the flange on the plate bearing into
the crankcase groove.
