6. CYLINDER HEAD/VALVES
6-7
VENOX250/250i

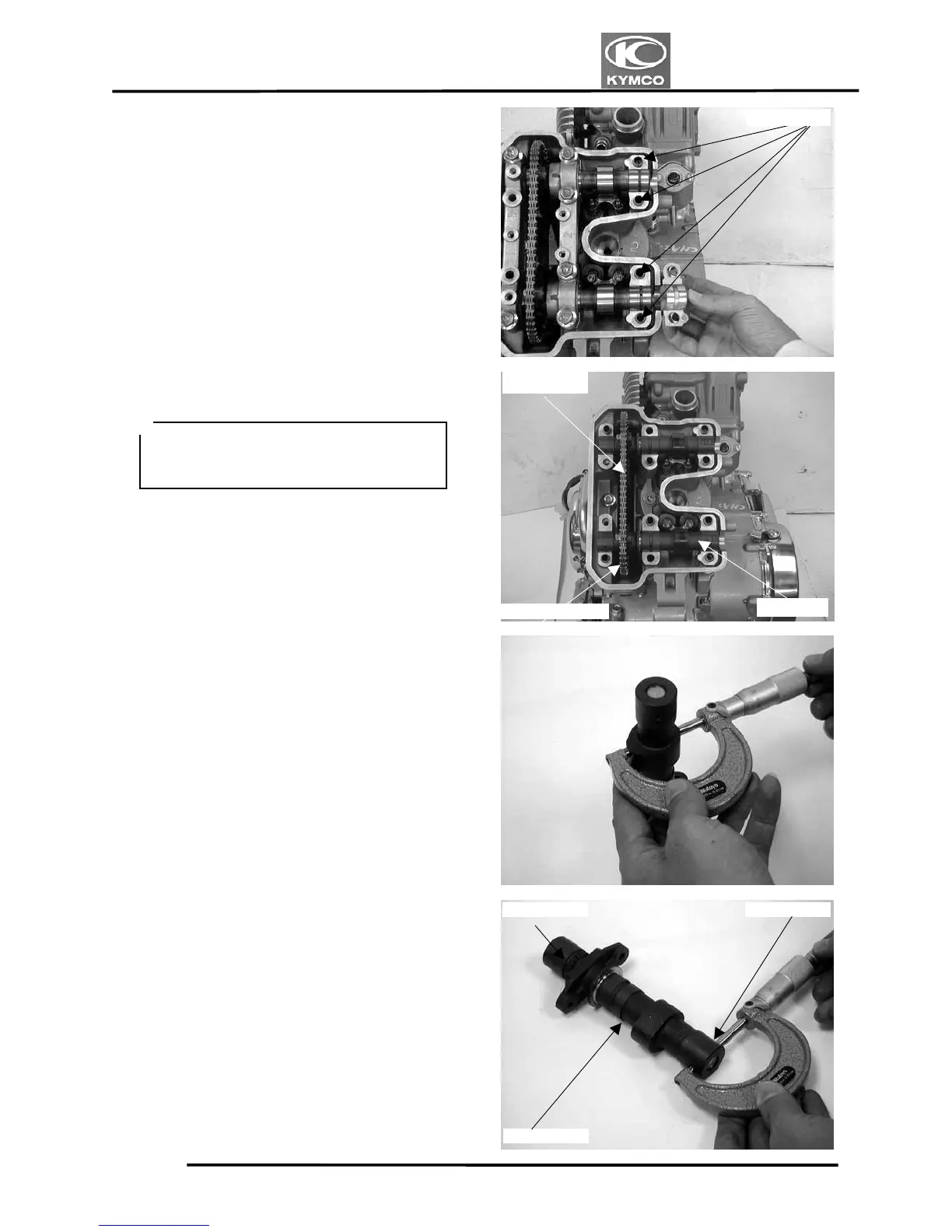

Remove the camshaft holder and dowel pins.
Remove the camshaft gear from the cam
chain and remove the camshaft.
CAMSHAFT INSPECTION
Check each cam for wear or damage.
Measure the cam height.
Service Limits:
Front IN : 34.40mm replace if below
EX: 34.40mm replace if below
Rear IN : 34.40mm replace if below
EX: 34.40mm replace if below
Check each camshaft for wear or damage.
Measure the camshaft height.
Service Limits:
R camshaft: 23.90mm
C camshaft: 23.80mm
L camshaft: 23.90mm
Dowel Pins
Cam Chain
Camshaft
Camshaft Gea
r
＊
Suspend the cam chain with a piece of
wire to keep it from falling into the
crankcase.
R Camshaft L Camshaft
C Camshaft
