(3) Paper conveying section
The paper conveying section conveys paper to the transfer/separation section as paper feeding from the cassette or MP
tray, or as paper refeeding for duplex printing. Paper by feeding is conveyed by the middle roller to the position where the
registration sensor is turned on, and then sent to the transfer/separation section by the front registration roller and rear
registration roller.

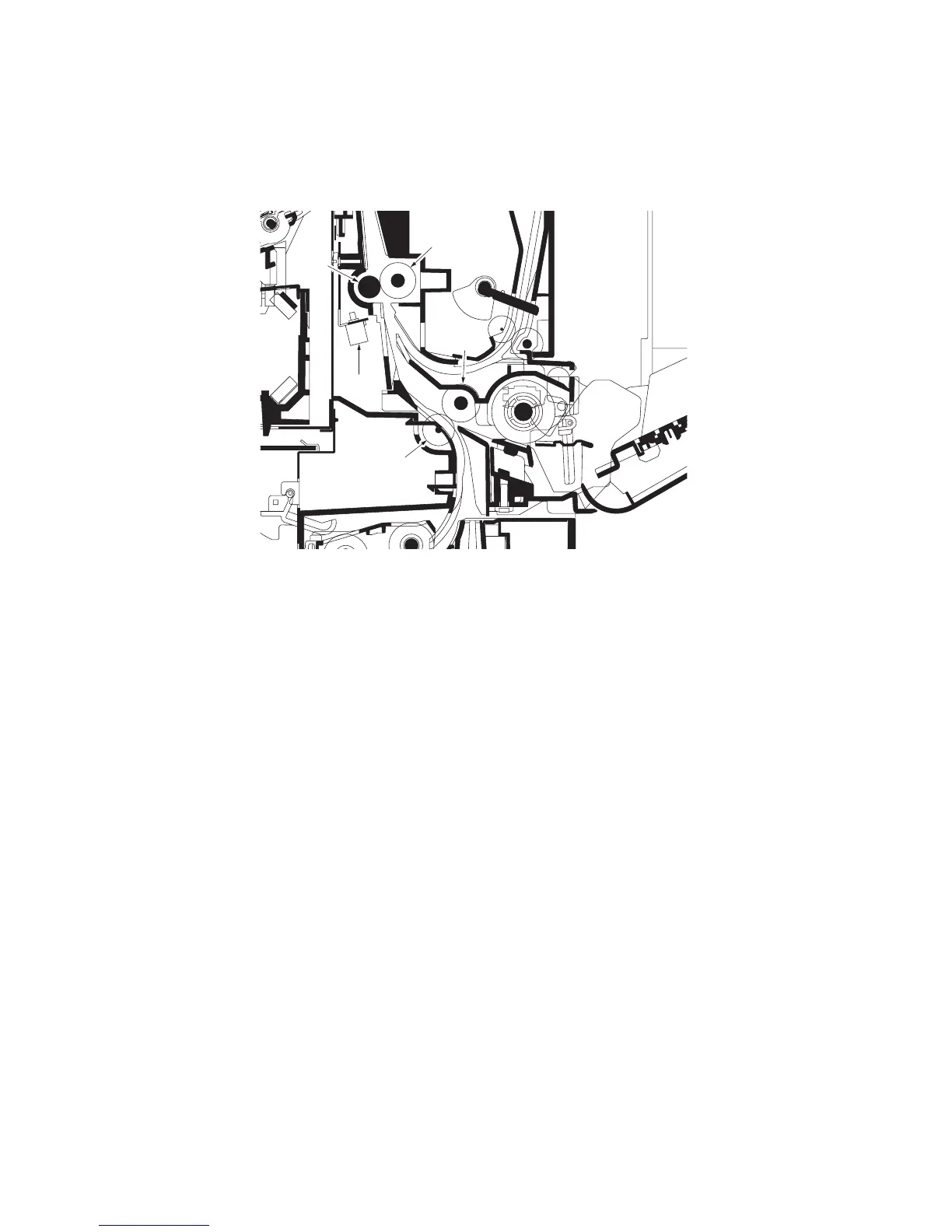

Figure 2-1-5 Paper conveying section
1
2
4
5
3
(1) Feed pulley
(2) Middle roller
(3) Registration sensor
(4) Front registration roller
(5) Rear registration roller

Kyocera FS-C5350DN Specifications

General

Color	Yes
Maximum resolution	9600 x 600 DPI
Time to first page (black, normal)	8.5 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Internal memory	256 MB
Processor model	PowerPC 750CL
Maximum internal memory	1280 MB
Sound power level (standby)	36 dB
Sound pressure level (printing)	55 dB
Total input capacity	150 sheets
Total output capacity	250 sheets
Maximum input capacity	2150 sheets
Maximum print size	210 x 297 mm
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Safety	GS, TÜV, CE
Power management	AC 220 - 240 V, 50/60 Hz
Custom media sizes	70 x 138 mm - 216 x 356 mm
Networking features	10/100BaseTX
Power consumption (active)	516 W
Compatible operating systems	Windows, Mac OS X 10.2, UNIX, LINUX
Maximum duty cycle	100000 pages per month
Power consumption (standby)	74 W
Power consumption (PowerSave)	8 W

Weight and Dimensions

Dimensions (WxDxH)	345 x 518 x 480 mm
