Kyocera FS-C5350DN Service Manual

2K8
2-2-1
2-2 Electrical Parts Layout
2-2-1 Electrical parts layout
(1) PWBs

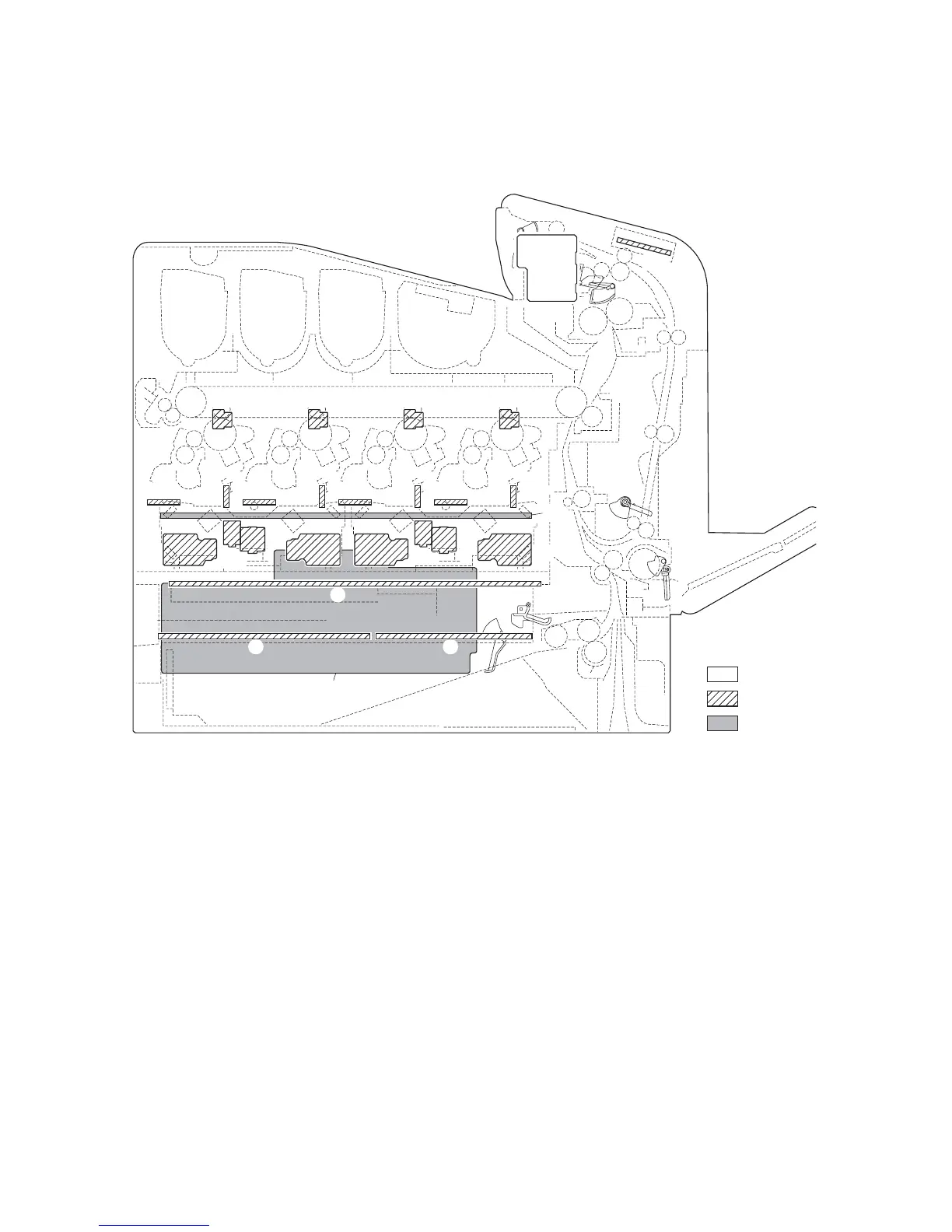

Figure 2-2-1 PWBs
1. Main PWB .................................................... Controls the software such as the print data processing and provides the
interface with computers.
2. Engine PWB................................................. Controls printer hardware such as high voltage/bias output control, paper
conveying system control, and fuser temperature control, etc.
3. Power source PWB...................................... After full-wave rectification of AC power source input, switching for
converting to 24 V DC for output. Controls the fuser heater lamp.
4. High voltage PWB........................................ Generates main charging, developing bias, transfer bias and cleaning
bias.
5. Operation panel PWB .................................. Controls the LCD display. Consists the LCD display, LED indicators and
key switches.
6. Paper exit PWB............................................ Interconnects the engine PWB and the electrical parts (paper exit sec-
tion).
7. Drum relay PWB .......................................... Interconnects the engine PWB and the drum units/developing units.
8. APC PWB M ................................................ Generates and controls the laser beam. (magenta)
9. APC PWB C................................................. Generates and controls the laser beam. (cyan)
10. APC PWB Y ................................................. Generates and controls the laser beam. (yellow)
11. APC PWB K ................................................. Generates and controls the laser beam. (black)
12. PD PWB M................................................... Controls horizontal synchronizing timing of laser beam. (magenta)
13. PD PWB C ................................................... Controls horizontal synchronizing timing of laser beam. (cyan)
14. PD PWB Y ................................................... Controls horizontal synchronizing timing of laser beam. (yellow)
Machine inside
Machine left
Machine right
24
20 21 22 23
16 17 18 19
25 26 27
12
13
14
15
8 11
910
5
6
7
3
1 2
4

Kyocera FS-C5350DN Specifications

General

Color	Yes
Maximum resolution	9600 x 600 DPI
Time to first page (black, normal)	8.5 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Internal memory	256 MB
Processor model	PowerPC 750CL
Maximum internal memory	1280 MB
Sound power level (standby)	36 dB
Sound pressure level (printing)	55 dB
Total input capacity	150 sheets
Total output capacity	250 sheets
Maximum input capacity	2150 sheets
Maximum print size	210 x 297 mm
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Safety	GS, TÜV, CE
Power management	AC 220 - 240 V, 50/60 Hz
Custom media sizes	70 x 138 mm - 216 x 356 mm
Networking features	10/100BaseTX
Power consumption (active)	516 W
Compatible operating systems	Windows, Mac OS X 10.2, UNIX, LINUX
Maximum duty cycle	100000 pages per month
Power consumption (standby)	74 W
Power consumption (PowerSave)	8 W

Weight and Dimensions

Dimensions (WxDxH)	345 x 518 x 480 mm
