Kyocera FS-C5350DN - Detaching and Refitting the Retard Roller

2K8
1-5-10
(2) Detaching and refitting the retard roller
Procedure
1. Remove the cassette (See page 1-5-8).
2. Release the two hooks and then remove the
retard guide (retard roller assembly).

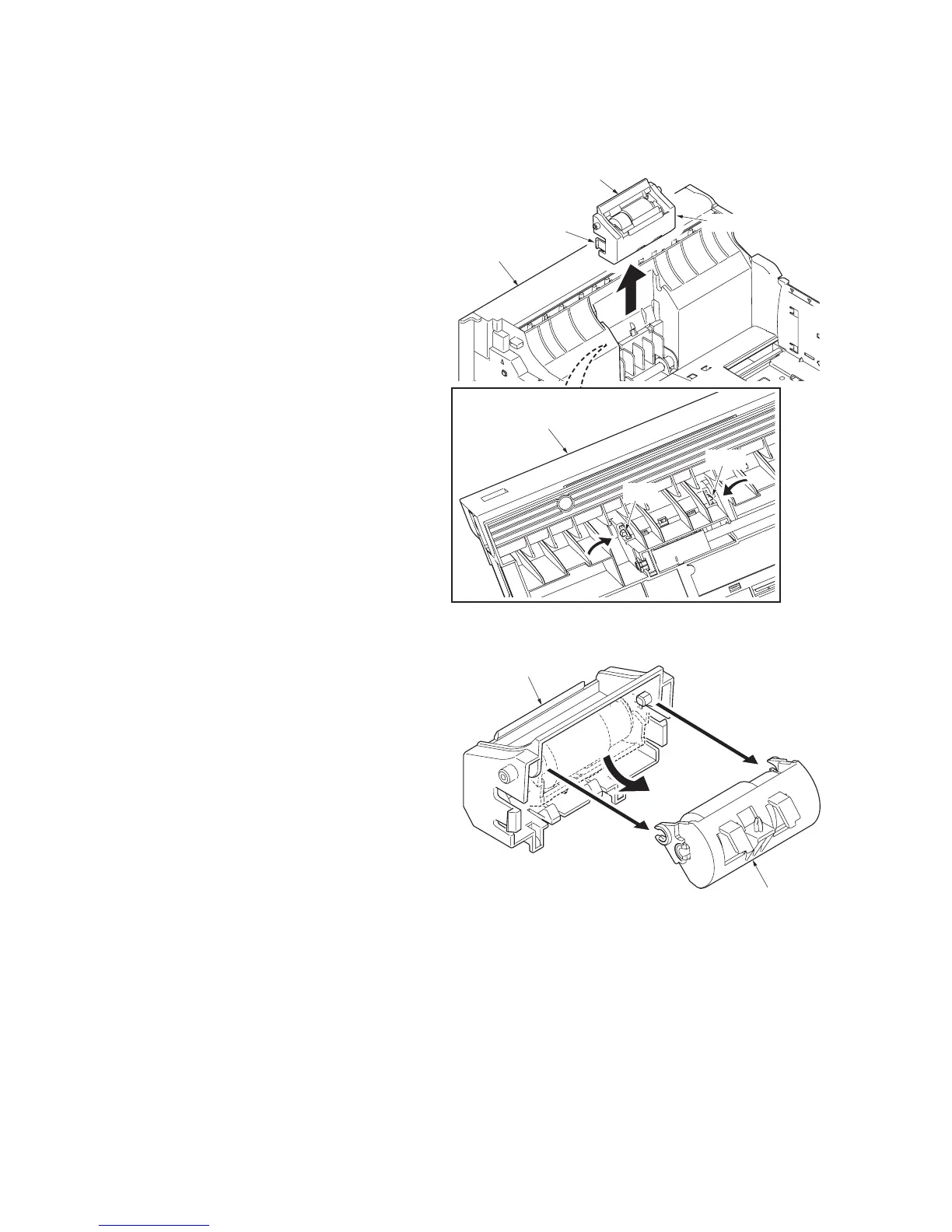

Figure 1-5-11
3. Remove the retard roller assembly.
4. Check or replace the retard roller assembly
and refit all the removed parts.
Figure 1-5-12
Retard guide
Cassette
Cassette
Hook
Hook
Hook
Hook
Retard roller assembly
Retard guide
