Kyocera FS-C5350DN Service Manual

2K8
1-4-26

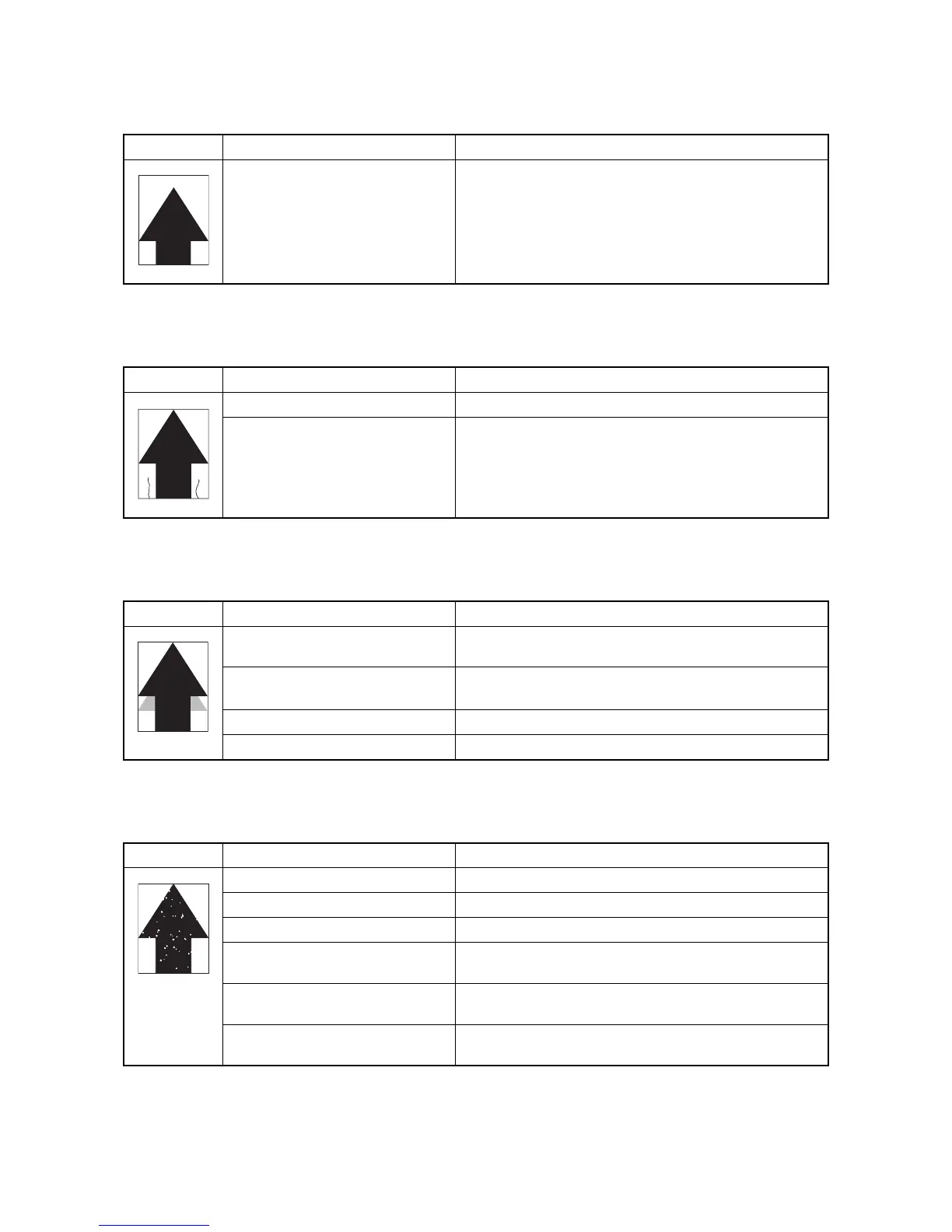

(11) The leading edge of image begins to print too early or too late.
(12) Paper is wrinkled.
(13) Offset occurs.
(14) Part of image is missing.
Print example Causes Check procedures/corrective measures
Paper feed clutch or registration
clutch operating incorrectly.
Check the installation of the clutch. If it operates incorrectly,
replace it.
Print example Causes Check procedures/corrective measures
Paper curled. Check the paper storage conditions, replace the paper.
Paper damp. Check the paper storage conditions, replace the paper.
Print example Causes Check procedures/corrective measures
Deformed or worn cleaning blade in
the drum unit.
Replace the drum unit.
Defective intermediate transfer belt
cleaning.
Replace the intermediate transfer unit (See page 1-5-16).
Defective fuser unit. Replace the fuser unit (See page 1-5-25).
Wrong types of paper. Check if the paper meets specifications. Replace paper.
Print example Causes Check procedures/corrective measures
Paper damp. Check the paper storage conditions, replace the paper.
Paper creased. Replace the paper.
Drum condensation. Perform the drum surface refreshing (See page 1-3-12).
Dirty or flawed drum. Perform the drum surface refreshing (See page 1-3-12).
Flawed drum. Replace the drum unit (See page 1-5-14).
Dirty transfer belt. Clean the transfer belt.
Replace the intermediate transfer unit (See page 1-5-16).
Dirty transfer roller. Clean the transfer roller.
Replace the transfer roller unit (See page 1-5-19).
