Kyocera FS-C5350DN Service Manual

2K8
2-2-8
(4) Other electrical components

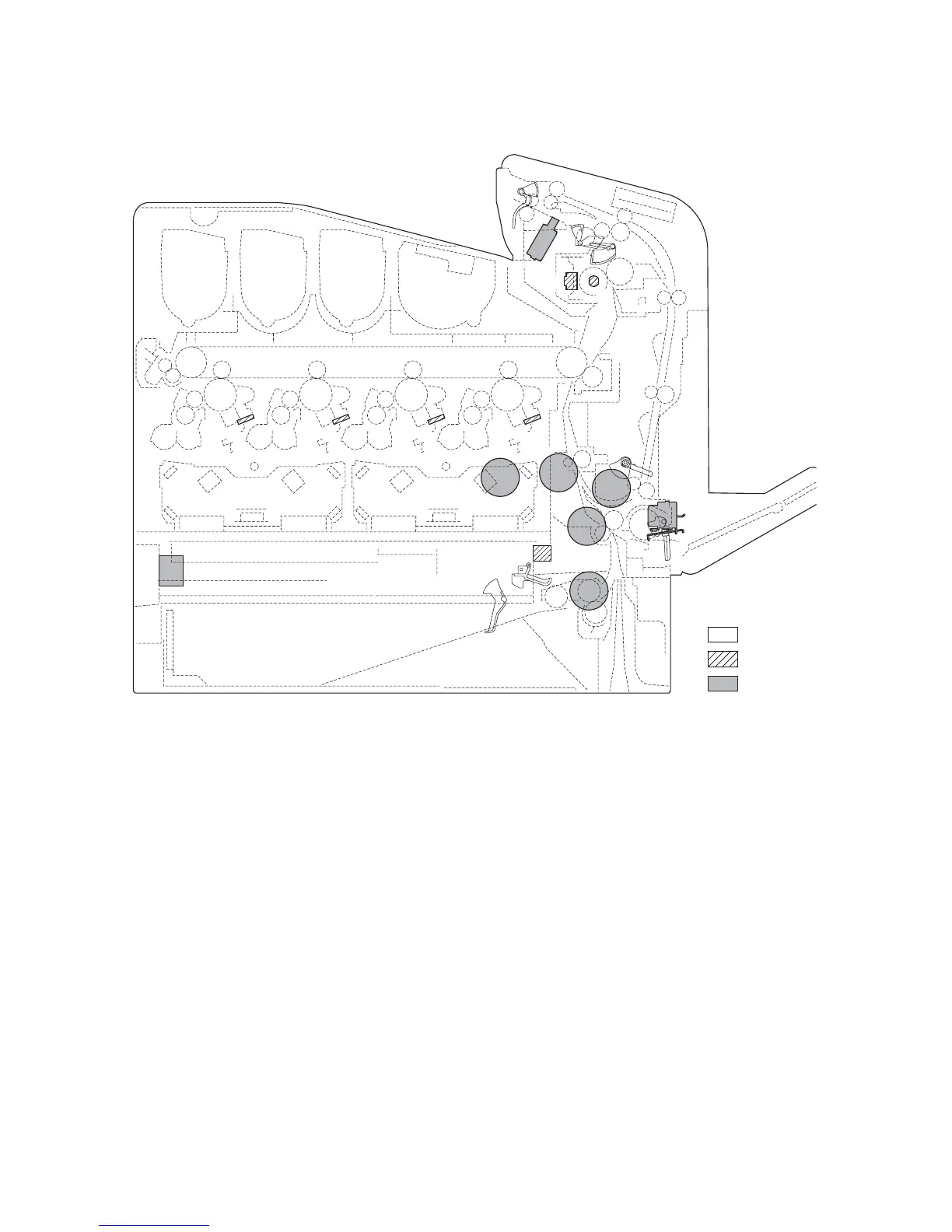

Figure 2-2-4 Other electrical components
1. Paper feed clutch ......................................... Controls the paper cassette paper feed.
2. Registration clutch ....................................... Controls the secondary paper feed.
3. Intermediate clutch....................................... Controls the paper conveying at the conveying section.
4. Duplex clutch ............................................... Controls the paper conveying at the duplex section.
5. Developing clutch......................................... Detaches the drive transmission of developing units other than develop-
ing unit K at the time of B/W printing.
6. MP paper feed solenoid ............................... Controls the MPF bottom plate of the MP tray.
7. Duplex solenoid ........................................... Operates the change guide.
8. ID solenoid ................................................... Operates the ID sensors cleaning system.
9. Eraser lamp M.............................................. Eliminates the residual electrostatic charge on the drum. (Magenta)
10. Eraser lamp C .............................................. Eliminates the residual electrostatic charge on the drum. (Cyan)
11. Eraser lamp Y .............................................. Eliminates the residual electrostatic charge on the drum. (Yellow)
12. Eraser lamp K .............................................. Eliminates the residual electrostatic charge on the drum. (Black)
13. Fuser heater lamp........................................ Heats the heat roller.
14. Fuser thermal cutout .................................... Shuts off the power source to the fuser heater lamp when the heat roller
reaches extremely high temperature.
15. AC inlet ........................................................ Connects the AC power source.
Machine inside
Machine left
Machine right
9
10
11
12
8
1
3
4
6
2
5
13
14
7
15

Kyocera FS-C5350DN Specifications

General

Color	Yes
Maximum resolution	9600 x 600 DPI
Time to first page (black, normal)	8.5 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Internal memory	256 MB
Processor model	PowerPC 750CL
Maximum internal memory	1280 MB
Sound power level (standby)	36 dB
Sound pressure level (printing)	55 dB
Total input capacity	150 sheets
Total output capacity	250 sheets
Maximum input capacity	2150 sheets
Maximum print size	210 x 297 mm
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Safety	GS, TÜV, CE
Power management	AC 220 - 240 V, 50/60 Hz
Custom media sizes	70 x 138 mm - 216 x 356 mm
Networking features	10/100BaseTX
Power consumption (active)	516 W
Compatible operating systems	Windows, Mac OS X 10.2, UNIX, LINUX
Maximum duty cycle	100000 pages per month
Power consumption (standby)	74 W
Power consumption (PowerSave)	8 W

Weight and Dimensions

Dimensions (WxDxH)	345 x 518 x 480 mm
