Kyocera FS-C5350DN Service Manual

2K8
2-1-17
2-1-6 Fuser section
The paper sent from the transfer/separation section is interleaved between the heat roller and the press roller. The heat
roller is heated by the fuser heater lamp, and the toner is fused by heat and pressure and fixed onto the paper because the
press roller is pressed by the fuser press spring. The surface temperature of heat roller is detected by the fuser thermistor
and controlled by the engine PWB. If the fuser section shows extremely high temperature, the power line will be shut off
and the fuser heater lamp is forced to turn off.

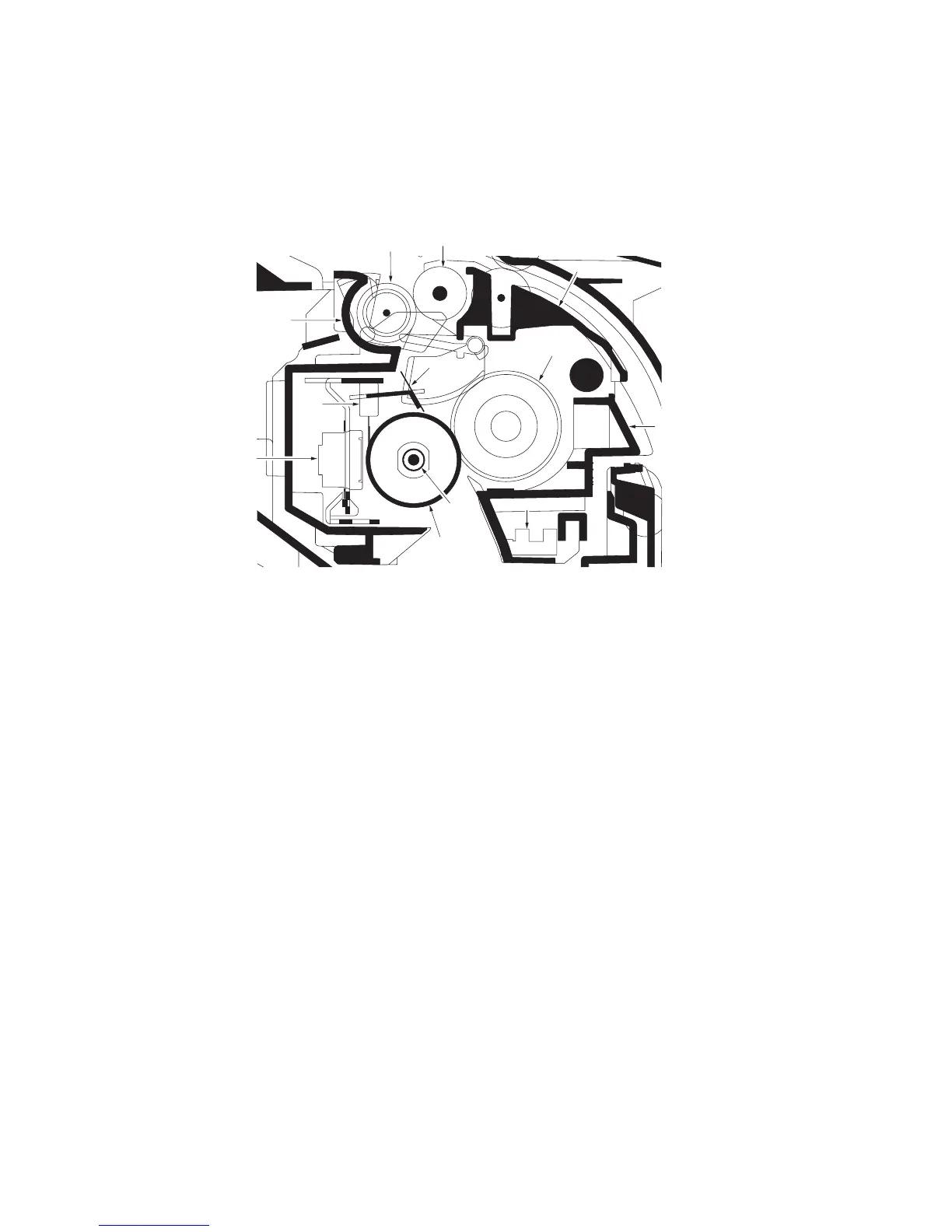

Figure 2-1-18 Fuser section
3
5
4
8
7
1
11
10
12
9
2
6
(1) Upper fuser frame
(2) Lower fuser frame
(3) Heat roller
(4) Press roller
(5) Fuser heater lamp
(6) Fuser thermal cutout
(7) Fuser thermistor
(8) Separators
(9) Paper exit guide
(10) Paper exit roller
(11) Paper exit pulley
(12) Envelope switch

Kyocera FS-C5350DN Specifications

General

Color	Yes
Maximum resolution	9600 x 600 DPI
Time to first page (black, normal)	8.5 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Internal memory	256 MB
Processor model	PowerPC 750CL
Maximum internal memory	1280 MB
Sound power level (standby)	36 dB
Sound pressure level (printing)	55 dB
Total input capacity	150 sheets
Total output capacity	250 sheets
Maximum input capacity	2150 sheets
Maximum print size	210 x 297 mm
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Safety	GS, TÜV, CE
Power management	AC 220 - 240 V, 50/60 Hz
Custom media sizes	70 x 138 mm - 216 x 356 mm
Networking features	10/100BaseTX
Power consumption (active)	516 W
Compatible operating systems	Windows, Mac OS X 10.2, UNIX, LINUX
Maximum duty cycle	100000 pages per month
Power consumption (standby)	74 W
Power consumption (PowerSave)	8 W

Weight and Dimensions

Dimensions (WxDxH)	345 x 518 x 480 mm
