COMPONENT MAINTENANCE MANUAL
AVIATION RECORDERS
Model FA5000
Initial Issue Page 808
Sep. 30/11
Fits and Clearances
23–70–40
Use or disclosure of information on this sheet is subject to
the restrictions on the cover page of this document.
[71.1+/−5.0]
2.3+/−.2
[149.4]
5.88
[123.8+/−.10]
4.88+/−.04
[167.1]
6.58
38999 I/O CONNECTOR
2.8+/−.2
[58.4+/−5.0]
Figure 801. Sheet 2 of 2

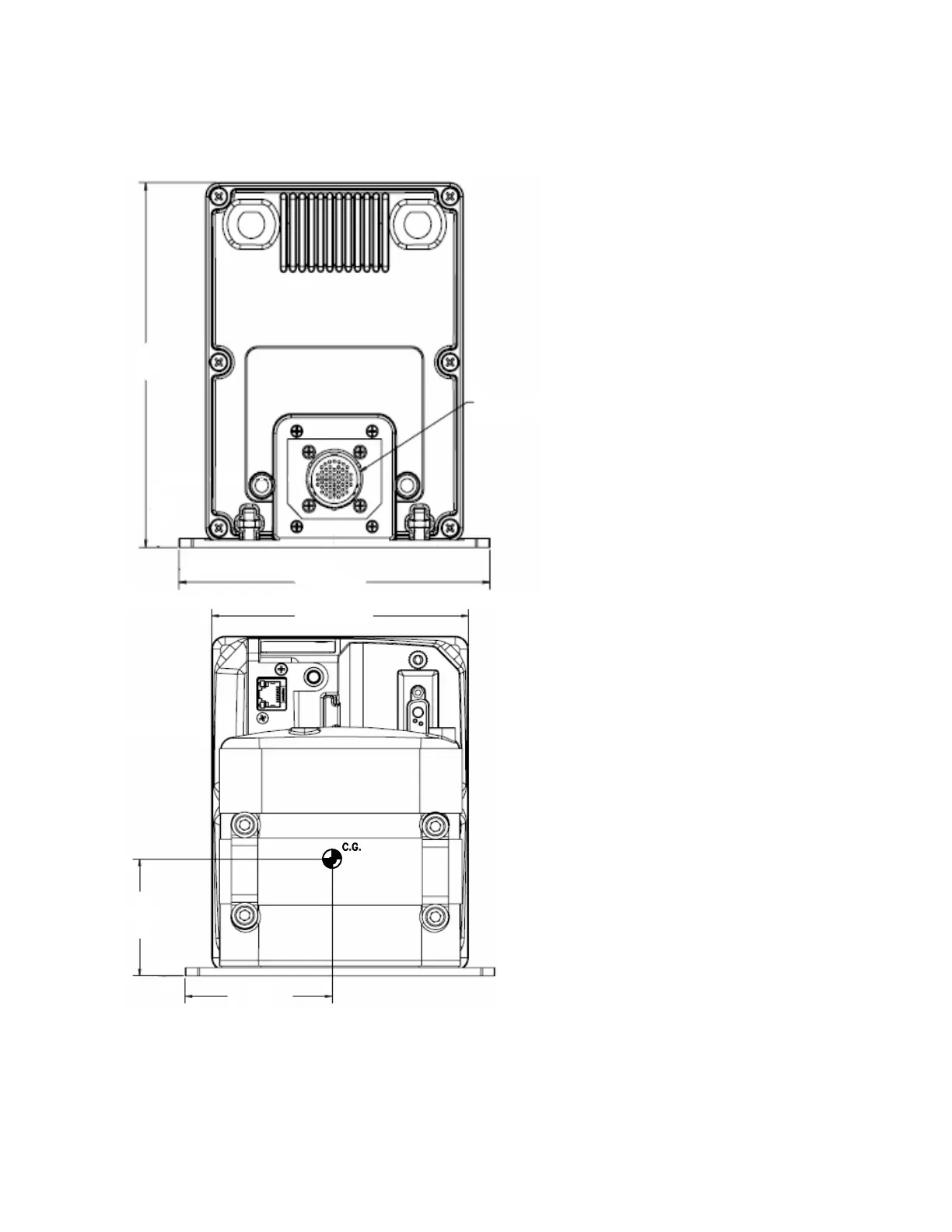

Outline & Dimension Drawing
Model FA5000 Cockpit Voice Recorder/Flight Data Recorder
Rev. 04 Page 808
Mar. 21/14
