COMPONENT MAINTENANCE MANUAL
AVIATION RECORDERS
Model FA5000
Rev. 04 Page 116
Feb. 27/14
Testing & Fault Isolation
23–70−40
Use or disclosure of information on this sheet is subject to
the restrictions on the cover page of this document.

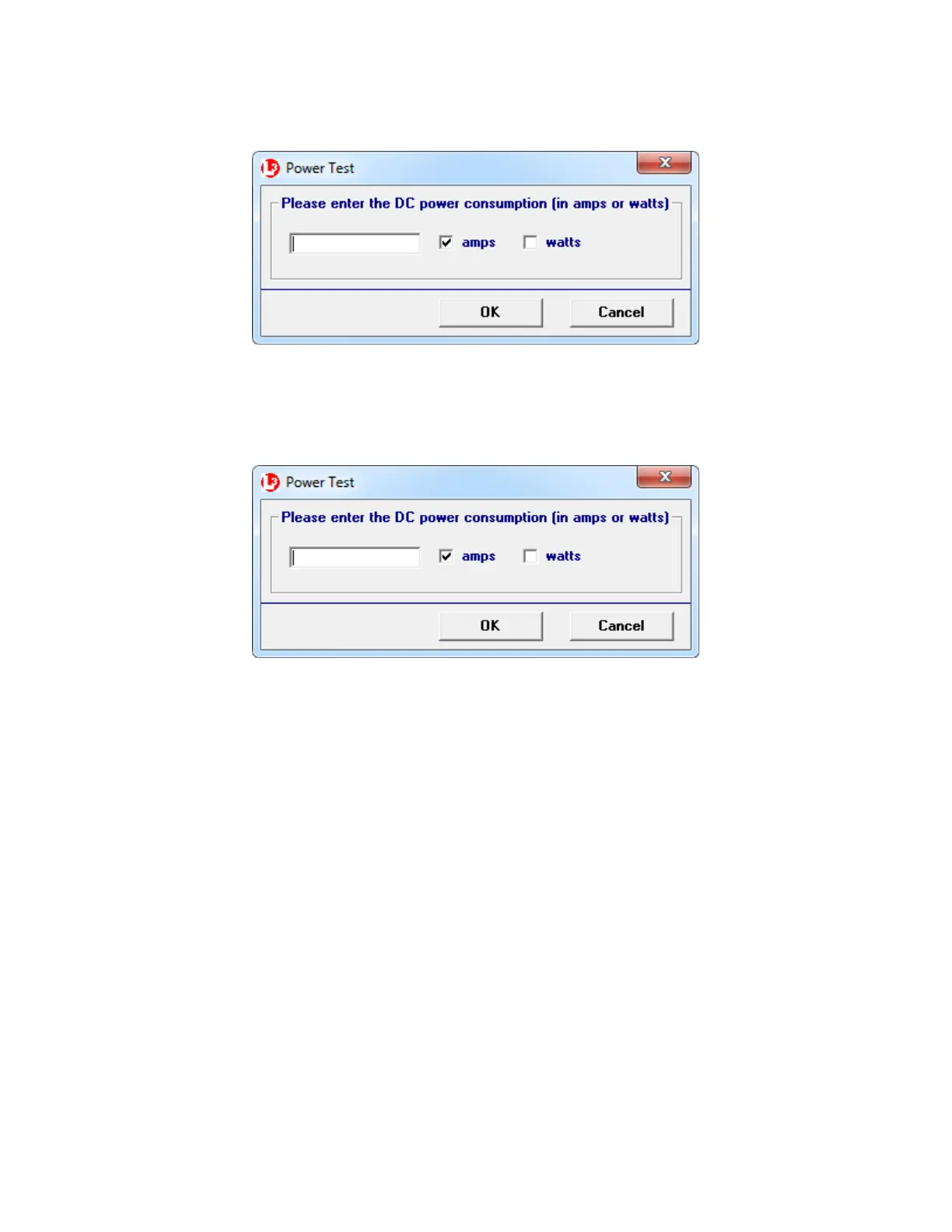

Figure 115. CATS, Power Test Input
(n) Read the current DC amps value from the built-in multimeter on the power
supply or from the inline RMS multimeter. And enter in the value in amps
in window and click on OK.
Figure 116. CATS, CVDR Instruction Window
(o) Observe the Fault History Log window appears. Select Print if you want to
save the fault history or Close to continue.
