Lenze i550 Series Mounting Instructions

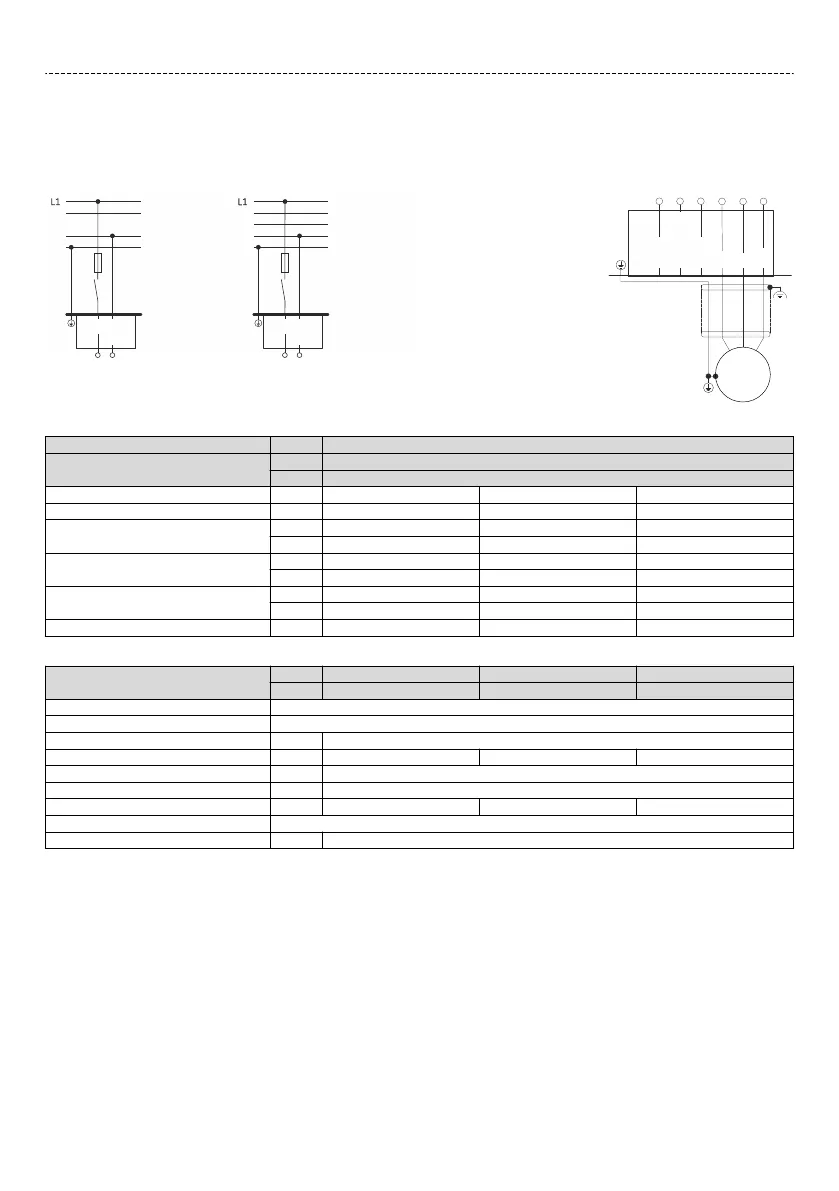

Mains connecon
1-phase mains connecon 120 V
Connecon diagrams
Mains connecon Motor connecon
1/N/ PE
90 V ... 132 VAC
45 Hz ... 65 Hz
F1
Q1
X100
L1
L2/N
PE
N
L2
2/N/ PE
156 V ... 229 VAC
1/N/ PE
90 V ... 132 VAC
45 Hz ... 65 Hz
F1
Q1
X100
L1
L2/N
PE
N
L3
L2
3/N/PE
AC 156 V ... 229 V
-UG
X105
U
V
W
Rb1
Rb2+UG
M
3~
Terminal data
I55APxxxA
Inverter
kW 0.37 ... 1.1
hp 0.5 ... 1.5
Connecon X100 PE X105
Connecon type Screw terminal PE screw Screw terminal
Max. cable cross-secon
mm² 4 6 4
AWG 10 16 10
Stripping length
mm 9 10 9
inch 0.35 0.4 0.35
Tightening torque
Nm 0.5 2 0.5
Ib-in 4.4 18 4.4
Tools required 0.6 x 3.5 Torx 20 0.6 x 3.5
Fusing data
Inverter
kW 0.37 0.75 1.1
hp 0.5 1.0 1.5
Operaon without mains choke
Fuse
Characterisc gG/gL or gRL
Max. rated current A 32 32 32
Circuit breaker
Characterisc B
Max. rated current A 32 32 32
Earth-leakage circuit breaker
1-phase mains connecon ≥ 30 mA, type B
Electrical installaon
Mains connecon
1-phase mains connecon 120 V
82

Lenze i550 Series Specifications

General

Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Overload Capacity	150% for 60 seconds
Control Type	Vector control
Communication Interfaces	CANopen, Modbus, Ethernet, PROFIBUS, PROFINET
Safety	STO (Safe Torque Off)
Frequency Range	0 Hz
Cooling Method	Air cooling
Storage Temperature Range	-25°C to +70°C
Input Voltage Range	3-phase 380...480 V AC -15%/+10%
