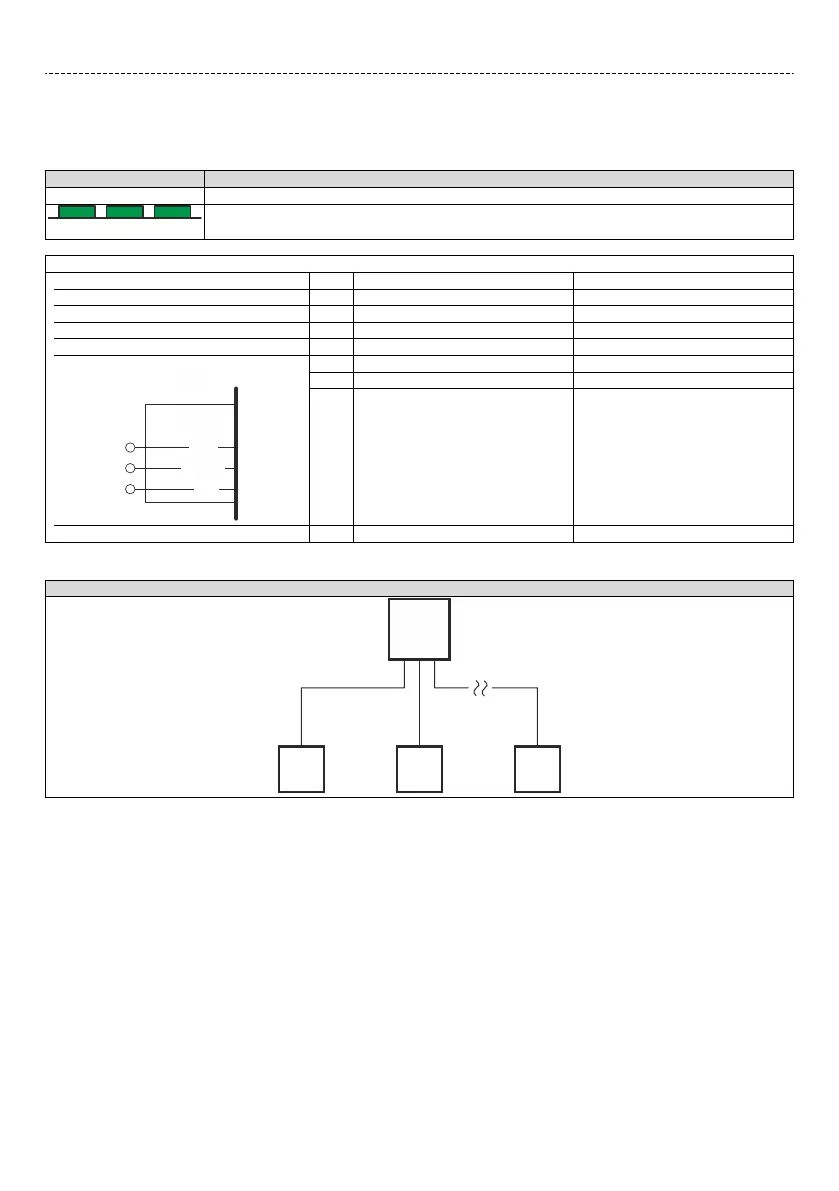

Lenze i550 Series Mounting Instructions

IO-Link
Status display
The LEDs indicate the connecon status to the network:
LED "RUN" (green) Status/meaning
O No data transfer.
Blinking
Acve data transfer.
Informaon
Name IO-Link
Specicaon 1.1
Baud rate 230.4 kbaud (COM 3)
Cycle me 2 ms
Port Class A (type A) I max. 200 mA
Connecon designaon
L-
C/Q
L+
X316
IO-Link
L+ 24 V
C/Q Switching and communicaon line
L- 0 V
Cable Spring terminal, 3-pole Standard cable max. 20 m
Typical topologies
Tree
M
Dn
D2
D1
M Master D Device
Electrical installaon
Networks
IO-Link
95

Lenze i550 Series Specifications

General

Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Overload Capacity	150% for 60 seconds
Control Type	Vector control
Communication Interfaces	CANopen, Modbus, Ethernet, PROFIBUS, PROFINET
Safety	STO (Safe Torque Off)
Frequency Range	0 Hz
Cooling Method	Air cooling
Storage Temperature Range	-25°C to +70°C
Input Voltage Range	3-phase 380...480 V AC -15%/+10%
