Lenze i550 Series Mounting Instructions

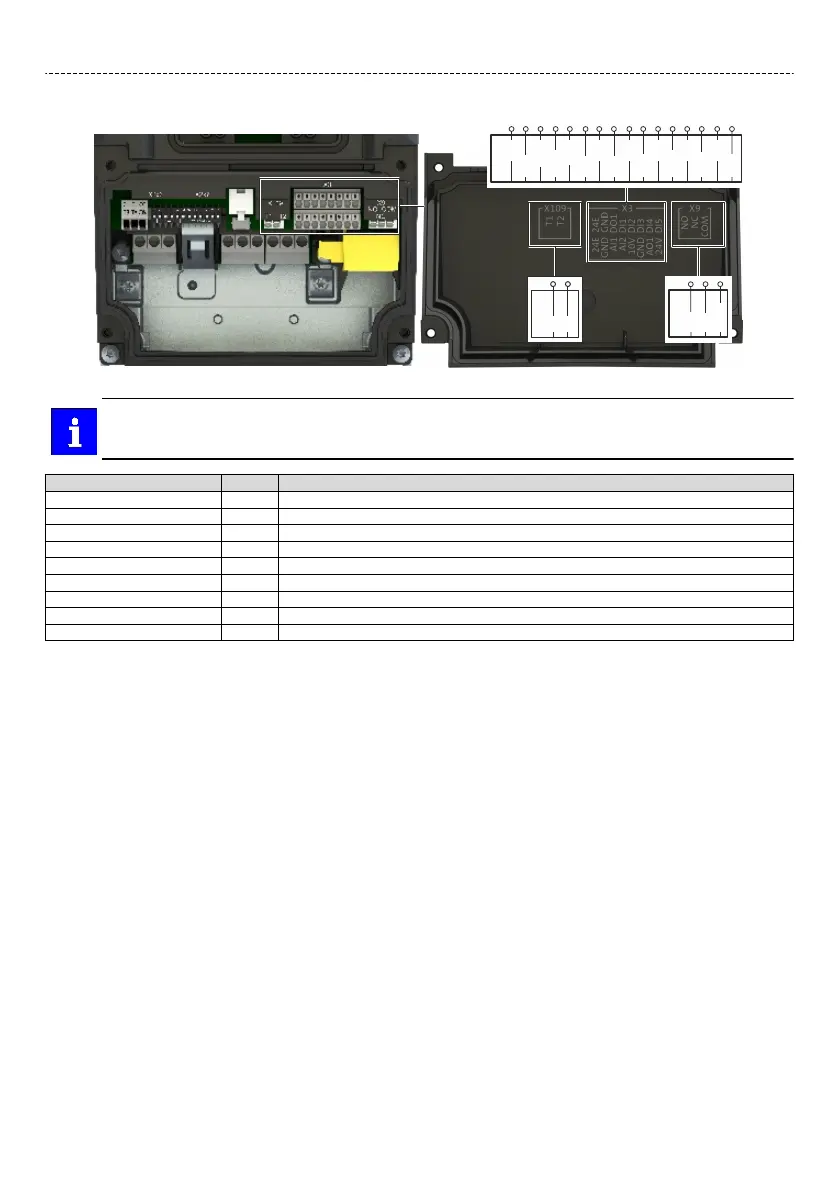

Control connecons
NC
COM
NO
X9
GND
DO1
DI1
DI2
DI3
DI4
DI5
24E
GND
AI1 AI2
10V
GND
AO1
24V
24E
X3
X109
T1
T2
The designaons for the X109, X3 and X9 terminals can be found on the inside of the cover.
Connecon descripon Control terminals
Connecon X3
Connecon type Spring terminal
Max. cable cross-secon mm² 1.5
Max. Cable cross-secon AWG 16
Stripping length mm 9
Stripping length inch 0.4
Tightening torque Nm -
Tightening torque lb-in -
Tools required 0.4 x 2.5
Electrical installaon
Control connecons
88

Lenze i550 Series Specifications

General

Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Overload Capacity	150% for 60 seconds
Control Type	Vector control
Communication Interfaces	CANopen, Modbus, Ethernet, PROFIBUS, PROFINET
Safety	STO (Safe Torque Off)
Frequency Range	0 Hz
Cooling Method	Air cooling
Storage Temperature Range	-25°C to +70°C
Input Voltage Range	3-phase 380...480 V AC -15%/+10%
