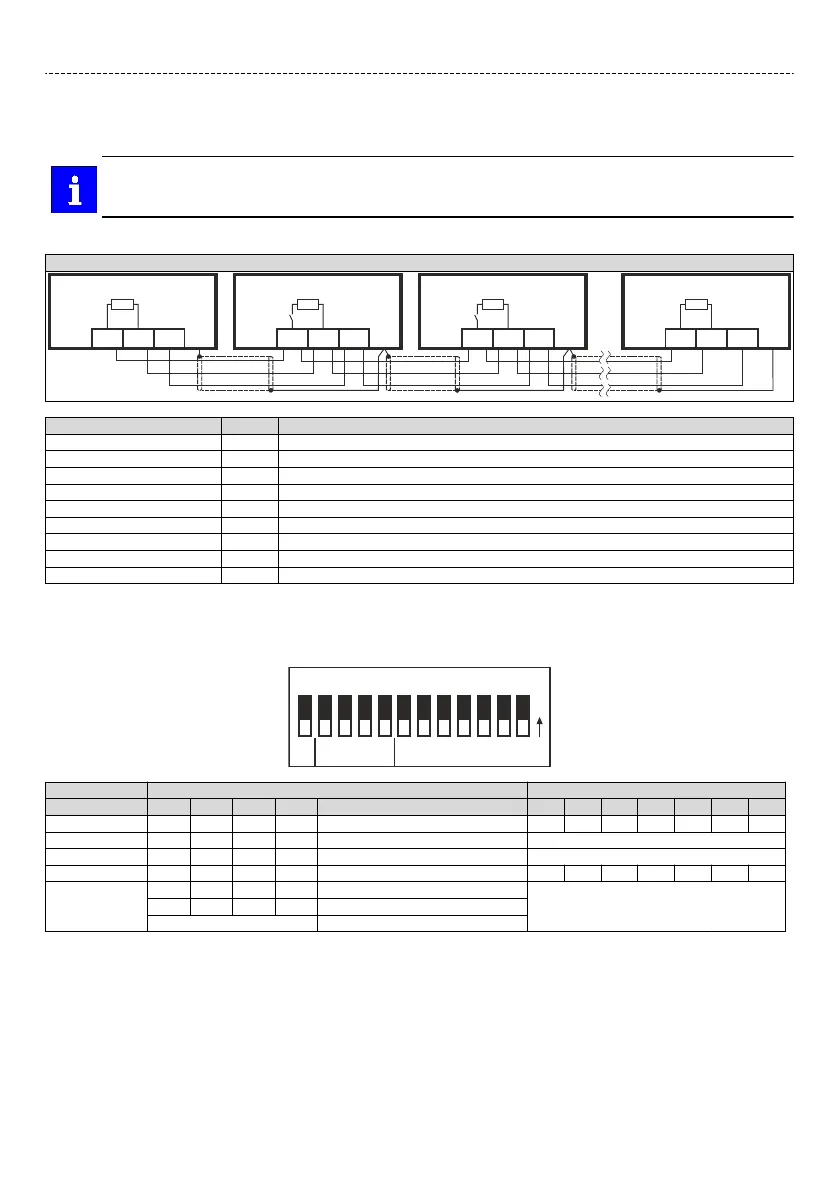

Lenze i550 Series Mounting Instructions

Networks
CANopen
The network must be terminated with a 120 Ω resistor at the rst and last physical node.
Set the "R" DIP switch to ON at these network nodes.
Typical topologies
Line
A1 A2 A3 An
X216 X216 X216 X216
" " " "
120 120 120 120
CGCGCGCG CLCLCLCL CHCHCHCH
R R R R
Connecon descripon CANopen
Connecon X216
Connecon type Spring terminal
Max. cable cross-secon mm² 1.5
Max. Cable cross-secon AWG 16
Stripping length mm 9
Stripping length inch 0.4
Tightening torque Nm -
Tightening torque lb-in -
Tools required 0.4 x 2.5
Basic network sengs
Use the DIP switch to set the node address and baud rate and to acvate the integrated bus terminang
resistor.
Baud CAN Address
O
N
R
64 32 16 8
4 2 1
c b ad
Bus terminaon Baud rate CAN node address
R d c b a 64 32 16 8 4 2 1
OFF OFF ON OFF ON 20 kbits/s OFF OFF OFF OFF OFF OFF OFF
Inacve OFF OFF ON ON 50 kbits/s Value from parameter
ON OFF OFF ON OFF 125 kbits/s Node address - example:
Acve OFF OFF OFF ON 250 kbits/s OFF OFF ON OFF ON ON ON
OFF OFF OFF OFF Value from parameter (500 kbits/s) Node address = 16 + 4 + 2 + 1 = 23
OFF ON OFF OFF 1 Mbit/s
All other combinaons Value from parameter (500 kbits/s)
Bold print = default seng
Electrical installaon
Networks
CANopen
89

Lenze i550 Series Specifications

General

Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Overload Capacity	150% for 60 seconds
Control Type	Vector control
Communication Interfaces	CANopen, Modbus, Ethernet, PROFIBUS, PROFINET
Safety	STO (Safe Torque Off)
Frequency Range	0 Hz
Cooling Method	Air cooling
Storage Temperature Range	-25°C to +70°C
Input Voltage Range	3-phase 380...480 V AC -15%/+10%
