Lenze i550 Series Mounting Instructions

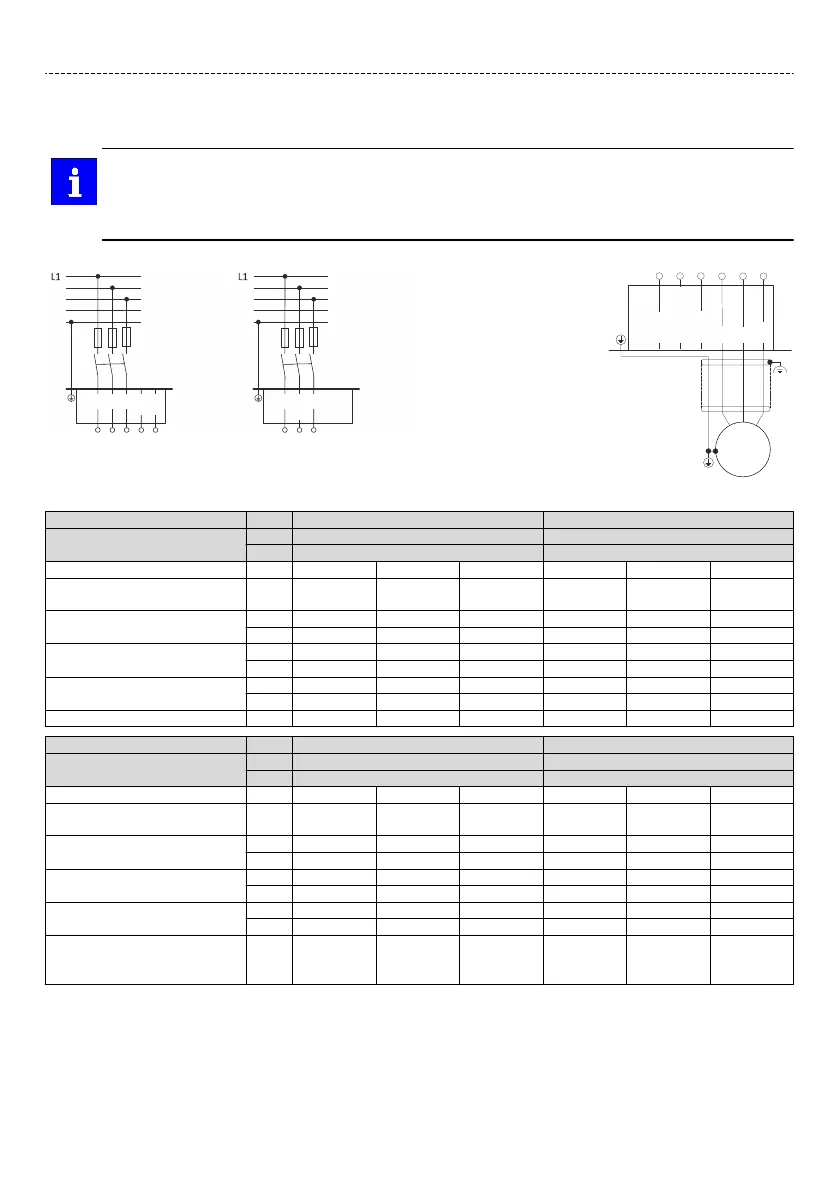

3-phase mains connecon 230/240 V
Connecon diagrams
The inverters I55AxxxxD do not have an integrated RFI lter in the AC mains supply.
In order to meet the EMC requirements according to EN 61800−3, an external EMC lter according
to IEC EN 60939 must be used.
The user must verify that the conformity with EN 61800−3 is fullled.
Mains connecon Motor connecon
3/ PE
170 V ... 264 VAC
45 Hz ... 65 Hz
F1
…
F3
Q1
X100
L1 L2
PE
N
L3
L2
3/N/ PE
208 V ... 240 VAC
L3
n.c.
n.c.
3/ PE
170 V ... 264 VAC
45 Hz ... 65 Hz
F1
…
F3
Q1
X100
L1
L2/N
L3
PE
N
L3
L2
3/N/ PE
208 V ... 240 VAC
-UG
X105
U
V
W
Rb1
Rb2+UG
M
3~
Terminal data
I55APxxxD I55APxxxD
Inverter
kW 0.37 ... 0.75 1.1 ... 2.2
hp 0.5 ... 1.0 1.5 ... 3.0
Connecon X100 PE X105 X100 PE X105
Connecon type
Screw
terminal
PE screw
Screw
terminal
Screw
terminal
PE screw
Screw
terminal
Max. cable cross-secon
mm² 4 6 4 6 6 6
AWG 10 10 10 10 10 10
Stripping length
mm 9 10 9 9 10 9
inch 0.35 0.4 0.35 0.35 0.4 0.35
Tightening torque
Nm 0.5 2 0.5 0.5 2 0.5
Ib-in 4.4 18 4.4 4.4 18 4.4
Tools required 0.6 x 3.5 Torx 20 0.6 x 3.5 0.6 x 3.5 Torx 20 0.6 x 3.5
I55APxxxC I55APxxxC
Inverter
kW 3.0 ... 5.5 7.5 ... 11
hp 4.0 ... 7.5 10 ... 15
Connecon X100 PE X105 X100 PE X105
Connecon type
Screw
terminal
PE screw
Screw
terminal
Screw
terminal
PE screw
Screw
terminal
Max. cable cross-secon
mm² 6 6 6 16 16 16
AWG 8 10 8 6 6 6
Stripping length
mm 9 10 9 11 11 11
inch 0.35 0.4 0.35 0.4 0.4 0.4
Tightening torque
Nm 0.5 2 0.5 1.2 3.4 1.2
Ib-in 4.4 18 4.4 11 30 11
Tools required 0.6 x 3.5 Torx 20 0.6 x 3.5
Screwdriver
0.8 x 4
Phillips head
screwdriver
PZ2
Screwdriver
0.8 x 4
Electrical installaon
Mains connecon
3-phase mains connecon 230/240 V
84

Lenze i550 Series Specifications

General

Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Overload Capacity	150% for 60 seconds
Control Type	Vector control
Communication Interfaces	CANopen, Modbus, Ethernet, PROFIBUS, PROFINET
Safety	STO (Safe Torque Off)
Frequency Range	0 Hz
Cooling Method	Air cooling
Storage Temperature Range	-25°C to +70°C
Input Voltage Range	3-phase 380...480 V AC -15%/+10%
