Lenze i550 Series Mounting Instructions

Basic Safety - STO
DANGER!
With the "Safe torque o" (STO) funcon, no “emergency‑stop" can be executed according to EN 60204−1
without addional measures. There is no electrical isolaon between the motor and inverter and no service
switch or maintenance switch!
Possible consequences: Death or severe injuries
▶
"Emergency stop" requires electrical isolaon, e. g. via a central mains contactor.

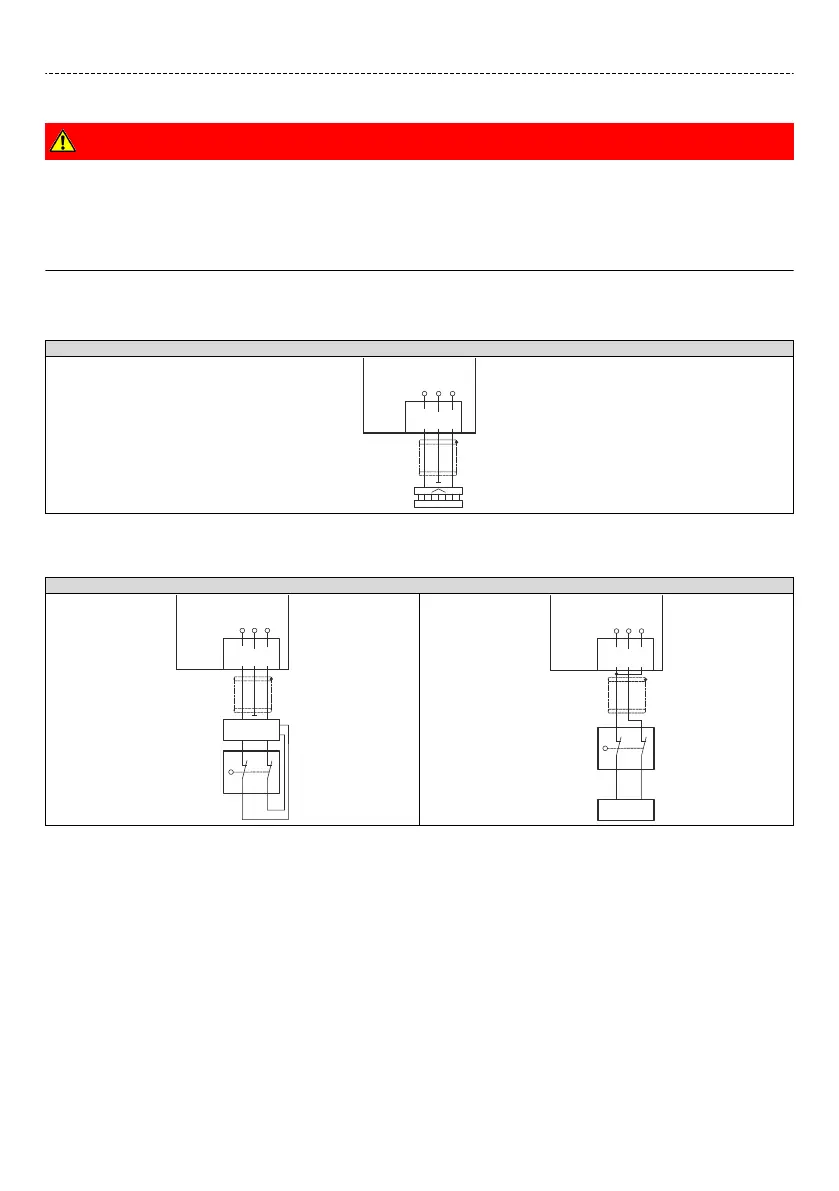

Connecon diagram
Acve sensors
STO
X1
SIA
GS
SIB
"
S1
S1 Acve sensor - example of lightgrid
Passive sensors
STO
X1
SIA
GS
SIB
"
S2
S1
X1
SIA
GS
SIB
"
S1
DC 24 V SELV/PELV
+24 V 0 V
S1 Passive sensor
S2 Safety switching device
S1 Passive sensor
Electrical installaon
Funconal safety
Basic Safety - STO
97

Lenze i550 Series Specifications

General

Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Overload Capacity	150% for 60 seconds
Control Type	Vector control
Communication Interfaces	CANopen, Modbus, Ethernet, PROFIBUS, PROFINET
Safety	STO (Safe Torque Off)
Frequency Range	0 Hz
Cooling Method	Air cooling
Storage Temperature Range	-25°C to +70°C
Input Voltage Range	3-phase 380...480 V AC -15%/+10%
