Mode The Physical Layer (PHY) standard the radio uses:
• IEEE 802.11b/g — 802.11b and 802.11g clients can
connect to the AP.
• IEEE 802.11b/g/n — 802.11b, 802.11g, and 802.11n
clients operating in the 2.4-GHz frequency can
connect to the AP.
• IEEE 802.11n — Only 802.11n clients operating in the
2.4-GHz frequency can connect to the AP.
• IEEE 802.11a — Only 802.11a clients can connect to
the AP. This mode is available only on Radio 2.
• IEEE 802.11a/n/ac — 802.11a, 802.11n, and 802.11ac
clients operating in the 5-GHz frequency can
connect to the AP. This mode is available only on
Radio 2.
• IEEE 802.11n/ac — 802.11n clients and 802.11ac clients
operating in the 5-GHz frequency can connect to
the AP. This mode is available only on Radio 2.
Channel The current operating channel. The channel defines
the portion of the radio spectrum the radio uses for
transmitting and receiving. Each mode offers a number
of channels, depending on how the spectrum is licensed
by national and transnational authorities such as the
Federal Communications Commission (FCC) or the
International Telecommunication Union (ITU-R).
Operational
Bandwidth
The size of the bandwidth, in MHz, the current channel
is using.
To change the radio mode or channel settings, click the Edit link. After you click
Edit, you are redirected to the Radio page.
For information about configuring these settings, see “Radio” on page 34.
Radio Statistics
The Radio Statistics page provides detailed information about the packets and
bytes transmitted and received on the radio (wireless) interface of this access
point.
To view Radio Statistics, click the System Status > Radio Statistics tab.

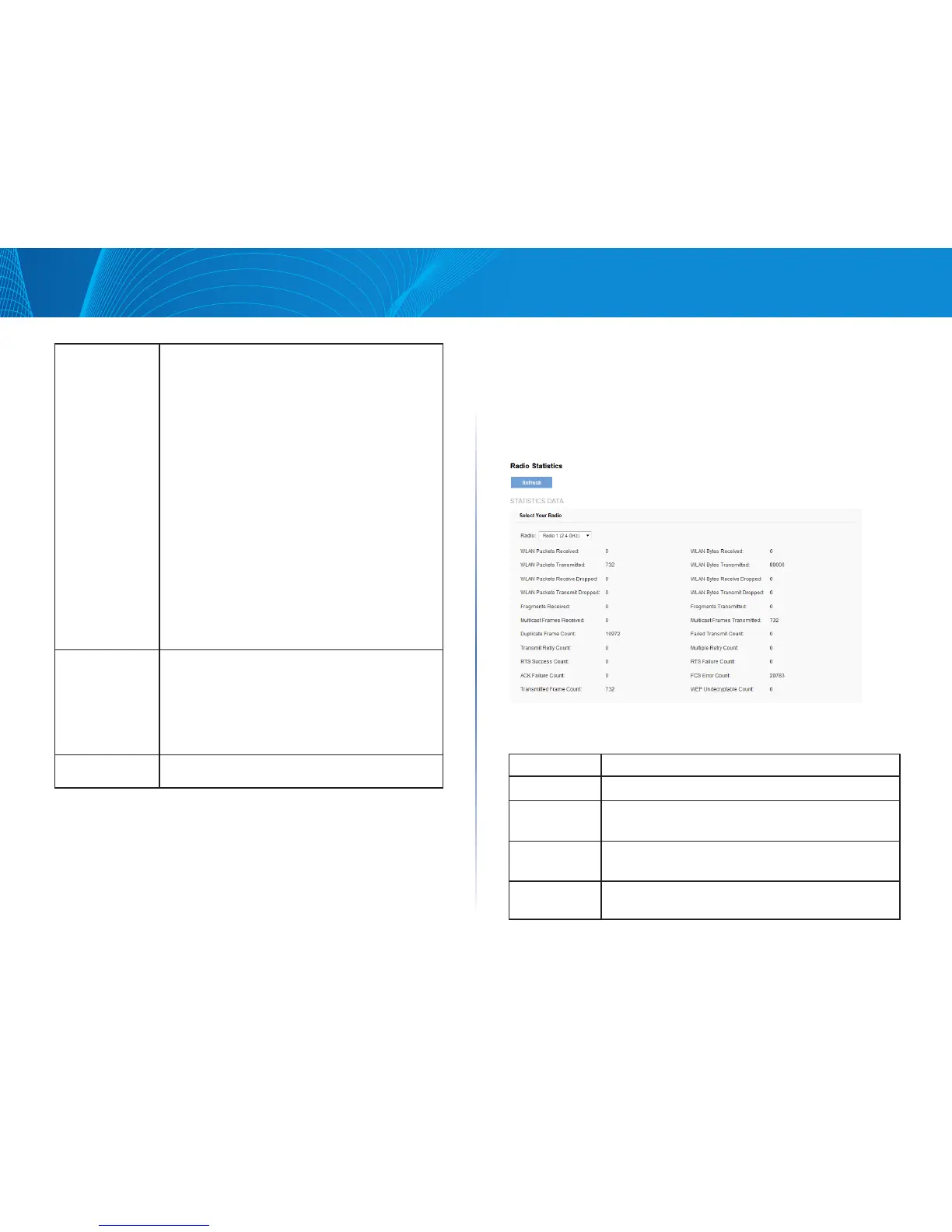

Figure 4: Radio Statistics
The following table describes details about the Radio Statistics information.
Table 6: Radio Statistics Information
Field Description
Radio Choose either radio 1 or radio 2.
WLAN Packets
Received
Total packets received by the AP on this radio interface.
WLAN Bytes
Received
Total bytes received by the AP on this radio interface.
WLAN Packets
Transmitted
Total packets transmitted by the AP on this radio interface.

Linksys LAPAC1750PRO Specifications

General

Modulation	-
VLAN support	Yes
Frequency band	2.4, 5 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1750 Mbit/s
Internal	No
Certification	FCC, CE, IC
Product color	White
Cable lock slot type	Kensington
Ethernet LAN (RJ-45) ports	2
Security algorithms	802.1x RADIUS, WEP, WPA, WPA2
Antenna gain level (max)	5.2 dBi
Input current	2 A
AC input voltage	12 V
Power consumption (typical)	24 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Depth	238 mm
Width	247 mm
Height	43.3 mm
Weight	520 g
