TSPEC Client Associations
The TSPEC Client Association Status and Statistics page provides information
about the TSPEC client data transmitted and received by this access point. Table
10 shows voice and video packets transmitted and received by the association,
along with status information.
The page shows a real-time display of transmit and receive statistics for the
TSPEC clients. All transmit and receive statistics shown are totals since the client
association started.
A TSPEC is a traffic specification that is sent from a QoS-capable wireless client
to an AP requesting a certain amount of network access for the traffic stream
(TS) it represents. A traffic stream is a collection of data packets identified by
the wireless client as belonging to a particular user priority. An example of a
voice traffic stream is a Wi-Fi-certified™ telephone handset that marks its codec-
generated data packets as voice priority traffic. An example of a video traffic
stream is a video player application on a wireless laptop that prioritizes a video
conference feed from a corporate server.
To view TSPEC Client Association statistics, click the System Status > TSPEC Client
Associations tab.

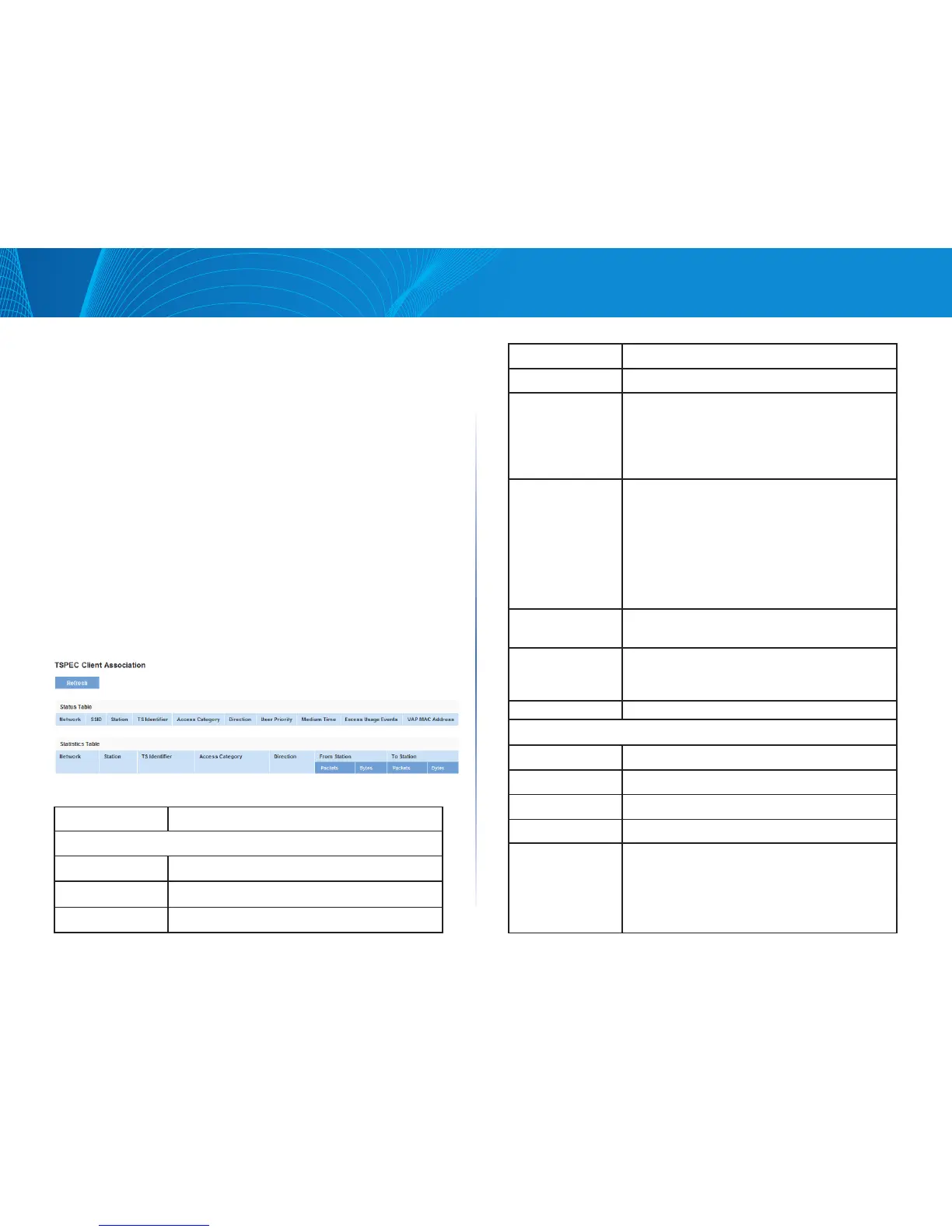

Figure 8: TSPEC Client Associations
Table 10: TSPEC Client Associations
Field Description
Status
Network Radio interface used by the client.
SSID The service set identifier associated with this TS client.
Station Client station MAC address.
TS Identifier TSPEC Traffic Session Identifier (range 0-7).
Access Category TS Access Category (voice or video).
Direction The traffic direction for this TS.
• Uplink
• Downlink
• Bidirectional
User Priority The User Priority (UP) for this TS. The UP is sent with
each packet in the UP portion of the IP header. Typical
values are:
• 6 or 7 for voice
• 4 or 5 for video
The value may differ depending on other priority
traffic sessions.
Medium Time The time that the TS traffic occupies the transmission
medium.
Excess Usage
Events
The number of times the client has exceeded the
medium time established for its TSPEC. Minor,
infrequent violations are ignored.
VAP MAC Address The VAP MAC address.
Statistics
Network Radio interface used by the client.
Station Client station MAC address.
TS Identifier TSPEC Traffic Session Identifier (range 0-7).
Access Category TS Access Category (voice or video).
Direction The traffic direction for this TS. Direction can be:
• Uplink
• Downlink
• Bidirectional
