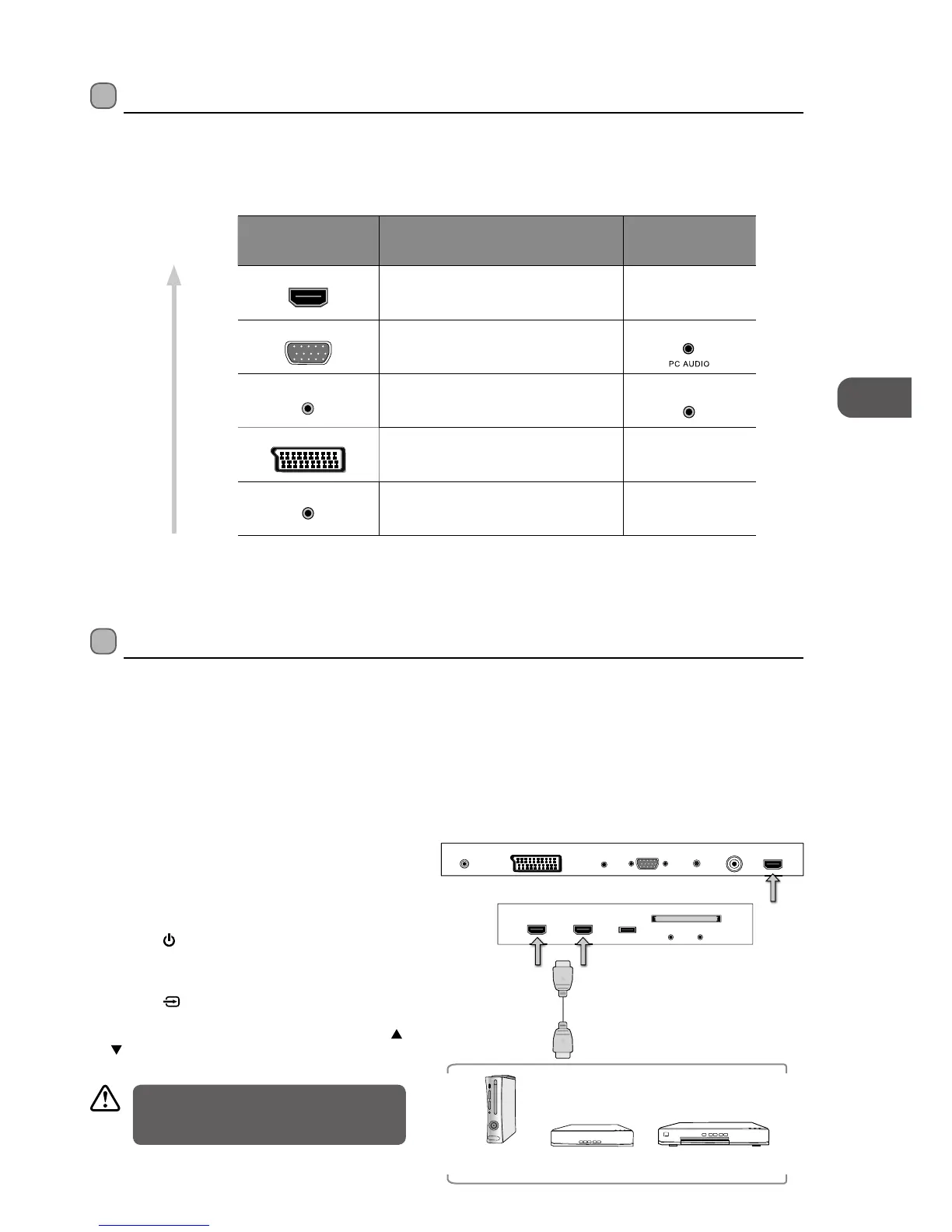

Connecting an AV Device Using an HDMI Cable
• This TV can accept High-Definition Multimedia Interface (HDMI) supports HDCP (High-Bandwidth Digital Content Protection)
Protocol.
• This TV has a total of 3 HDMI input sockets, please make sure the correct input source is selected and corresponds to your
connected HDMI input socket.
• When you connect to the output of an HD ready player (blu-ray disc player, game console, set-top box or computer) switch to
the HDMI function and the TV will automatically detect the resolution used by the HDMI source.
• To get the best picture quality, adjust the blu-ray disc player, game console or set-top box output resolution up to 1920 x
1080p.
1. Use an HDMI cable to connect the TV’s HDMI input
socket to the external AV device’s HDMI output socket.
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the
button on the right bottom panel under
the TV frame or on the remote control to turn on your
TV.
4. Press the
button on the right bottom panel under
the TV frame or the INPUT button on the remote
control to display the INPUT SOURCE List. Use the
buttons to select HDMI 1 / HDMI 2 / HDMI 3 and
then press the OK button to confirm.
Making Video and Audio Connections
Not all AV devices have the ability to connect to a TV, please refer to the owner’s manual of your AV device for compatibility and
connection procedures.
When connecting any external AV device, do not connect the mains cable to the mains socket until all other connections are
complete.
Signal Type
Separate Audio
Connection Required
Composite Video No
Best Video
Performance
Although this TV is able to connect to an
HDMI device, it is possible that some devices
may not operate correctly.
Connections
*1080i/1080p: Although this TV is compatible with a 1080i/1080p input, it is possible that
the screen may not display the exact resolution and consequently the picture
quality will be adjusted accordingly.
HDMI1 (ARC)RFPC AUDIO PC INSCARTHEADPHONE
Digital Audio Output
(Coaxial)
USB
HDMI2 HDMI3
COMMON INTERFACE
AV YPbPr
Rear Right Bottom View of TV
Rear Right Side View of TV
Blu-ray Player / DVD Player /
Recorder
Set-top Box
Game Console
HDMI Cable
(not included)
To Next Page
