Logik L32HE17 User Manual

GB
Connections
18

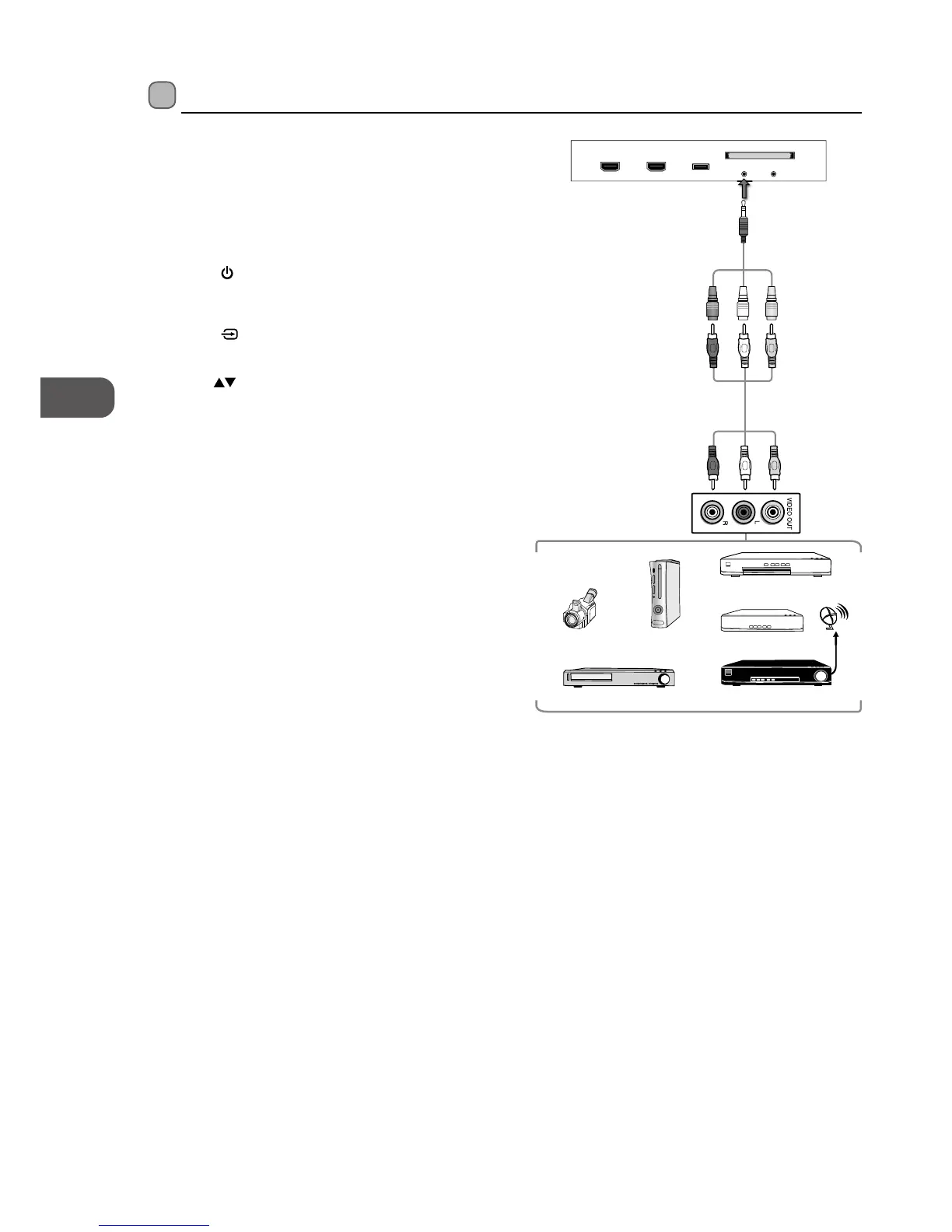

Connecting an AV Device Using Composite Cable
1. Use an AV cable to connect the TV’s AUDIO(L/R)
/ VIDEO input sockets to the external AV device’s
composite audio / video output sockets.
(VIDEO = yellow, Audio Left = white, and
Audio Right = red)
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the
button on the right bottom panel
under the TV frame or on the remote control to
turn on your TV.
4. Press the
button on the right bottom panel
under the TV frame or the INPUT button on the
remote control to display the INPUT SOURCE List.
Use the
buttons to select AV and then press
the OK button to confirm.
Satellite Receiver
Rear Right Side View of TV
USB
HDMI2 HDMI3
COMMON INTERFACE
AV YPbPr
Video Camera
VCR
DVD Player / Recorder
Set-top Box
Game Console
AV Cable
(not included)
Yellow Red White
Yellow (Video) Red (R)
White (L)
Composite
Adapter Cable
(included)
Red (R) White (L)
Yellow (Video)
