Logik L32HE17 User Manual

GB
Connections
17

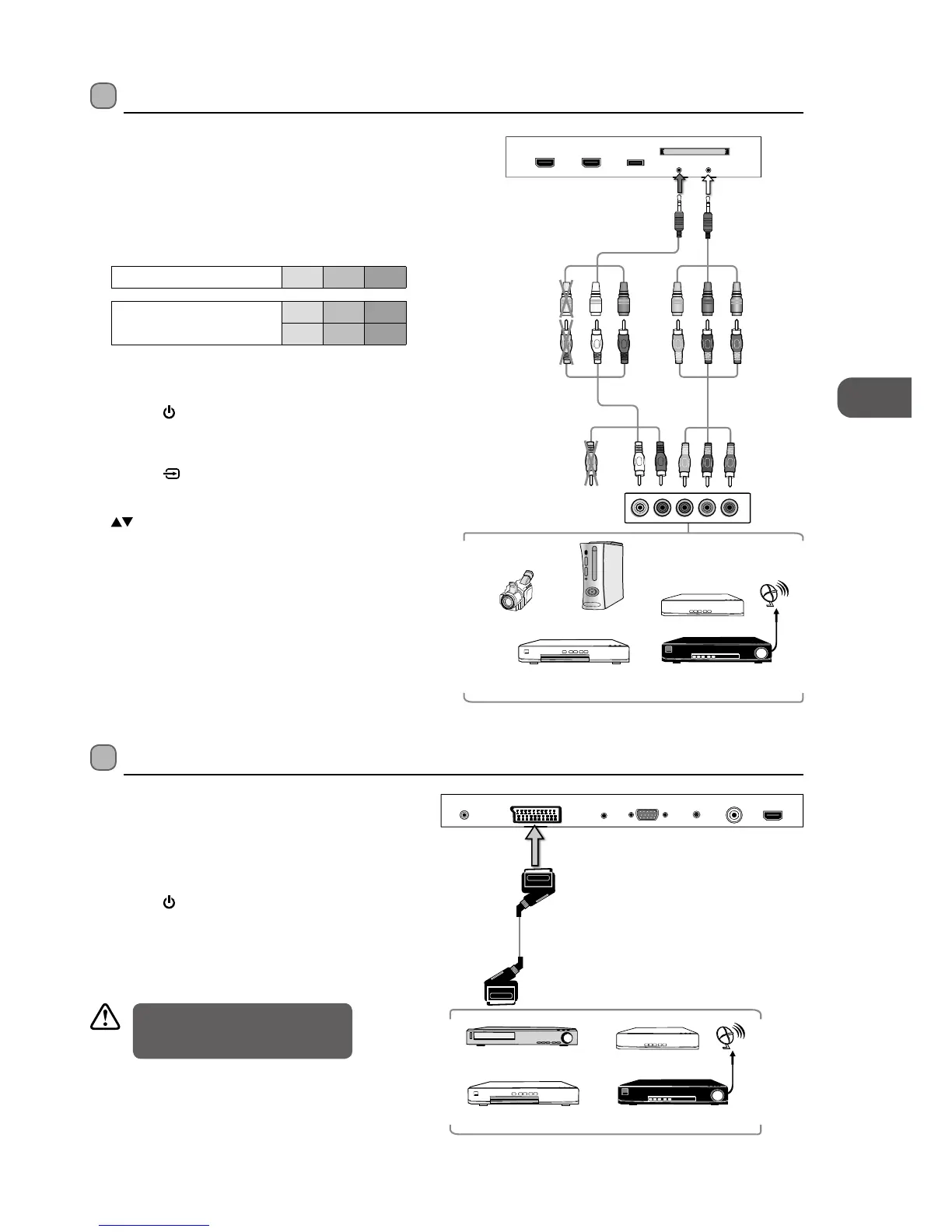

Connecting an AV Device Using a SCART Cable
1. Use a SCART cable to connect the TV’s SCART input
socket to an external AV device’s SCART output
socket.
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the
button on the right bottom panel under
the TV frame or on the remote control to turn on your
TV.
4. The TV will change the input source to SCART
automatically once the AV device is switched on.
Connecting an AV Device Using a Component (YPbPr) Cable
1. Use a component cable to connect the TV’s YPbPr
input sockets to an external AV device’s component
output sockets.
2. Use an AV cable to connect the TV’s AUDIO(L/R) input
sockets to the external AV device’s component audio
output sockets. (Audio Left = white, and Audio Right
= red)
Component port on the TV Y Pb Pr
Video output ports on DVD
player
Y Pb Pr
Y Cb Cr
3. Plug the connected devices into the mains socket
before switching on the TV.
4. Press the
button on the right bottom panel under
the TV frame or on the remote control to turn on your
TV.
5. Press the
button on the right bottom panel under
the TV frame or the INPUT button on the remote
control to display the INPUT SOURCE List. Use the
buttons to select YPbPr and then press the OK
button to confirm.
Rear Right Side View of TV
USB
HDMI2 HDMI3
COMMON INTERFACE
AV YPbPr
Satellite Receiver
Video Camera
Blu-ray Player / DVD Player /
Recorder
Set-top Box
Game Console
COMPONENT
OUT
Y
Pr
Pb
L
R
AV Cable
(not included)
Yellow Red White
Yellow (Video) Red (R)
White (L)
Composite
Adapter Cable
(included)
Red (R) White (L)
Yellow (Video)
Component
Cable
(not included)
Pb/Cb
Pr/Cr
Y
Pb/Cb Pr/Cr Y
Component
Adapter Cable
(included)
Blue (Pb/Cb) Red (Pr/Cr) Green (Y)
Rear Right Bottom View of TV
HDMI1 (ARC)RFPC AUDIO PC INSCARTHEADPHONE
Digital Audio Output
(Coaxial)
SCART Cable
(not included)
Satellite Receiver
VCR
DVD Player / Recorder
Set-top Box
Ensure the both side of SCART plugs
are fully plugged to the TV and the
connected devices.
