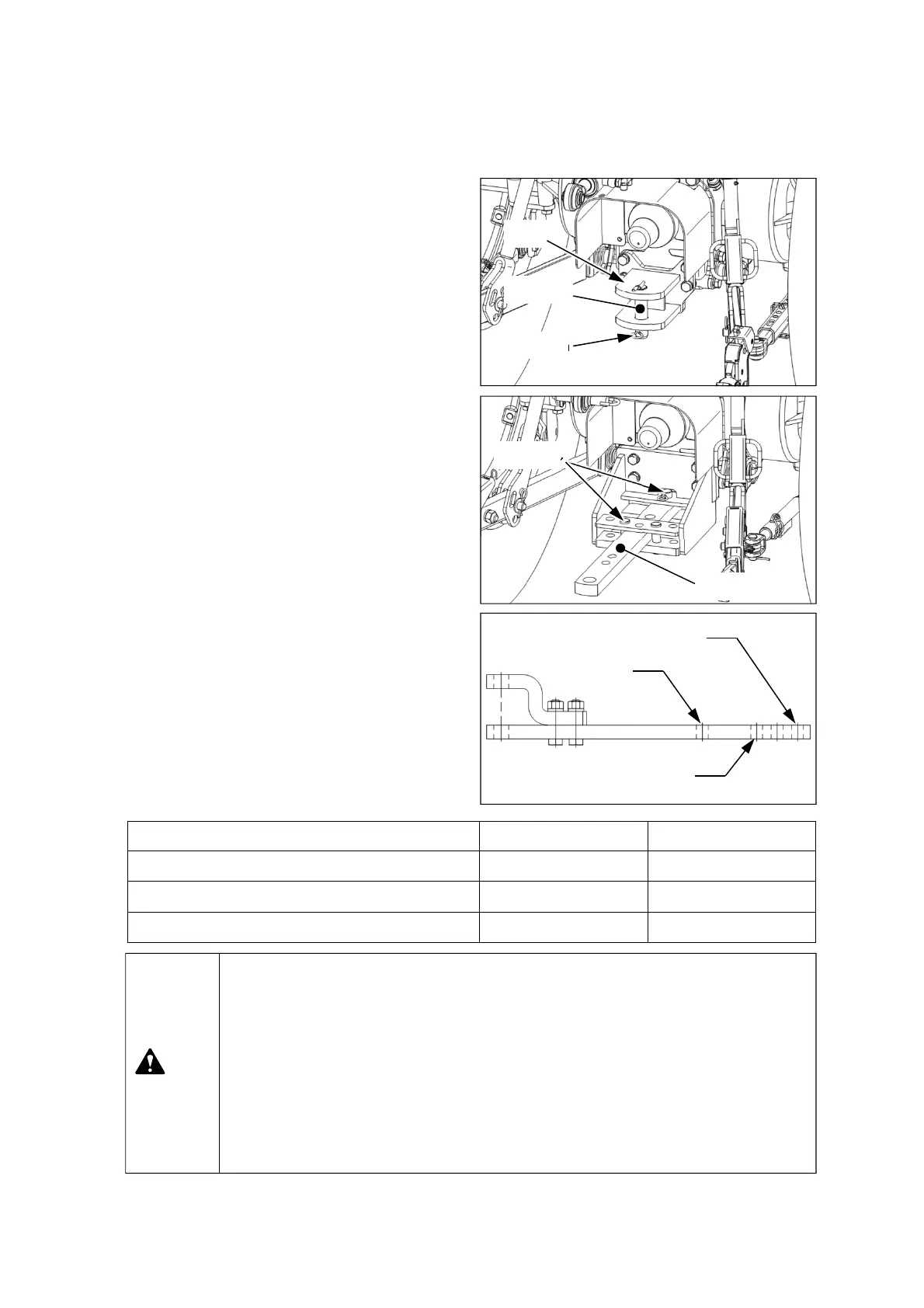

① Hitch
 Vertical load: 1500kg (3307lbs)
 Horizontal load: 5 tonnes (11023lbs)
② Drawbar (w/clevis)
 It is used to connect a two-axle towed equipment.
 It is available to adjust the length of the drawbar
after removing snap pin and lock-pin in the right
figure. After adjusting, assemble the pins firmly.
 Vertical load: 450kg (When pulled) (992lbs)
1125kg (When pushed) (2480lbs)
 Horizontal load: 4 tonnes (8814lbs)
Hitch
Snap pin
Hitch pin
Spare hole
When pushed
When pulled
Drawbar
(3) Hitch and Drawbar (optional)
 When attaching towed equipment, use an
approved hitch or drawbar. DO NOT use the 3-
point linkage or other parts. If so, the tractor
could be overturned.
 When attaching/detaching towed equipment, be
sure to check the pins locked in place correctly.
 DO NOT exceed the maximum permissible
vertical and horizontal load of the couplings.
Hitch Drawbar
Unbraked towable mass N/A N/A
Inertia-braked towable mass 5000kg (11023 lb)
4000kg (8814 lb)
Hydraulic & Pneumatic braked towable mass N/A N/A
 The maximum permissible towable mass is
depending on the brake system type on the
towed equipment as below. Check the brake
system of your towed equipment.
Lock pins
▶ Vertical loads on the coupling point of the drawbars, it may vary depending on the
tire load rating. Consult your authorized local dealer.
▶ Use always the drawbar or hitch for pulling work. DO NOT use the 3-point linkage,
rear axle or other parts. If so, the tractor could be overturned.
▶ When attaching/detaching towed equipment, apply the parking brake and stop the
engine before applying the locking pins manually.
▶ Before transporting equipment on public roads, make sure you comply with your
local traffic regulation.
Caution
