4 -33
1) Loosen the locking nut on both sides.
2) Connect the front hook of the tractor to the
suitable hoist by using a specified wire. And, lift
up the front axle off the ground sufficiently.
3) Lift up one side of the front axle fully and turn the
steering wheel to the left and right with checking
that the clearances between tires and other parts
are over 20mm (0.8 in.) at least.
4) At this time, set each steering stopper of the both
sides to be contacted with the cast. Check all the
possible interferences by combinations of the
steering and oscillation of the front axle.
5) Tighten the locking nuts of the both sides.
(8) Adjusting Steering Angle
The steering angle must be checked or adjusted in case of;
- If the front wheel track is adjusted.
- When the front tires are replaced with new one having bigger diameter or width.
- When installing a front equipment such as front-end loader.
Comply with the following instructions.
▶DO NOT shorten the length of the steering stopper rather than factory condition.
If the stopper does not contact to the cast at maximum steering condition, it can
cause damage to the steering cylinder or linkage.
Notice

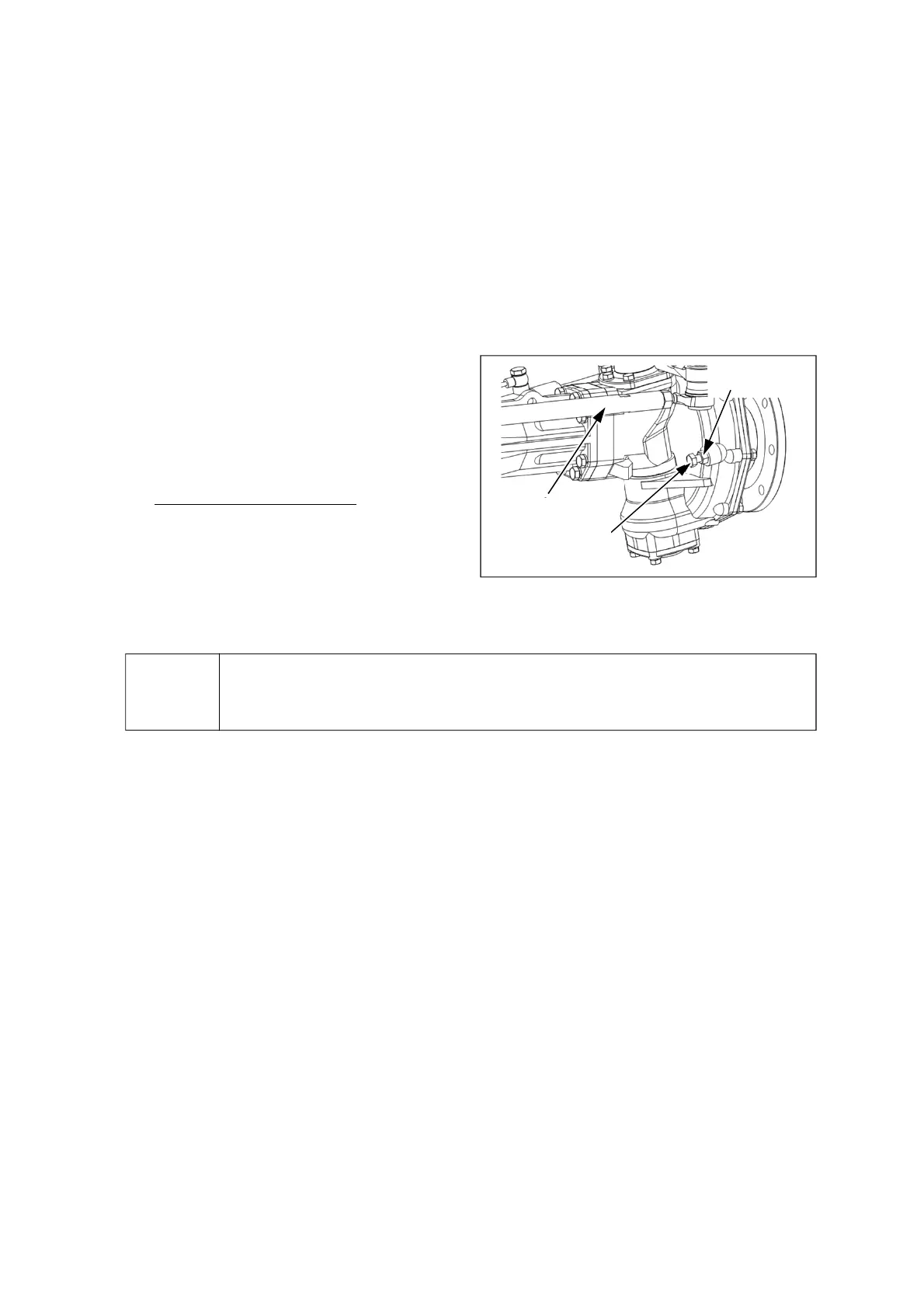

Steering stopper
Locking nut
Tie-rod
