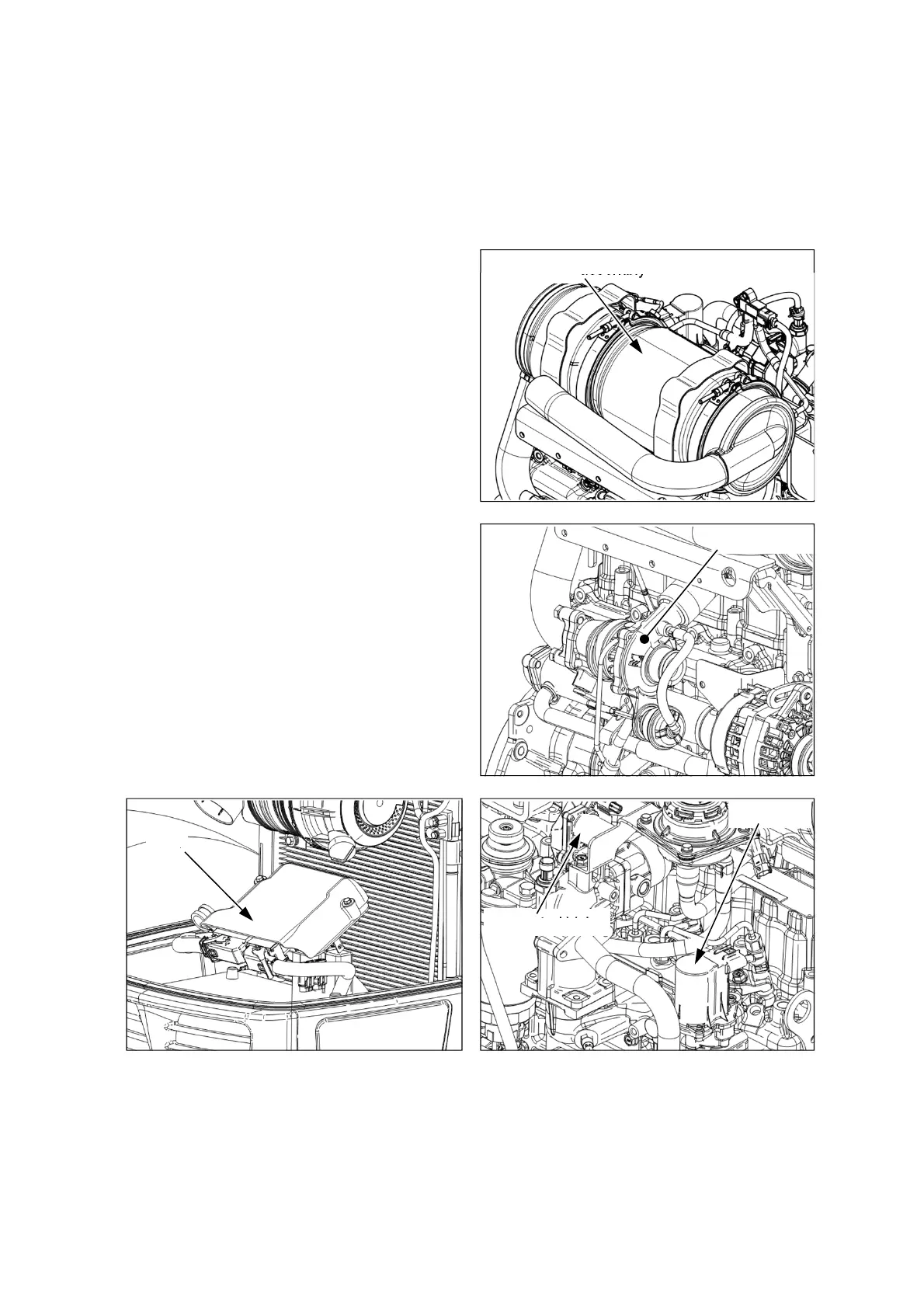

5-14. Every 3000hr check
(1) Cleaning
Emission related
parts
The following
items are
major eng
ine
emission
related
parts.
These items
are
checked
and
cleaned
periodica
lly. But
it is performed
by
special eng
ine
service
experts.
Contact
your
authorized local
dealer
for check.
-. Fuel injector
-. DOC&DPF assembly
-. Turb
ocharger
-. ECU
-. EGR valve
-. Sensors
-. Air Control Valve
(ACV)
DOC&DPF asse
mbly
ECU
EGR valve
Air Control
Valve
Turbochar
ger
206
208
Table of Contents
Table of Contents
11
General Notices for Safety
17
Note to the Owner - General Information
17
Before Using the Tractor
19
Manual Scope and Required Training Level
21
Metric and Imperial Units Abbreviations
23
Product Identification Number (PIN)
25
Operator's Manual Storage
27
Tractor Orientation
28
Safety Precautions (Read this for Safety before Using)
29
Notices before Using the Tractor
29
Notices When Starting Engine
33
Notices While Operating/Using the Tractor
34
Notices When Connecting Implement
36
Notices When Towing the Tractor
37
Notices When Transporting the Tractor
37
Notices When Servicing the Tractor after Work
38
Notices When Handling Diesel Fuel
39
Notices When Leaving the Tractor
40
Notices Relating to Toxic Substances
40
Tractor Stability
41
Ecology and the Environment
44
Symbols
46
Safety Decals
47
Instructional Decals
55
Long-Term Storage
60
Preparation for Storage
60
Check & Maintenance During Storage
61
Preparation for Reuse
62
Instruction for Safe Operation
63
The Name of each Part
63
Boarding and Exiting the Tractor
65
Boarding the Tractor
65
Seat Adjustment
66
Seat Belt
68
Tilting Steering Wheel
69
Ventilation (Cabin Only)
69
Exiting the Tractor
70
Safety Device
71
Hood (Bonnet)
71
Fender
71
PTO Safety Cover and Protection Cap
71
Roll-Over Protective Structure (ROPS)
72
Instruments and Controls
75
Instrument Panel and Front Controls
75
Instrument Panel
76
Key Switch
84
Turn Signal Light Switch
85
Light Switch
86
Hazard Warning Light Switch
87
Horn Switch(Optional)
88
Grille Work Light Switch
88
DPF Switch
89
PTO Switch
94
PTO Mode Switch (Optional)
94
Shuttle Lever (Synchro-Shuttle)
95
Throttle Lever
95
Throttle Pedal
96
Clutch Pedal
96
Brake Pedals
97
Beacon Lamp Switch (if Fitted)
98
Right-Hand Controls and Cabin Pillar
99
Main Gear Shift Lever
99
Creeper Gear Lever (if Fitted)
100
Differential Lock Pedal
100
Work Light Switch
101
Window Wiper&Washer Switch (Cabin Type)
102
Electrical Power Outlet Socket (Cabin Only)
103
Indoor Light (Cabin Only)
103
Audio Player (Cabin Only) (if Fitted)
103
ESC Main Switch
104
ESC Speed Up/Down Switch
105
ESC Mode Select Switch
105
Left-Hand Controls
106
Range Gear Shift Lever
106
PTO Gear Lever (Optional)
107
Four Wheel Drive Lever (4WD)
107
Parking Brake Lever
108
Power Shuttle System (PSS) (if Fitted)
109
Power Shuttle Lever (PSS)
109
Clutch Pedal (PSS)
111
PSS Mode Select Switch (PSS)
112
Error Diagnosis Code (PSS)
113
Hydraulic System
114
Safety Precautions
114
Steering System
115
Hydraulic Lift Control (MHL)
115
Remote Control Lever and Quick Coupler (Optional)
118
Joystick Lever (Optional)
120
Auto Lift Control (MHL, if Fitted)
121
Hydraulic System Diagram
122
Operation and Work
123
How to Handle New Tractor
123
Check Points
123
Notices in Handling New Tractor (Engine Brake-In Procedure)
123
Engine Start and Stop
124
Engine Start
124
Start in Cold Weather
125
Engine Stop
126
How to Drive and Stop
127
Transmission Warm-Up in Cold Weather
127
How to Drive
128
Changing Speed
130
Emergency Stop
130
Stopping Tractor
131
Parking
132
Handling Turbocharger (if Fitted)
132
Transport on Public Roads
133
Safety Rules When Driving Tractor on the Roads
133
Light Operation
134
7-Pole Connector (Optional)
136
Notices When Towing the Tractor
137
Notices When Transporting the Tractor
139
Field Operations
140
Rear 3-Point Linkage
140
Power Take-Off (PTO) Operation
144
Hitch and Drawbar (Optional)
146
Technically Maximum Permissible Mass
147
Tires and Load Capacity
148
Adjusting Wheel Tracks and Tire Replacement
149
Using Front-End Loader (if Fitted)
152
Adjusting Steering Angle
155
Recommended Maximum Specification of Implements
156
Ballasting Weights (Optional)
157
Working in Hazardous Area
160
Driving Speed
161
Lubrication and Maintenance
163
General Information
163
Tightening Torque for Normal Assembly
164
Standard Torque Data for Hydraulics
166
General Specification - Diesel Fuel
169
Biodiesel Fuel
170
Refueling the Tractor
172
Change Engine Coolant to Organic Acid Technology (OAT) Coolant
173
Access for Maintenance
174
Maintenance Chart
175
Lubricants and Capacity
177
First 50 Hour Check
178
When the Warning Indicator Lights
179
Drain Water from Fuel Filter
179
Hydraulic Oil Pressure Indicator (Optional)
180
Engine Oil Pressure Indicator
180
Battery Charging Indicator
180
Check before Starting (Daily Check)
181
Engine Oil
181
Fuel Tank
182
Instrument Panel & Indicators
182
Turn Signal Lights, Lights and Horn
183
Engine Coolant
184
Air Cleaner (Dry Type)
184
Cleaning of Radiator and Radiator Screen
185
Tightening State of Bolts and Nuts of each Part
186
Adjustment of Clutch Pedal Play (Mechanical Type)
187
Adjustment of Brake Pedal Play
188
Every 50 Hour Check
189
Lubricating Grease Nipple
189
Cleaning of Radiator and Radiator Screen
189
Checking Transmission Oil
190
Checking Front Axle Oil
190
Battery Check
191
Air Cleaner (Dry Type)
191
Hydraulic Hoses and Leakage
191
Cleaning Cabin Air Filters
191
Every 100 Hour Check
192
Checking and Adding Engine Oil
192
Every 300 Hour Check
193
Replacing Engine Oil and Filter
193
Replacing Hydraulic Oil Filter
194
Tension Adjustment of Fan Belt
195
Toe-In
195
Cleaning Fuel Tank
196
Every 500 Hour Check
197
Replacing Fuel Filter Cartridge
197
Replacing Air Cleaner Element (Dry Type)
198
Replacing Cabin Air Filters
199
Every 600 Hour Check
200
Changing Front Axle Oil
200
Changing Transmission Oil
201
Every 1000Hr or 1-Year Check
202
Adjusting Engine Valve Clearance
202
Checking Nozzle Injection Pressure
202
Every 1500Hr or 2-Year Check
203
Replacement of Engine Coolant
203
Cleaning Emission Related Parts
206
Every 3000Hr Check
207
Cleaning Emission Related Parts
207
General Maintenance (When Required)
208
Air-Bleeding from Fuel System
208
Fuse & Main Fuse
211
Battery Handling and Notices
213
Alternator and Drive Belt - Check
217
Tail/Brake Light Bulb and Turn Signal Light Bulb- Replace
218
Headlight Bulb - Replace
220
Touch-Up Paint Color
221
Troubleshooting
222
Air Conditioning System
227
The Name of each Part of Cooling and Heating System
227
How to Use Air Conditioner and Heater
228
How to Operate Air Conditioner and Heater
228
Air Direction Control
228
Every 6 Month Check
229
Checking Refrigerant Amount
229
Cleaning Condenser and Radiator Screen
229
Checking Leakage
229
Belt Tension Adjustment
230
Cleaning and Replacing Cabin Air Filters
230
Every Year Check
231
Compressor Check
231
Control Switch Check
231
Troubleshooting
232
System Diagram
234
