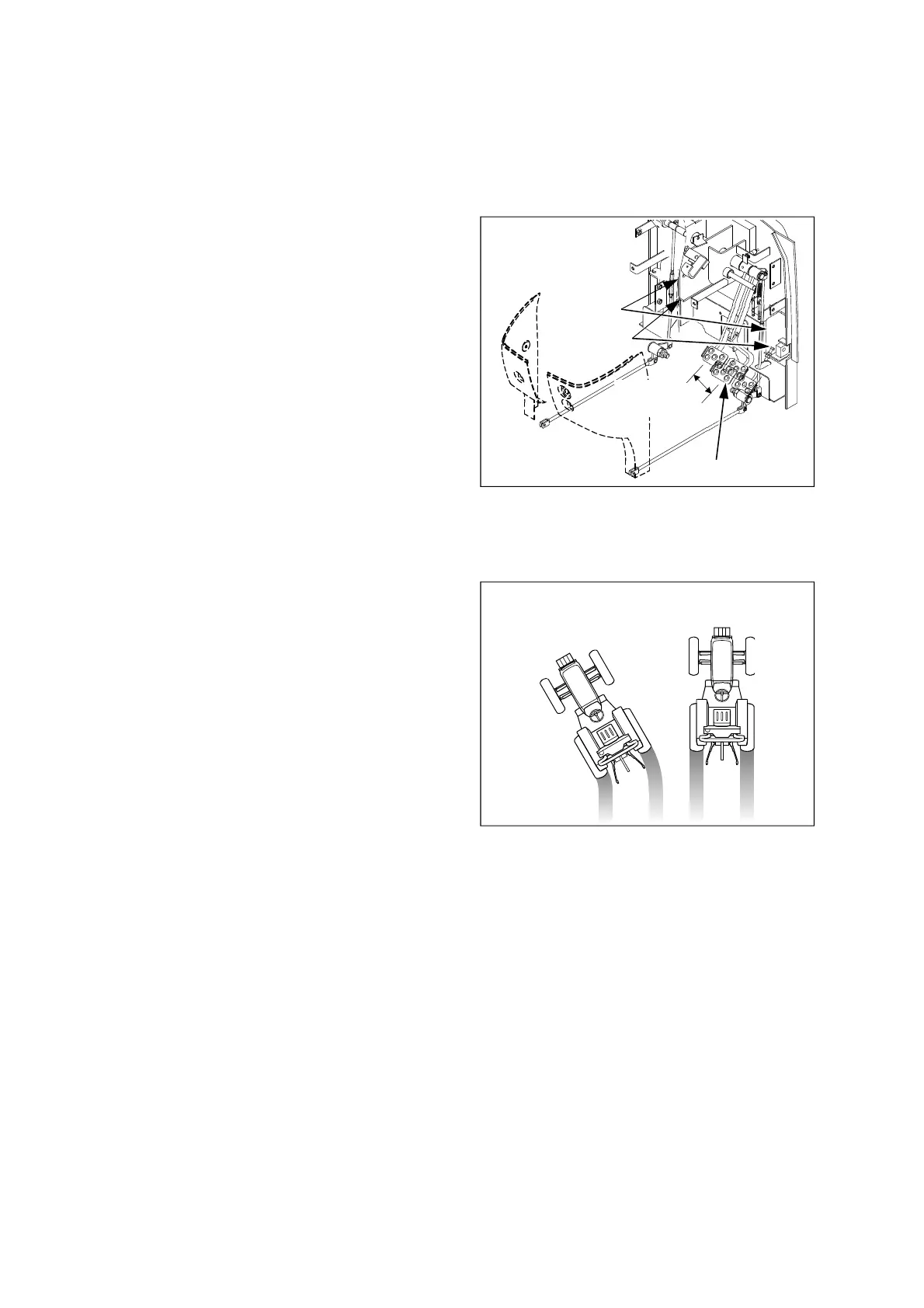

Brake pedals
40~50mm
(1.6~2.0 in.)
Adjuster
Locking nut
(11) Adjustment of Brake pedal
play
Normal distance: 40~50mm. (1.6~2.0 in.)
If the pedal play distance is over the normal
distance, adjust it as below.
1. Loosen the locking nut and turn the adjuster
clockwise/counter-clockwise.
2. If the adjuster is tightened, the pedal play will be
decreased, and if it is loosened, it will be
increased.
3. After adjusting the pedal play, tighten the locking
nuts.
4. Check if the brake distance of the left and right
brake is same as below.
Checking the brake distance
1. Connect the left and right brake pedals with the
brake pedal latch.
2. Check the skid marks of the tires or stability of
the tractor when stopping the tractor in a suitable
speed range.
3. If the brake distance is different as shown in the
right figure, adjust the pedal play again.
4. If the vehicle is turned to the left-hand side when
checking the braking distance, loosen the left-
hand brake rod or tighten the right-hand brake
rod with checking the brake pedal play distance.
Left/ Right brake distance
is different.
Normal
