3B-4 - FUEL
SYSTEM
90-830234R3 DECEMBER 1997

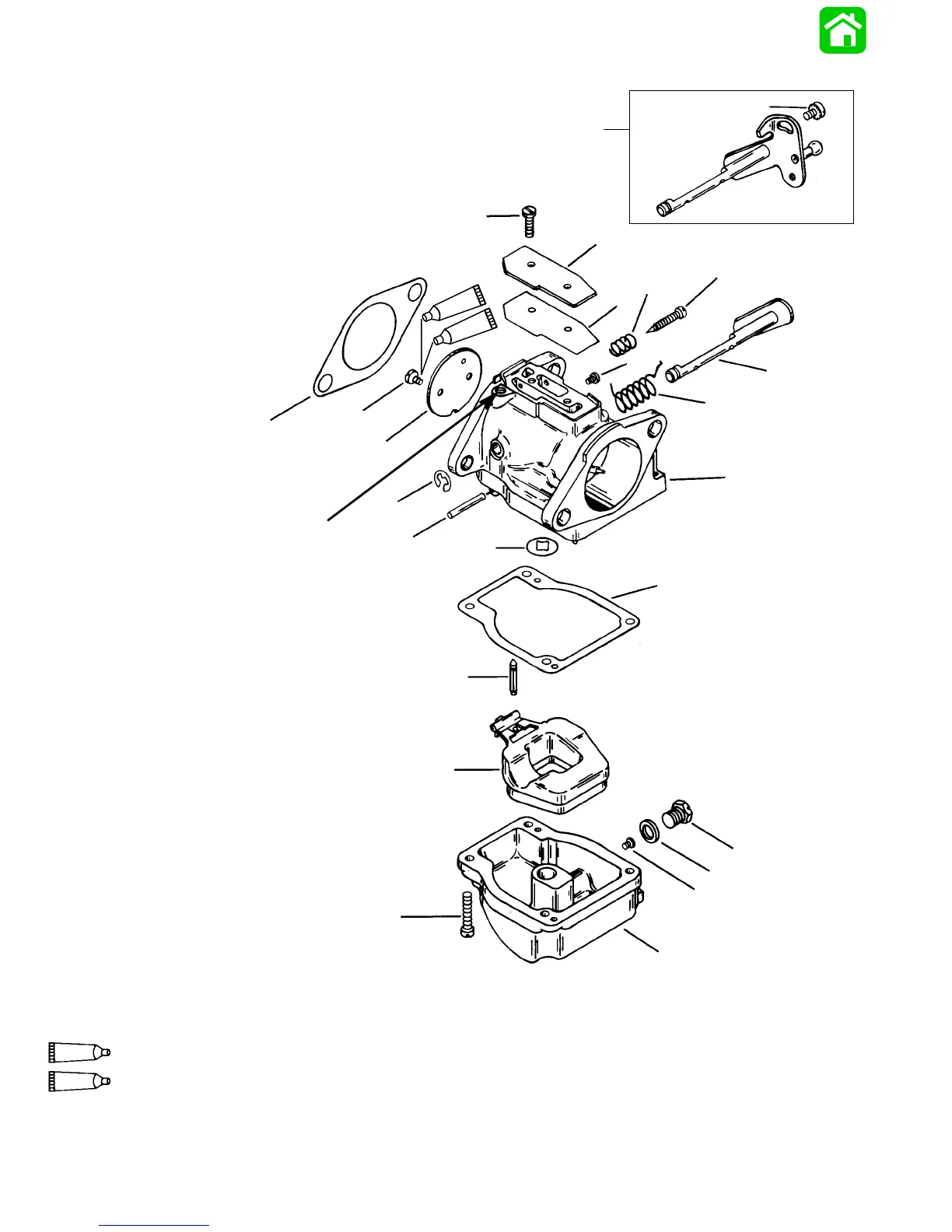

Carburetor (WME–29/30/31/41/46/47/48/49)
1
2
3
4
5
6
7
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
8
7
92
A
7
Loctite 271 (92-809820)
92
Loctite 7649 Primer (92-809824)
A –
DO NOT touch this adjustment. This is preset by the manufacturer and is NOT for field service. Conventional
carb cleaners will not affect the sealant securing this adjustment
165
167
