90-830234R3 DECEMBER 1997 LOWER UNIT - 6A-19
50 Bigfoot (4-Stroke)
a
b
850307
51117

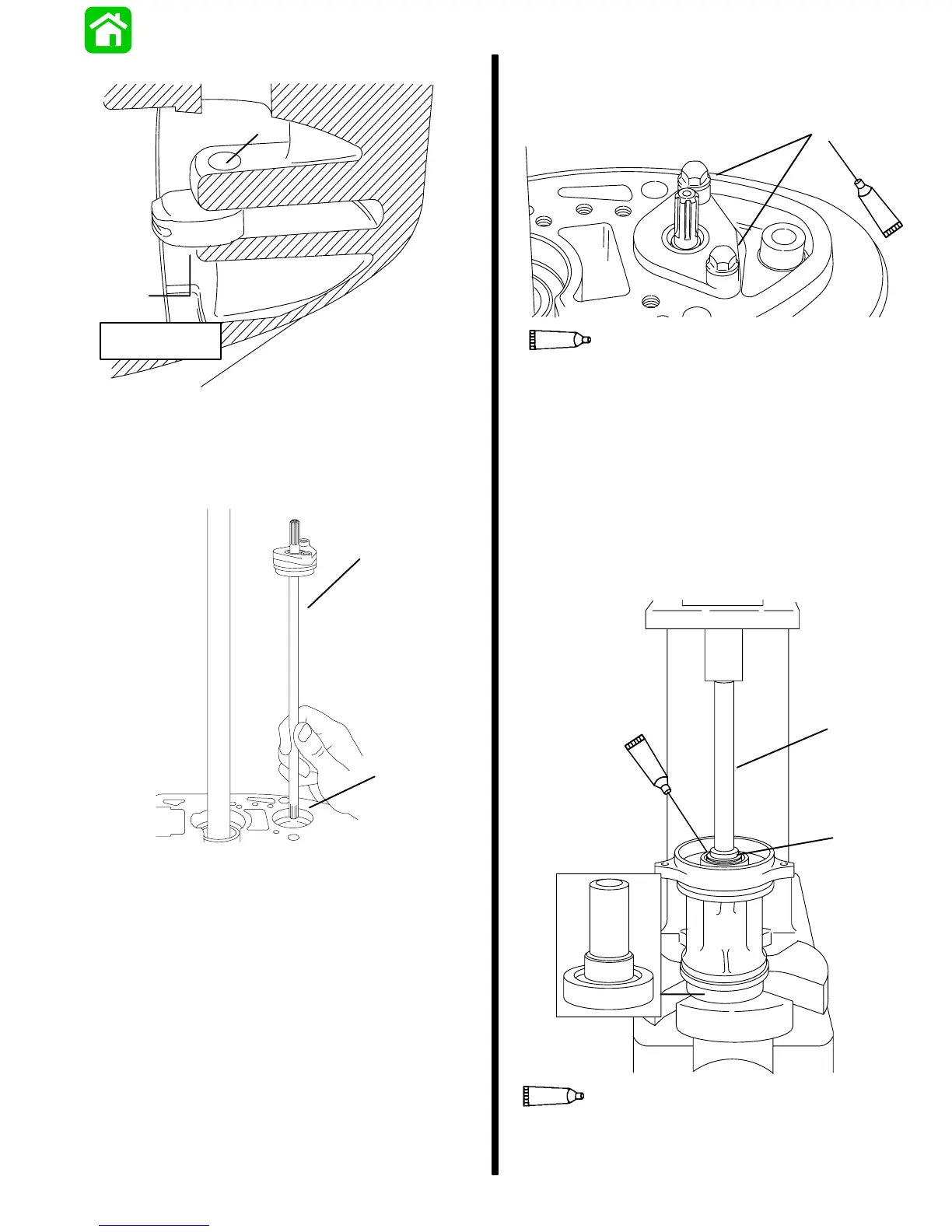

a - Shift Cam (Numbers Down)
b - Hole
7. Install shift shaft assembly; insert splines into
shift cam.
a
b
53932
a - Shift Shaft Assembly
b - Splines
8. Apply Loctite 271 on bottom half of threads
of bolts; install bolts and torque to 35 lb. in.
(4.0 N·m).
a
7
Loctite 271 (92-809820)
7
53926
a - Bolts [Torque to 35 lb. in. (4.0 N·m)]
Bearing Carrier Reassembly
1. Lubricate O.D. of bearing and bearing carrier
bore with Quicksilver 2-4-C w/Teflon.
2. Protect lip on forward side of bearing carrier, us-
ing Bearing Installation Tool (91-13945).
3. Press propeller shaft needle bearing (number
side toward mandrel) into carrier, until bearing
bottoms out.
c
b
a
95
2-4-C With Teflon (92-825407A12)
95
21042
a - Bearing Installation Tool (91-13945)
b - Mandrel (91-15755)
c - Suitable Driver Rod
