Mercury 65/80 JET User Manual

90-830234R3 DECEMBER 1997 ELECTRICAL - 2A-39

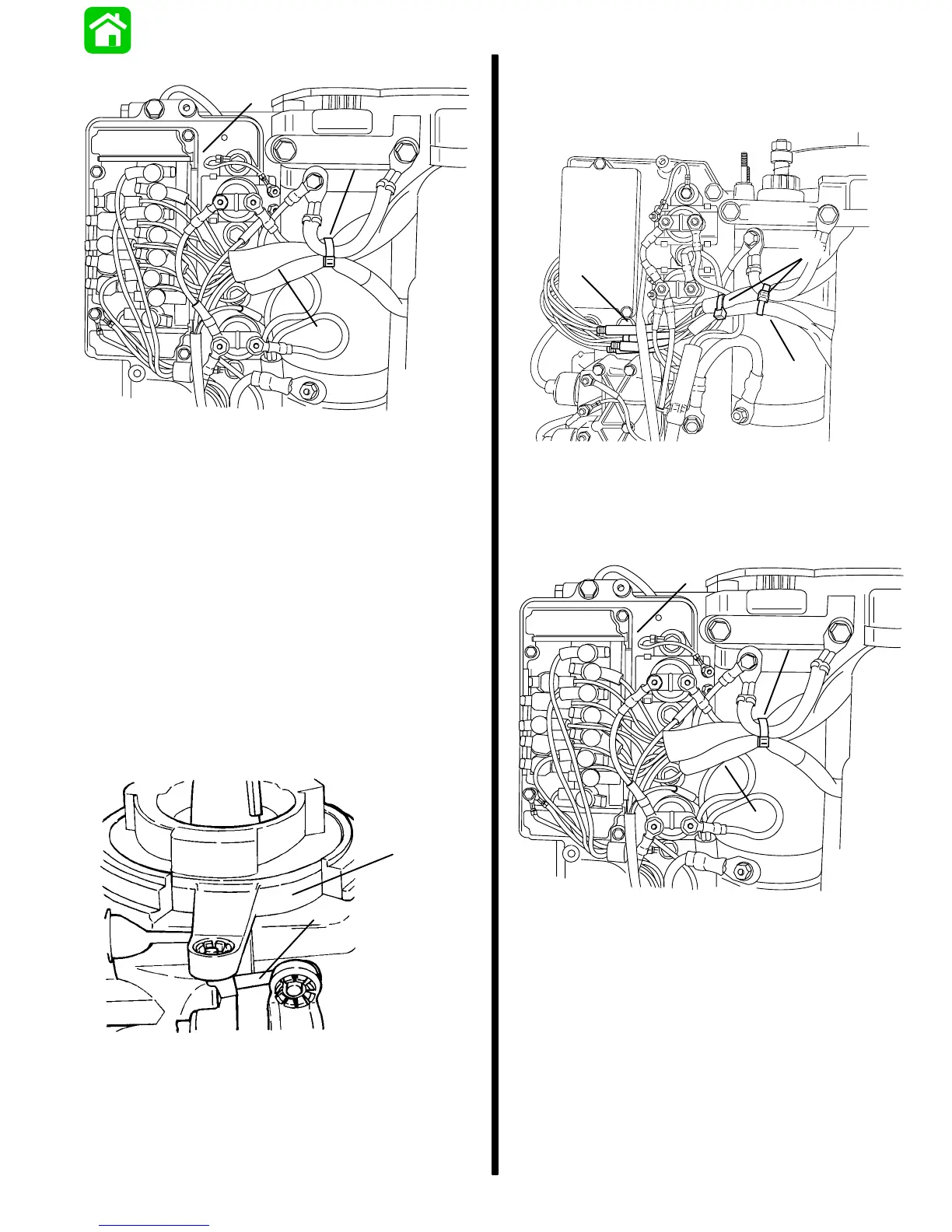

4 Cylinder Models
a
b
c
53970
a - Sta-Strap
b - Stator Harness
c - Switch Box
5. Install flywheel; refer to “Flywheel Installation”,
preceding.
Trigger Removal and
Installation
REMOVAL
1. Remove flywheel and stator; refer to “Flywheel”
and “Stator” removal, preceding.
2. Disconnect link arm and remove trigger.
b
a
19459
a - Link Arm
b - Trigger
3. Remove starter motor; refer to Section 2B.
4. Remove sta-strap.
5. Disconnect trigger leads from switch box and re-
move trigger.
3 Cylinder Models
b
a
c
53972
a - Sta-straps
b - Bullet Connectors; Disconnect Trigger Leads
c - Trigger Harness
4 Cylinder Models
a
b
c
53970
a - Sta-Strap
b - Trigger Harness
c - Switch Box
