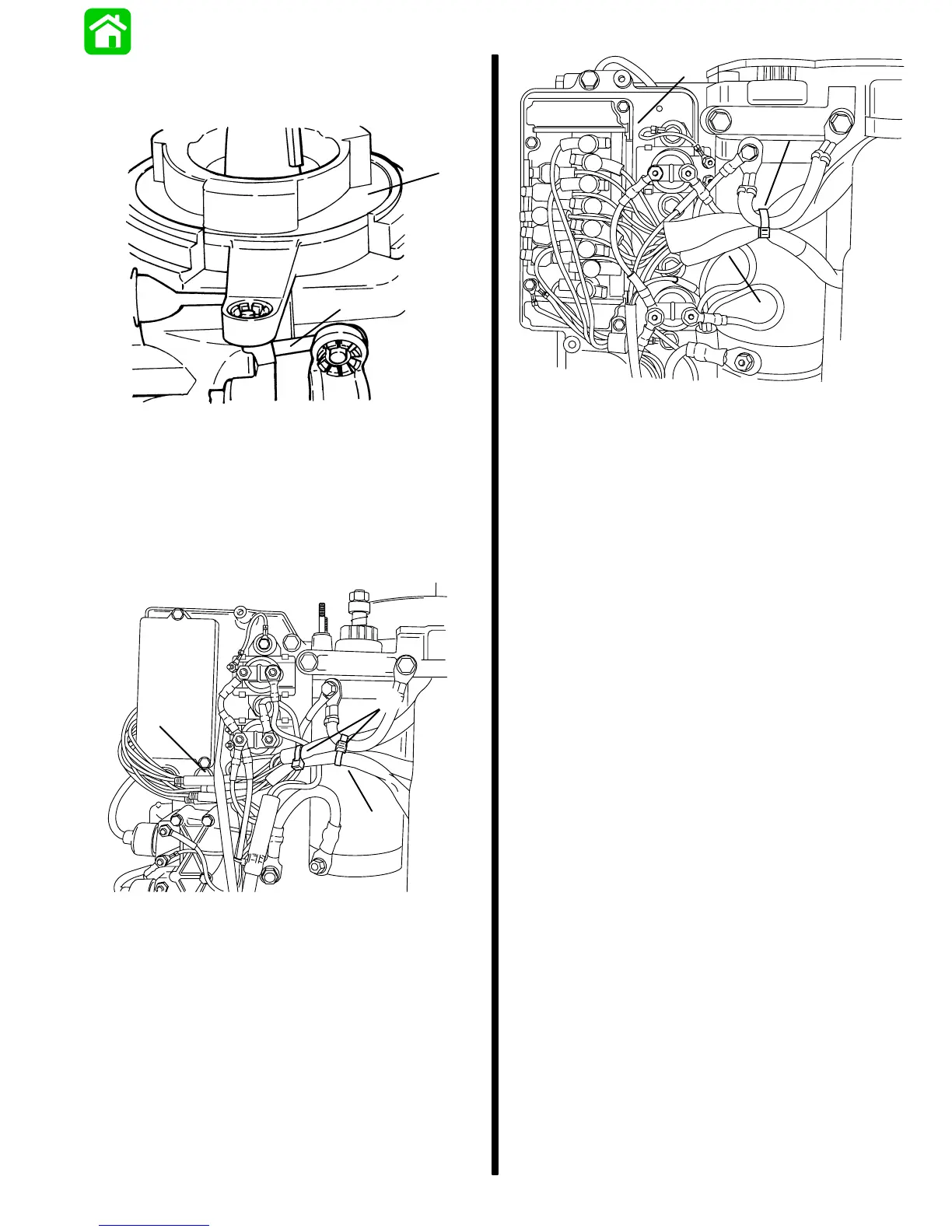

90-830234R3 DECEMBER 1997 POWERHEAD - 4-71
Trigger and Stator Installation
• Install trigger and connect link arm.
a
b
19459
a - Trigger
b - Link Arm
• Connect trigger leads to switch box; refer to wir-
ing diagrams in Section 2D.
• Install sta-strap.
• Install starter motor; refer to Section 2B.
b
a
c
3 Cylinder Models
53792
a - Sta-Straps
b - Bullet Connectors; Connect Trigger Leads
c - Trigger Harness
4 Cylinder Models
a
b
c
53970
a - Sta-Strap
b - Trigger Harness
c - Switch Box
