90-830234R3
DECEMBER 1997
MID-SECTION - 5B-19
Power T
rim System Removal
IMPORT
ANT
: With outboard in the full tilt UP
position, support outboard with tilt lock lever
when servicing trim system.
1.
Remove top cowl.

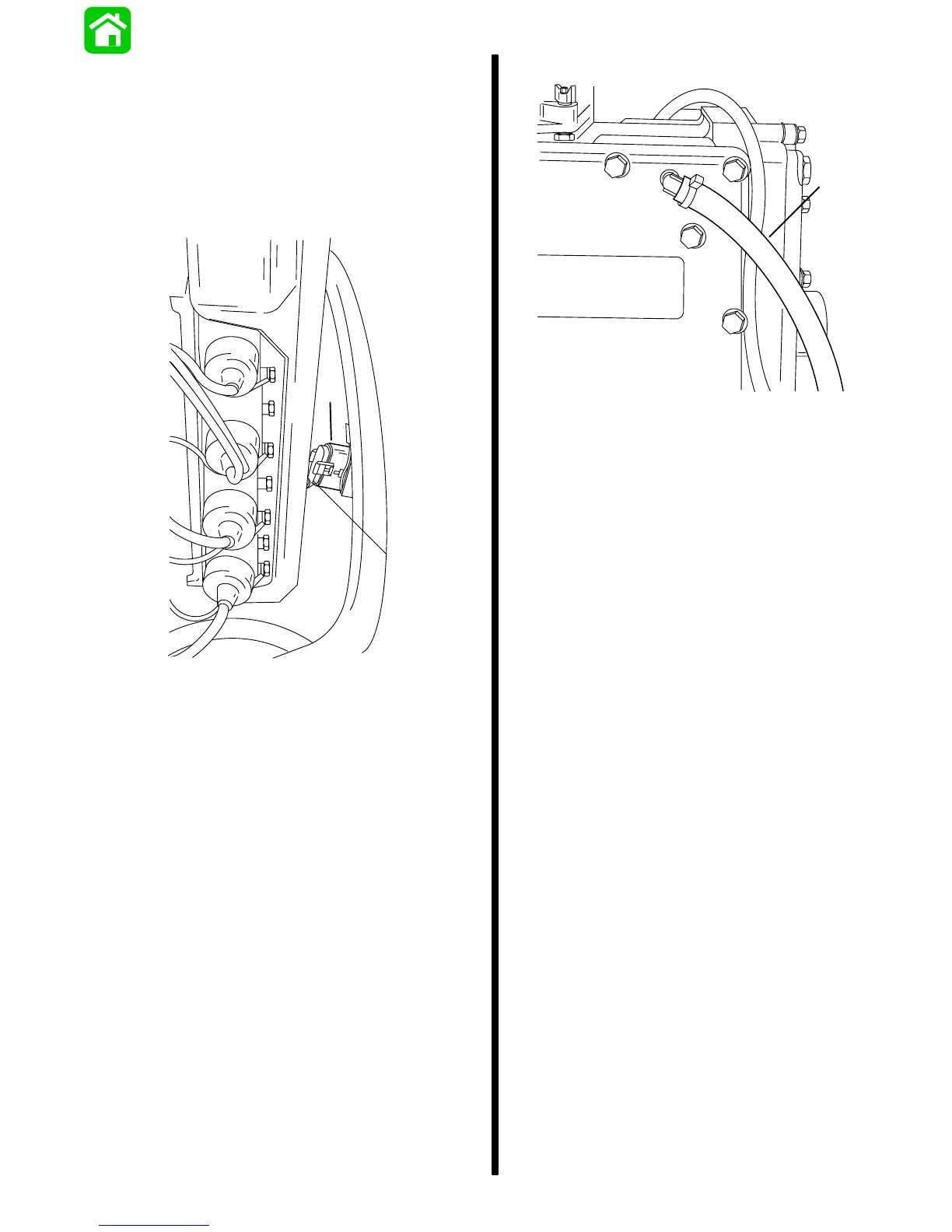

2.
Disconnect bullet connectors in cowl mounted
trim switch harness.
a
53952
a
-
Cowl Mounted T
rim Switch
3.
Remove tell-tale hose from exhaust cover
.
a
53956
a
-
Hose
336
