4-70 - POWERHEAD 90-830234R3 DECEMBER 1997

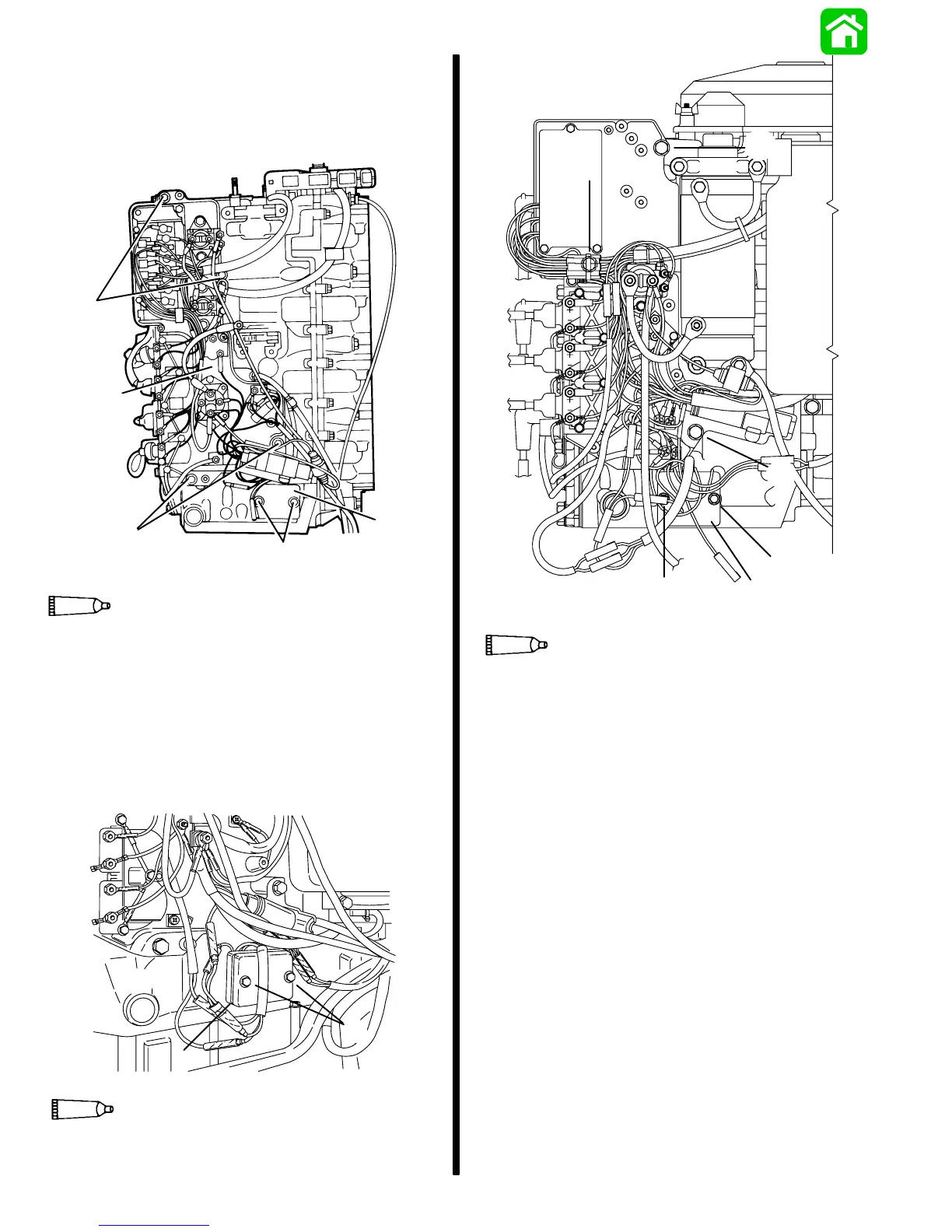

Ignition Plate Installation
• Install ignition plate. Apply Loctite 271 to bolt
threads. Torque ignition plate bolts to 13.5 lb. ft.
(18.5 Nm).
4 Cylinder Models
c
a
c
d
b
25922
7
Loctite 271 (92-809820)
a - Ignition Plate
b - RPM Limiter (outer) and Oil Warning Module (inner)
c - Ignition Plate Bolts (4 Each)
d - RPM Limiter/Oil Warning Module Bolts (2 Each)
• Install Oil Warning module (Inner) and RPM Lim-
iter module (Outer) back-to-back. Apply Loctite
271 to module bolt threads Torque bolts to 80 lb.
in. (9.0 N·m).
4 Cylinder Models Only
b
a
54161
7
Loctite 271 (92-809820)
a - Oil Warning Module (Inner); RPM Limiter Module (Outer)
b - Bolts [Torque to 80 lb. in. (9.0 N·m)]
3 Cylinder Models
a
b
c
c
a
a
7
Loctite 271 (92-809820)
a - Bolts
b - Oil Warning Module
c - Oil Warning Module Bolts
