2B-14 - ELECTRICAL 90-830234R3 DECEMBER 1997

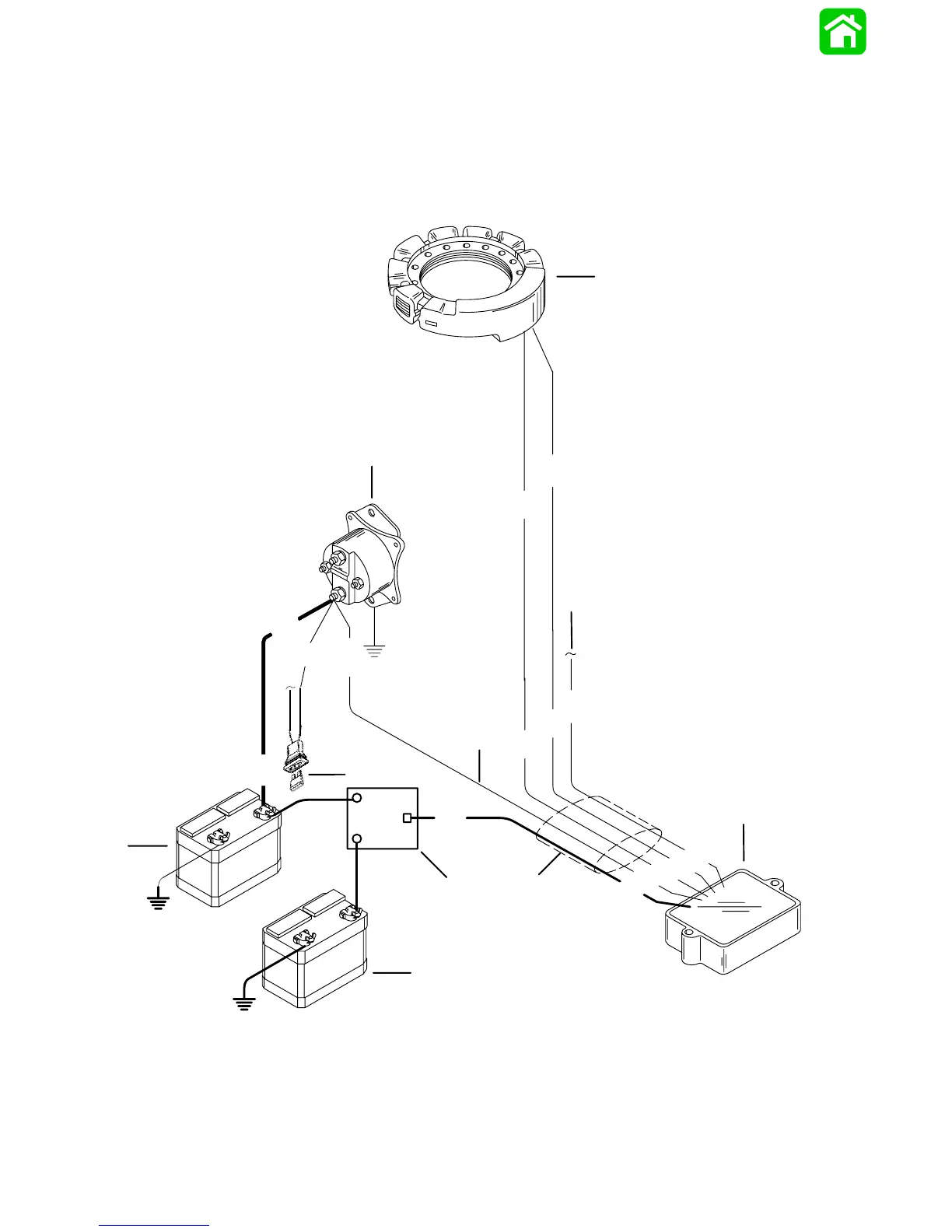

4 Cylinder Battery Charging Diagram
(with RED Stator) with Battery
Isolator
IMPORTANT: After electrical connections are
made, coat all terminal connections using Quick-
silver Liquid Neoprene (92-25711), to avoid cor-
rosion.
51050
YEL
YEL
RED
YEL
YEL
GRY
GRY
YEL
YEL
RED
RED
RED
RED
RED
B1
B2
RED
A
a
b
c
d
e
f
g
i
h
j
k
BLK = BLACK
BLU = BLUE
BRN = BROWN
GRY = GRAY
GRN = GREEN
PUR = PURPLE
RED = RED
TAN = TAN
VIO = VIOLET
WHT = WHITE
YEL = YELLOW
a - Stator
b - To Tachometer
c - Voltage Regulator/Rectifier
d - Battery Isolator
e - Auxiliary Battery
f - Start Battery
g - To Remote Control Harness
h - 20 Ampere Fuse
i - Starter Solenoid
j - Small Red (Sense) Lead
k - Large Red (Output) Lead
