5E-28 - MID-SECTION 90-830234R3 DECEMBER 1997

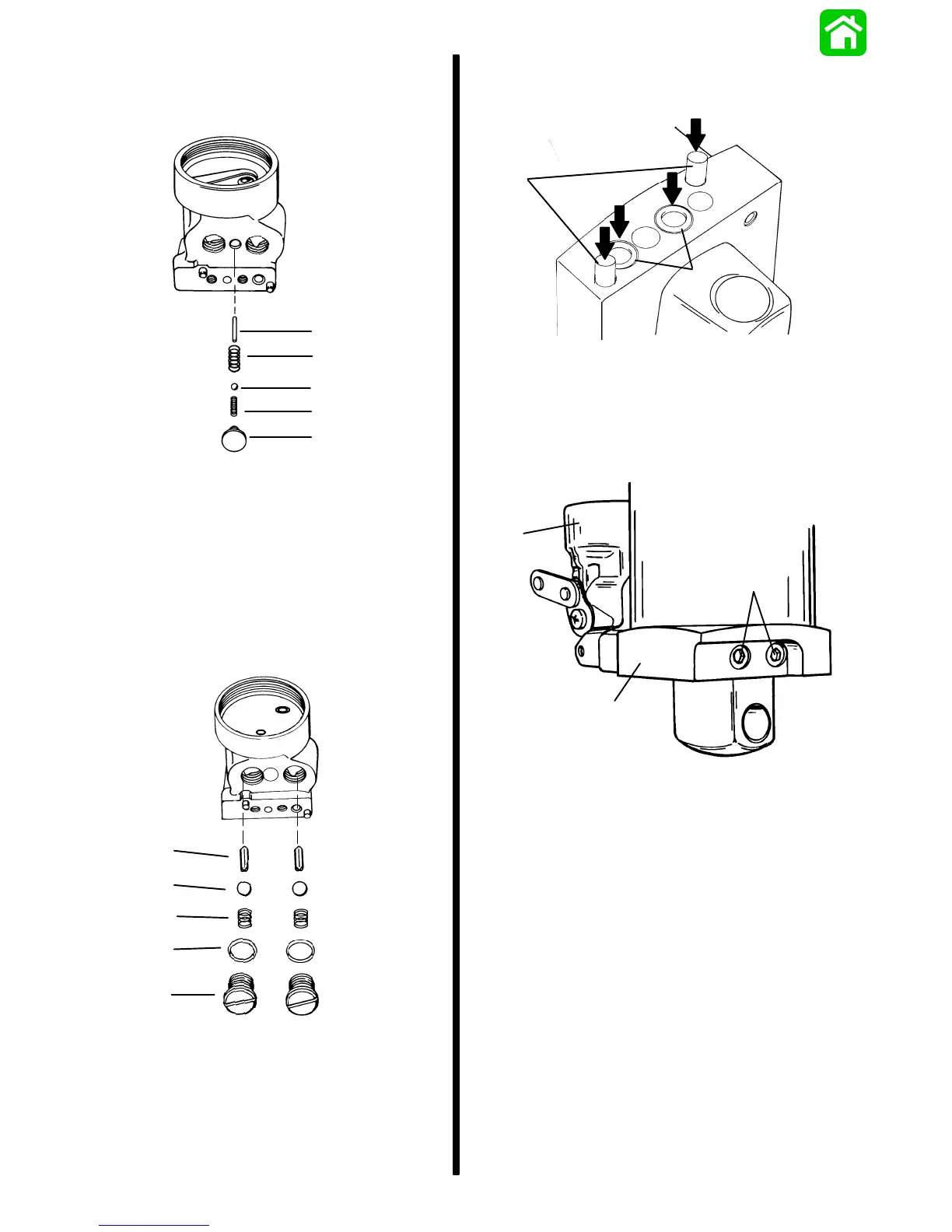

CHECK RETAINER REASSEMBLY
1. Install plunger, spring (large), ball, spring (small),
and plug into valve block.
a
b
c
d
e
51142
a - Plunger
b - Spring (Large)
c - Ball
d - Spring (Small)
e - Plug
VALVE PLUG REASSEMBLY
1. Install plunger, steel ball, spring, lubricated O-
ring and screw plug. Torque screw plugs to 75 lb.
in. (8.5 Nâ‹…m).
e
d
c
b
a
51142
a - Plunger (2)
b - Steel Ball (2)
c - Spring (2)
d - O-ring (2)
e - Screw Plug (2) Torque to 75 lb. in. (8.5 Nâ‹…m)
Valve Block Installation
1. Install lubricated O-rings and dowel pins.
1
a
b
51148
a - O-ring (2)
b - Dowel Pin (2)
2. Install valve block to shock rod cylinder. Insert
screws to shock rod cylinder and torque to 100 lb.
in. (11.3 N·m).
a
c
b
51146
a - Valve Block
b - Screw (2) Torque to 100 lb. in. (11.3 Nâ‹…m)
c - Shock Rod Cylinder
