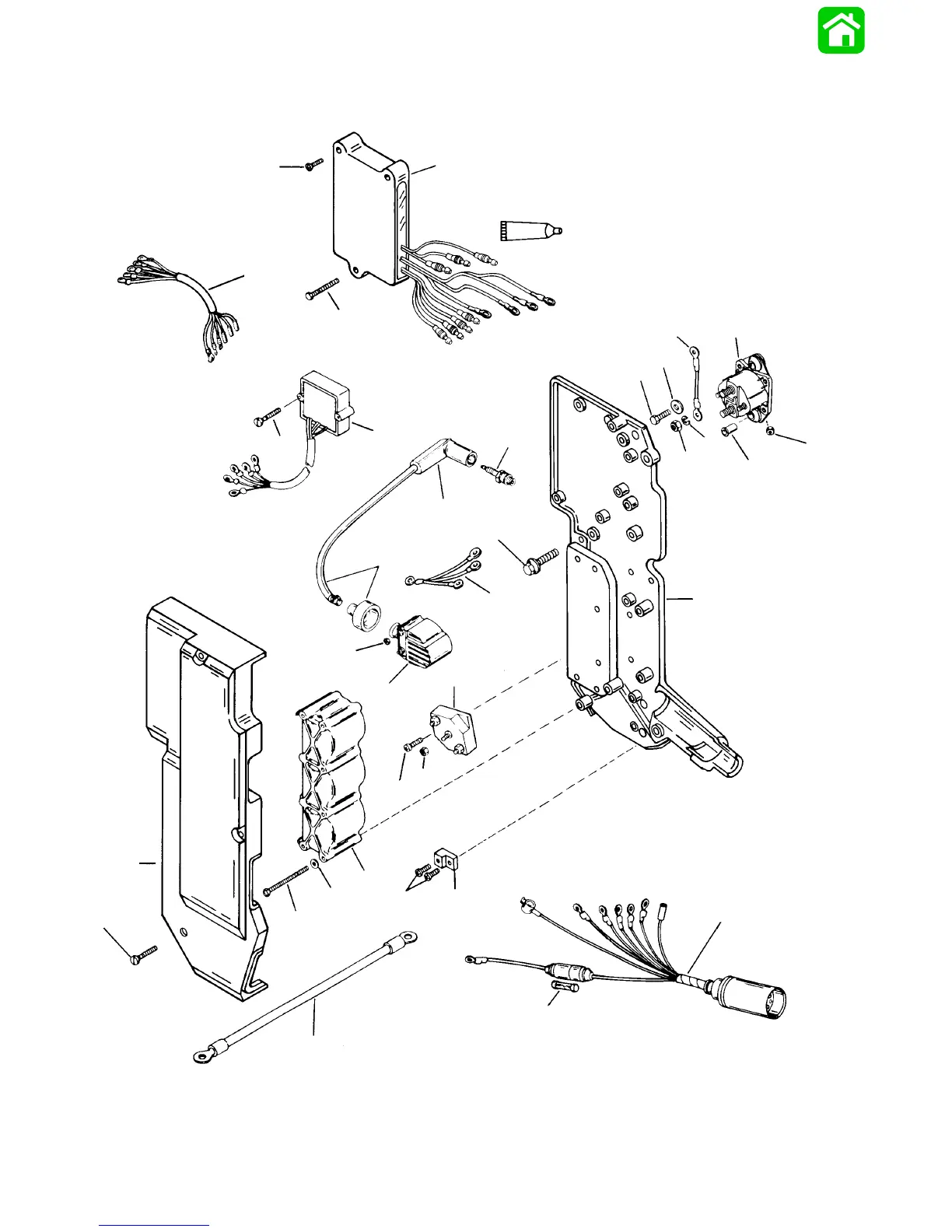

2A-4 - ELECTRICAL
90-830234R3
DECEMBER 1997
Electrical Components
(USA-0G127500 thru 0G437999)(BEL-9836633 thru 9926999)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
33
21
22
23
24
25
26
27
28
29
30
31
32
34
35
Quicksilver Lubrication/Sealant
Application Points
Liquid Neoprene (92-2571
1--2)
25
IMPORT
ANT
: All eyelet electrical
connections should be coated with LIQUID NEOPRENE after respective
screw
, bolt or nut is tightened
41
43
Table of Contents
