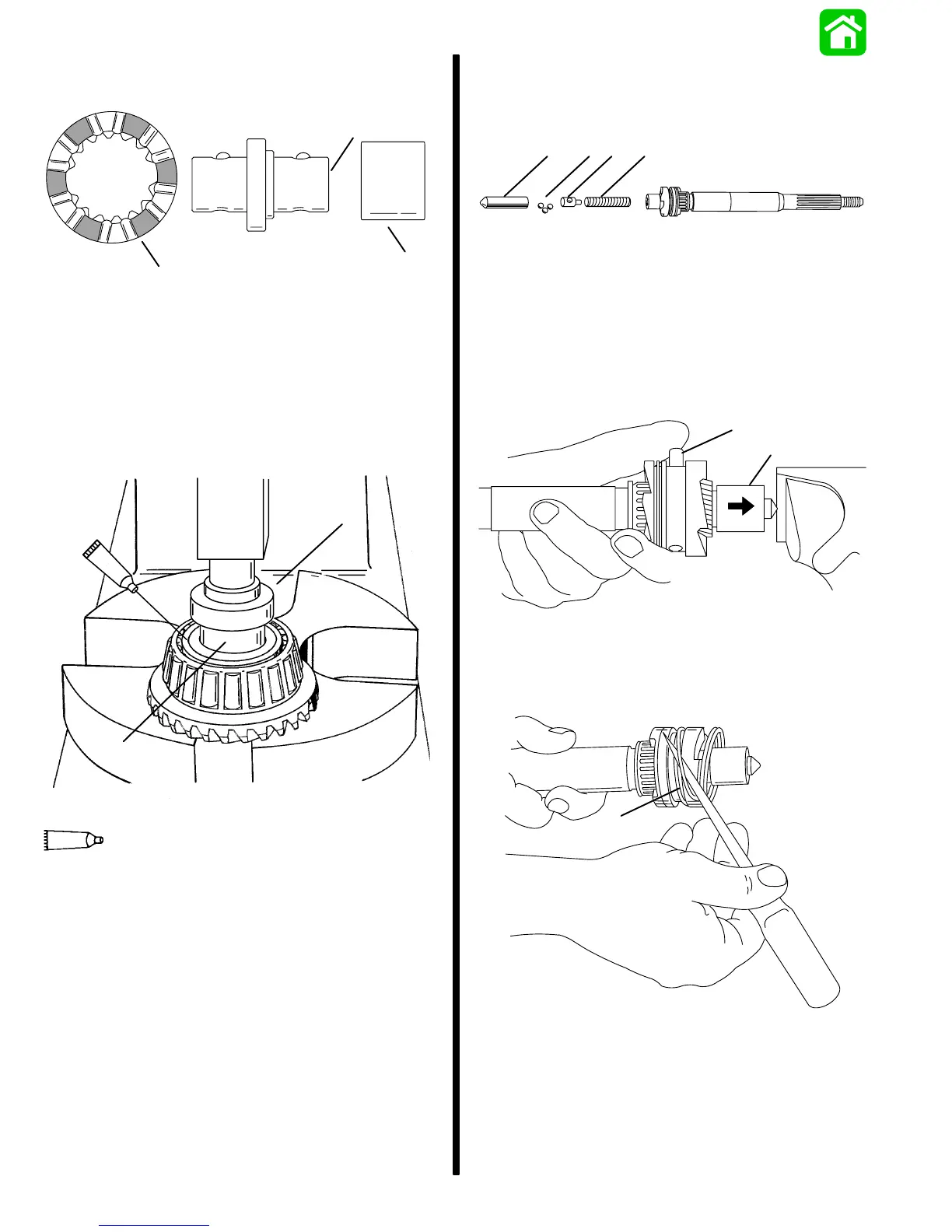

6A-22 - LOWER UNIT 90-830234R3 DECEMBER 1997
6 Jaw Reverse Clutch
c
b
a
56784
a - Stamped “6”
b - Numbered end of Needle Bearing
c - 6 Jaw Reverse Clutch
3. Apply Quicksilver gear lubricant to I.D. of forward
gear. Press bearing into forward gear until tool
contacts gear.
56785
b
a
87
Quicksilver Gear Lubricant (92-19007A24)
87
a - Forward Gear Bearing Installer (91-856875)
b - Needle Bearing, Numbered Side Toward Installer Tool
Propeller Shaft Reassembly
1. Install components into propeller shaft in se-
quence shown.
b
dc a
19154
a - Spring
b - Guide Block
c - 3 Metal Balls*
d - Cam Follower*
* Hold in Place With Quicksilver 2-4-C w/Teflon
2. Install cross pin.
b
a
51800
a - Apply Pressure in This Direction
b - Cross Pin
3. Install spring. DO NOT overlap springs.
a
51876
a - Spring
To Next Page
