90-830234R3 DECEMBER 1997 MID-SECTION - 5B-37

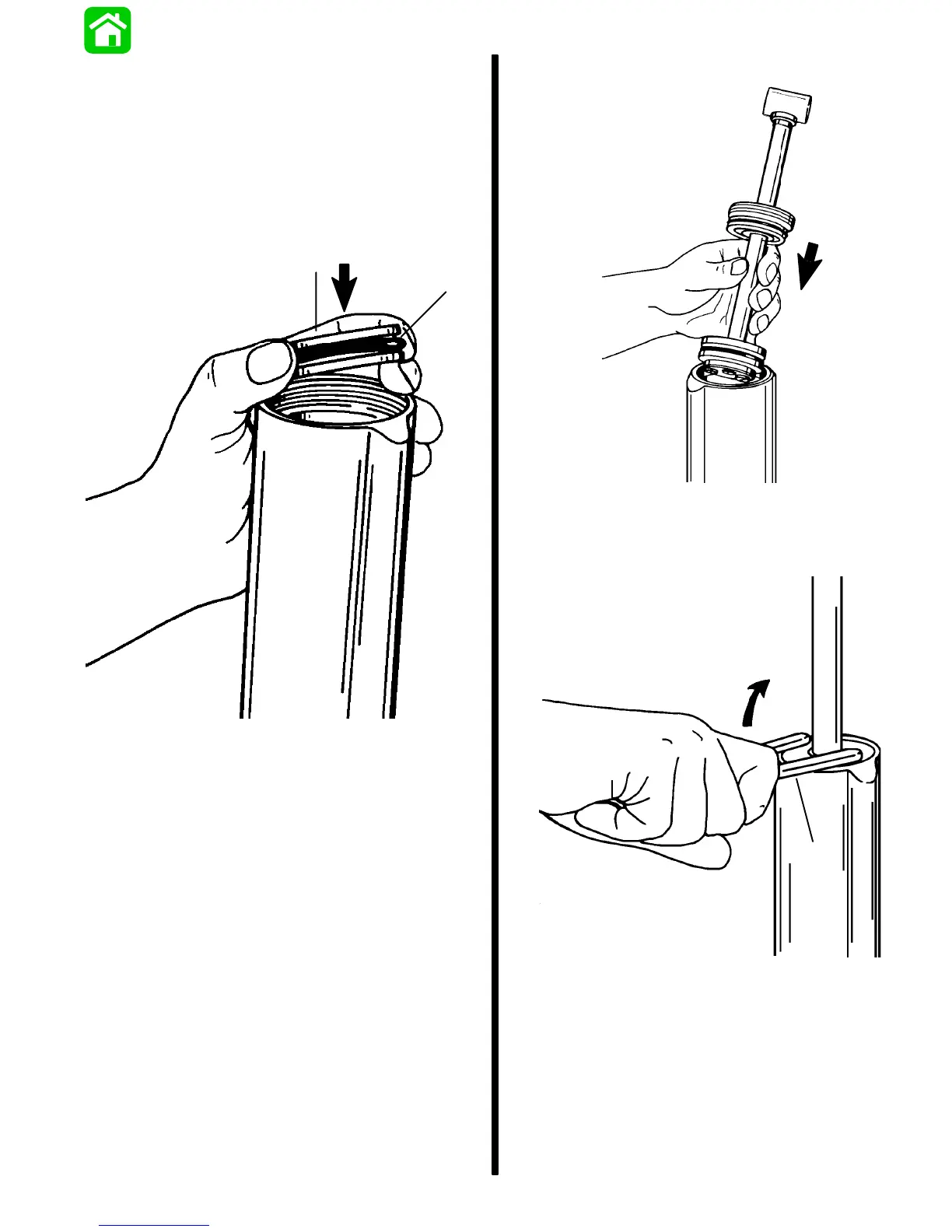

Trim Rod Installation
1. Place trim cylinder in soft jawed vise.
2. Fill trim cylinder three inches (76.2mm) from top
of cylinder using Quicksilver Power Trim and
Steering Fluid or; (ATF) Type F, FA or Dexron II.
3. Install lubricated O-ring to memory piston and
place into cylinder. Push piston down to level of
oil.
b
a
51144
Memory piston must not contact end cap dur-
ing trim rod/end cap installation.
a - O-ring
b - Memory Piston
4. Install trim rod into cylinder.
51196
5. Tighten end cap assembly to cylinder securely
using spanner wrench (1/4 in. x 5/16 in. long
pegs).
c
51145
c - Spanner Wrench (91-74951)
6. Tighten manual release valve following end cap
installation.
To Next Page
