SEAWATER COOLED MODELS
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 6A-7
4. Place new gasket on pickup housing and hold pickup in place on transom. Install four
round head bolt (with washers and O-rings in place) into pickup mounting holes and
through drilled 21/64 in. (8 mm) holes in transom.
NOTE: Some installations may have 7/32 in. (5 mm) holes drilled in transom using four 5/16
in. diameter stainless steel lag bolts in place of round head screws. In any case, flat washers
and O-rings are required as outlined.
72641
a
b

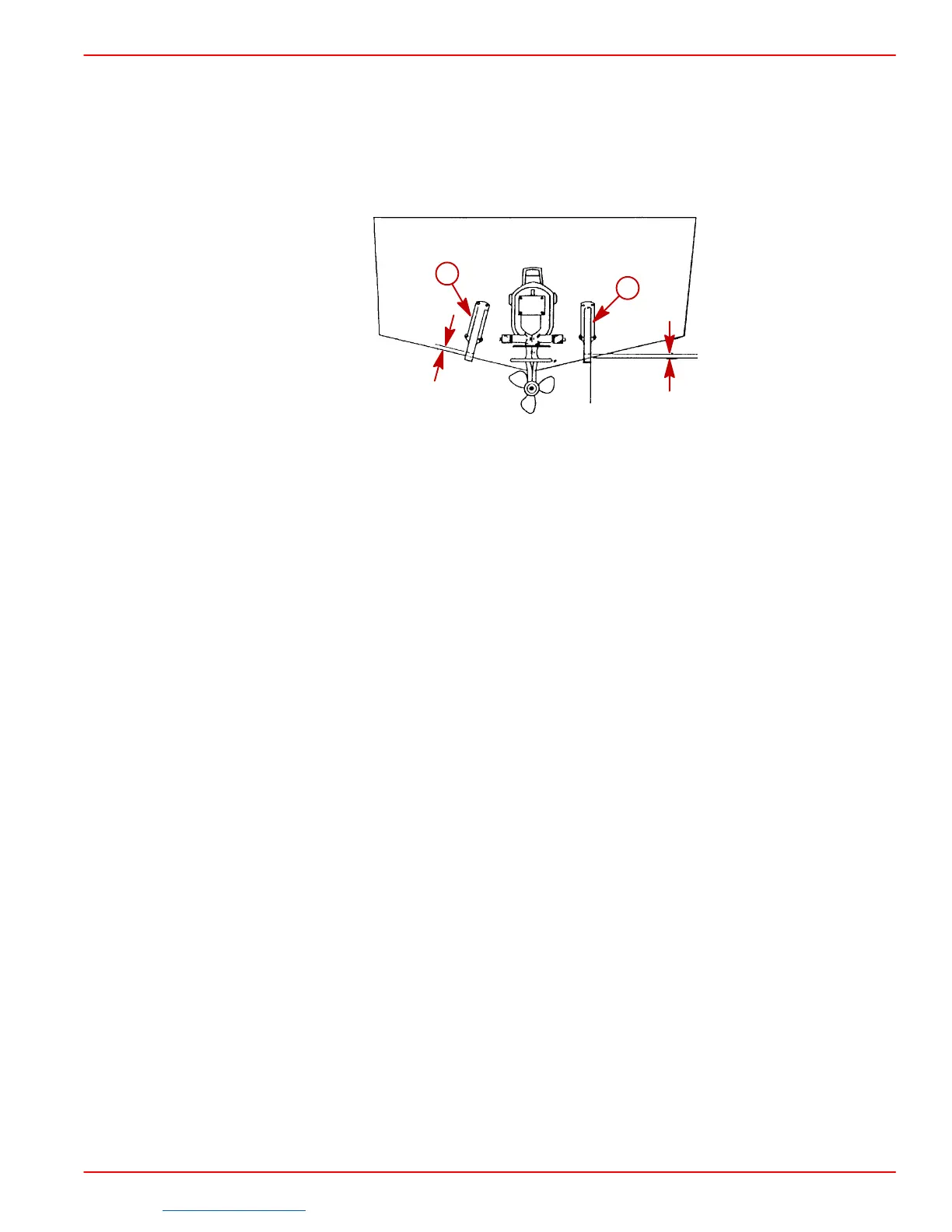

Water Pickup Installed on Transom
a-Diagonal Mount - Leading Edge Of Pickup 1/8 In. (3.2 mm) From Boat Bottom.
b-Vertical Mount - Corner Of Leading Edge Of Pickup 1/8 In. 3.2 mm) From Boat
Bottom
5. Secure water pickup from inside with locknuts and washers (unless using lag bolts).
6. Tighten fasteners securely.
