System Inst
allation 3-3
3.2
Unp
acking
T
ool: scissors
Instal
lation durat
i
on: 2 per
sons
,
ten minutes.
3.2.1
Unp
acking
3.2.1.1
Unp
acki
ng Sketch

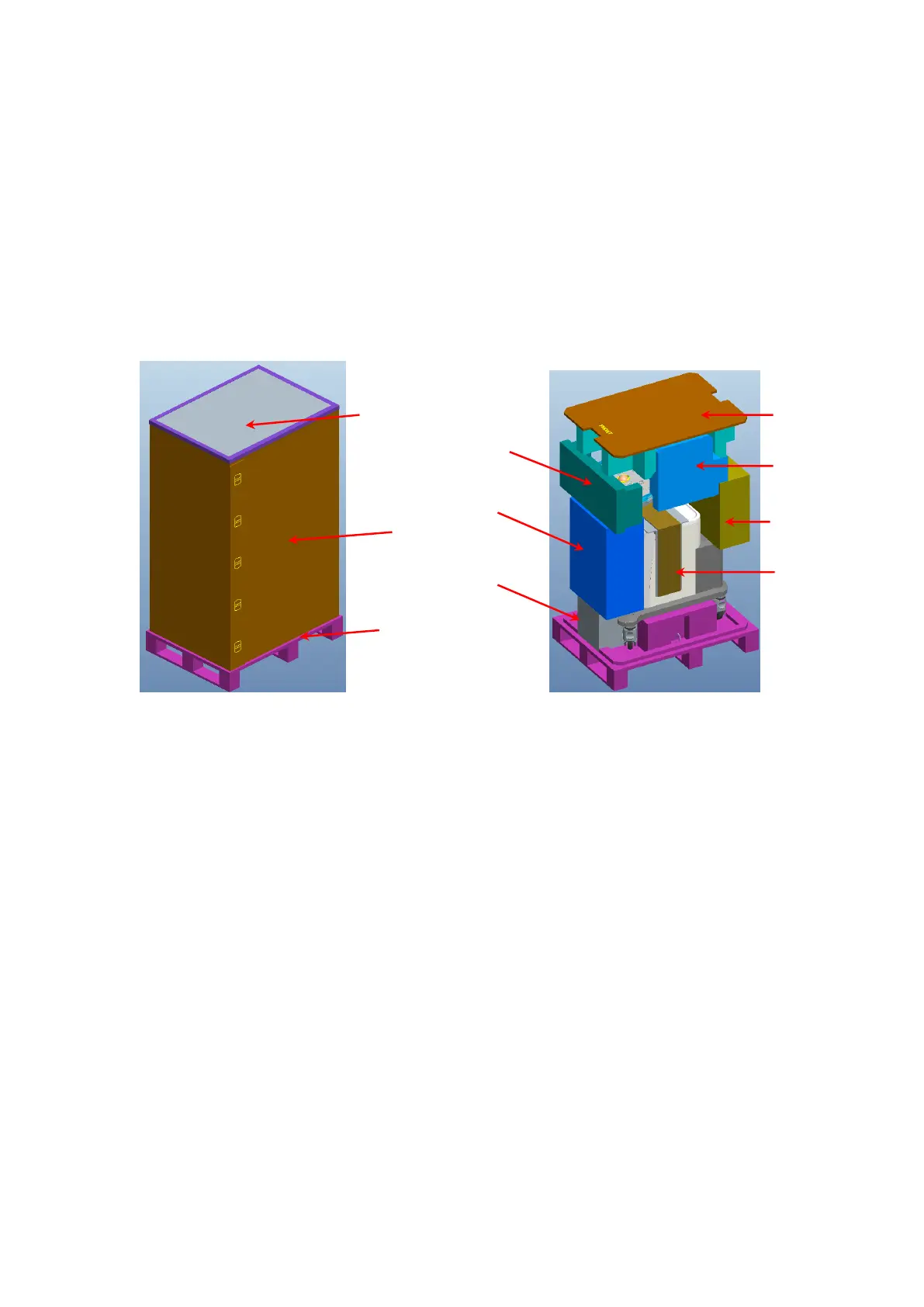

Figure 1
Main un
it p
ackage drawing
LARIS con
trol
panel pro
t
ecting
foam
Probe ca
se
LCD prote
cting
foam
POLARIS
LCD
protecting
foam
Package (480
X 34
0 X 135)
CS05 main
unit
protecting
foam
POLARIS
bottom
supporting
foam
DP
-5 series
close
carton
CS05 wooden
cover
CS05 pallet
28
30
Table of Contents
Table of Contents
3
Revision History
9
Intellectual Property Statement
10
Applicable for
10
Statement
10
Responsibility on the Manufacturer Party
11
Customer Service Department
11
Preface
13
Meaning of Signal Words
13
Meaning of Symbols
14
Meaning of Safety Symbols
14
Warning Labels
15
General Symbols
16
Safety Precautions
17
Electric Safety
17
Mechanical Safety
18
Personnel Safety
18
Others
18
Specifications
19
Overview
19
Intended Use
19
Introduction of each Unit
19
Peripherals Supported
25
Specifications
26
Dimensions and Weight
26
Electrical Specifications
26
Environmental Conditions
26
Monitor Specification
26
System Installation
27
Preparations for Installation
27
Electrical Requirements
27
Installation Condition
28
Unpacking
29
Installation of Main Unit
33
Display Adjusting
33
Connecting the Power Cord
34
Installing Transducer& Gel Holder
35
Posit the Gel Warmer
35
Connecting the Transducer
35
Installing Peripherals
36
Footswitch Installation
36
Installing a Graph / Text Printer
36
Installing Printer Adapter
39
Video Printer Installation
42
System Configuration
43
Running the System
43
Enter Doppler
43
System Preset
44
Exam Mode Preset
48
Measurement Preset
48
Print Preset
49
Network Preset
49
System Information
53
Hardware Principle
55
General Structure of Hardware System
55
Main Unit Module
55
Probe Board
56
Probe Connected Assembly
56
Main Board
57
IO Interface Board
59
IO Rear Board
60
ECG Board
60
Driving Board
61
Power Supply Module
62
Power Output of the Power Supply Module and Supporting Function Distribution
62
System Power-On Control
63
Monitor
66
Control Panel
67
Ultrasound System Monitoring
68
Ultrasound System Indicator
69
Function Checking and Testing
71
Preparation
71
Personnel
71
Tool
71
Checking System Status
71
System Running Status
71
System Running Environment
71
General Exam
72
Check Flow
72
Checking Content
72
Function Checks
74
Check Flow
75
Checking Content
75
Performance Test
81
Test Process
81
Test Content
82
Software Installation and Maintenance
89
Enter the Maintenance Window
89
Set Installment
90
System Recovery and Doppler Recovery
93
Advanced-Parameter Configuration (Reg Version) and Normal Configuration
93
Data Backup and Storage
95
Preset Manage Settings
95
Patient Data Backup and Restore
96
Software Maintenance
97
Product Configuration
97
Log Maintenance
98
Display Parameter Setting
99
HDD Partition
100
Structure and Assembly/Disassembly
101
Structure of the Complete System
101
Field Replaceable Unit
102
Preparation
123
Tools Required
123
Engineers Required
123
Preparations for Installation
123
Assembly/Disassembly
123
Monitor Assembly
124
IO Rear Board
127
Machine Fan
128
Power Input Assembly
129
Power Module Assembly
130
Main Unit Box Module
131
Probe Board Assembly
137
Left Side-Panel Assembly
138
Right Side-Panel Assembly
139
Control Panel Assembly
140
DVD Assembly
144
Others
144
Options Installation
151
Installation of Optional Devices
151
Installation of Hardware Optional Function
154
Printer Adapter
155
Structure of the Entire System
155
Tools Required
155
Engineers Required
155
Requirements
155
Assembling/Disassembling
156
System Diagnosis and Support
157
General Status Indicator
157
The Status Indicators on the Control Panel
157
Starting Process of the Whole System
159
Start Process of Complete System
160
The Start-Up Process of BIOS
161
The Start-Up of Linux
161
The Start-Up of Doppler
161
Alarming and Abnormal Information
164
Turning on the System Configuration File Is Abnormal
164
The Voltage of System Power Is Abnormal
164
Temperature Alarming
165
Fan Alarming
165
Battery Alarming
166
PHV Related Alarming
167
Care and Maintenance
169
Overview
169
Care and Maintenance Frequency
170
Cleaning the System
171
Flow of Cleaning
171
Maintenance Check
174
System Function
174
Peripherals and Options Check
175
System Maintenance
175
Electrical Safety Maintenance
175
Mechanical Safety Maintenance
175
Troubleshooting of Regular Malfunctions
179
System Cannot be Powered on
179
Module or Board Related
179
Key Points Supporting Troubleshooting
179
Troubleshooting
179
System Cannot Start up Normally
180
Module or Board Related
180
Key Points Supporting Troubleshooting
180
Troubleshooting
181
Image Fault
182
Module or Board Related
182
Key Points Supporting Troubleshooting
182
Troubleshooting
182
Probe Socket System Malfunction
183
Module or Board Related
183
Key Points Supporting Troubleshooting
183
Troubleshooting
183
IO Interface System
184
Module or Board Related
184
Key Points Supporting Troubleshooting
184
Troubleshooting
184
Control Panel
185
Module or Board Related
185
Key Points Supporting Troubleshooting
185
Troubleshooting
186
Monitor
186
Module or Board Related
186
Key Points Supporting Troubleshooting
186
Troubleshooting
187
Printer Adapter Related Troubleshooting
187
Electrical Safety Inspection
192
Appendix B Phantom Usage Illustration
207
