Part II General Information
Function and Performance Check 223

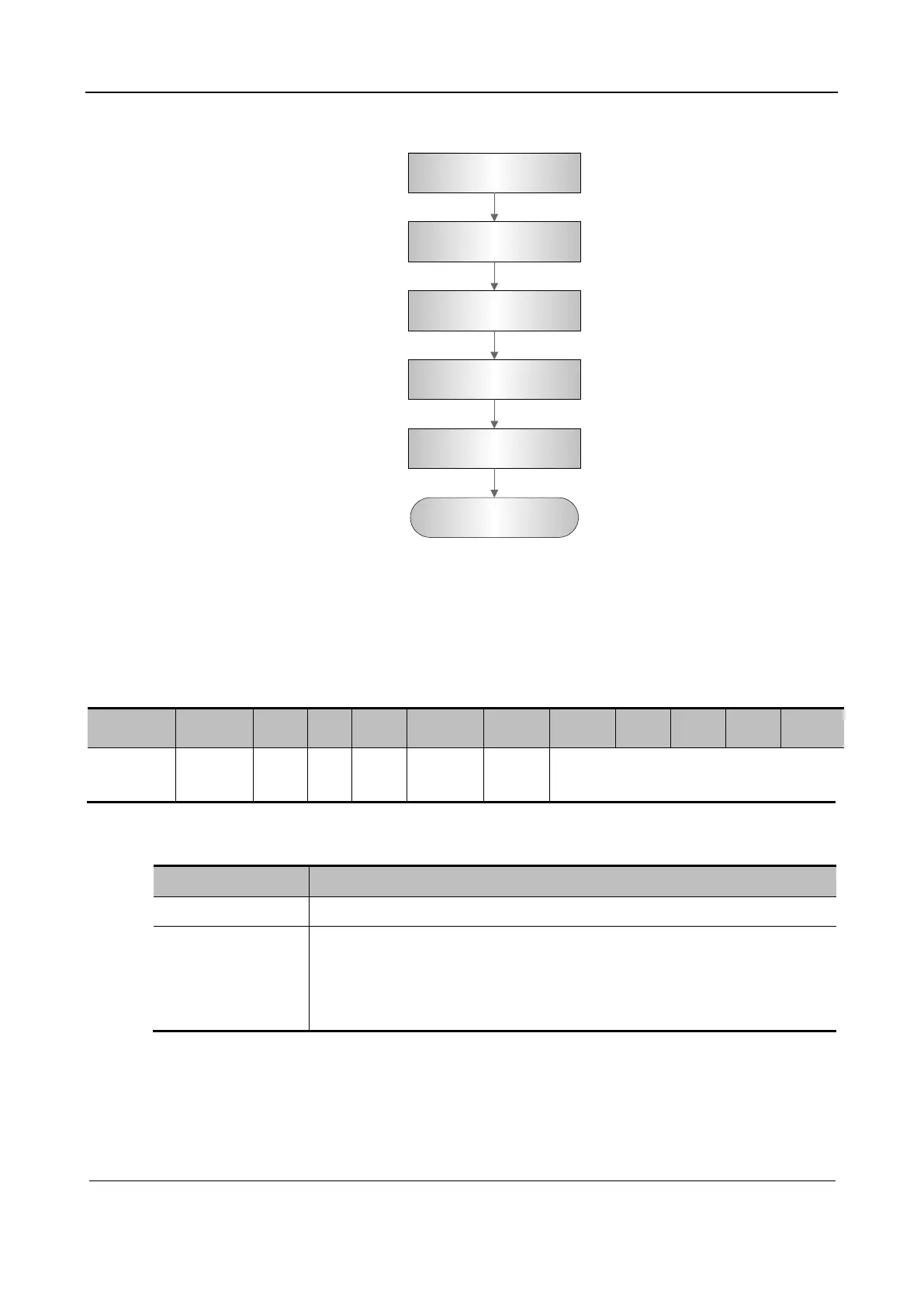

6.4.1 Check Flow
Check image mode
Check basic
measurement
Check cine mode
Check probe usage
Image and imaging
management
Record and save the
check
6.4.2 Check Items
6.4.2.1 Imaging Mode
B Mode
In B mode scan, the image parameter area on the screen displays the real-time parameter values as
follows:
Item F D G FR DR TSI iClear iBeam iTouch Zoom
Echo
Boost
Description Frequency Depth Gain Frame
rate
B Dynamic
Range
Tissue
Specific
Imaging
Displayed when the corresponding functions are
enabled
The following parameters can be adjusted during B Mode imaging.
Adjustment Item
Control panel Gain, Depth, iTouch, Zoom, and Focus Position
Touch screen TGC, Tint Map, Line Density, U/D Flip, Persistence, Rotation, L/R Flip,
Image Quality, Focus Number, FOV Position, Frequency, iClear, Dynamic
Range, FOV Range, TSI, Dual Live, iBeam, H Scale, ExFov, LGC, Gray
Map, A. Power, PW Steer, Echo Boost, Smooth, Optimize Speed, HD Scope,
and Zoom
