7. POSITIONING CONTROL
7 − 27
7.4 3-Axes Linear Interpolation Control
Linear interpolation control from the current stop position with the 3-axes
designated in the sequence program positioning commands.
Items Set by Peripherals
Common Arc Parameter Block Others
Servo
Instruction
Positioning
Method
Number of
Controllable
Axes
Parameter Block No. Axis Address/Travel Value Commanded Speed Dwell Time M-Code Torque Limit Value Auxiliary Point Radius Center Point Control Unit Speed Limit Value Acceleration Time Deceleration Time Rapid Stop Deceleration Time Torque Limit Value Deceleration Processing on Stop Input Allowable Error Range for Circular Interpolation S-Curve Ratio Cancel Start Speed Change
ABS-3
Absolute data
INC-3
Incremental
3 ∆ !!! ∆∆ ∆∆∆∆∆∆∆ ∆∆∆OK
! : Must be set
∆ : Set if required
[Control Details]
Control with ABS-3 (absolute data method)
(1) Linear interpolation with 3-axes from the current stop address (X
1
, Y
1
, Z
1
) to
the designated address (X
2
, Y
2
, Z
2
), using the home position as the reference.
(2) The travel direction is determined from the stop addresses and designated
addresses for the respective axes.
Reverse direction
Forward direction
Reverse direction
0
Zero point
Presitioning speed
: indicates set data
Linear interpolation control
of X, Y, Z axis
Current stop address
(X
1,
Y
1,
Z
1
)
Address after positioning
(X2,Y2,Z2)
Reverse direction
Forward direction
Forward direction
The travel direction is shown below if the current stop address is (1000,
2000, 1000) and the designated address is (4000, 8000, 4000).
Forward direction
Positioning address
(4000, 8000, 4000)
Current stop address
(1000,
2000, 1000)
8000
2000
40000
1000
1000
4000
X-, Y-, Z- axis linear
interpolation movement
Forward direction
Forward direction
Home position

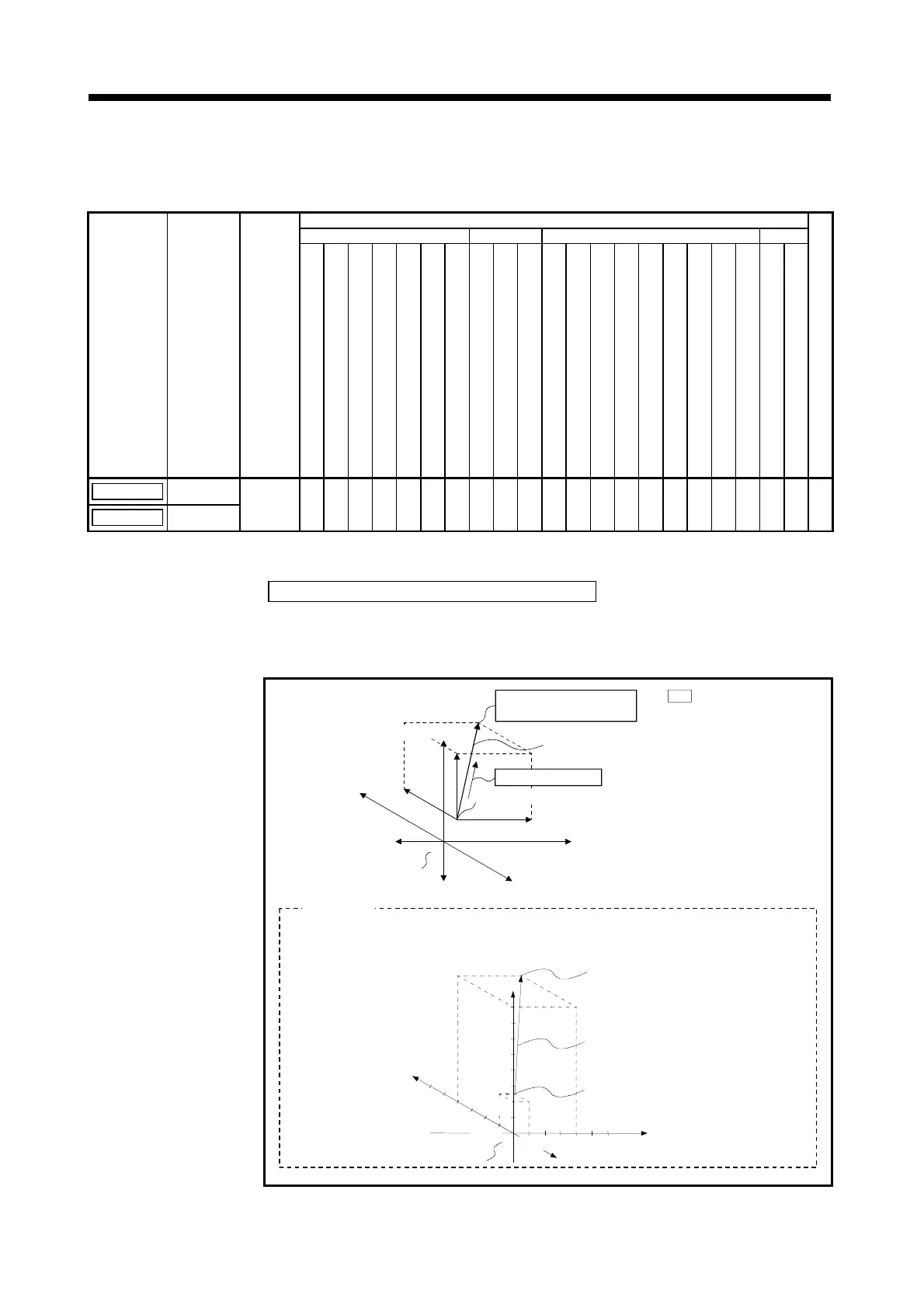

Fig.7.5 Positioning by Absolute Data Method
Example
