APPENDICES

APP − 53

APPENDIX4 EXAMPLE PROGRAMS

4.1 Reading M Codes

An example of a program for reading an M code on completion of positioning start

or on completion of positioning is shown here.

The distinction between positioning start completion and positioning completion is

made with the following signals.

• Positioning start completed .........M2400+20n (positioning start completed signal)

• Positioning completed..................M2401+20n (positioning completed signal)

[Program Example]

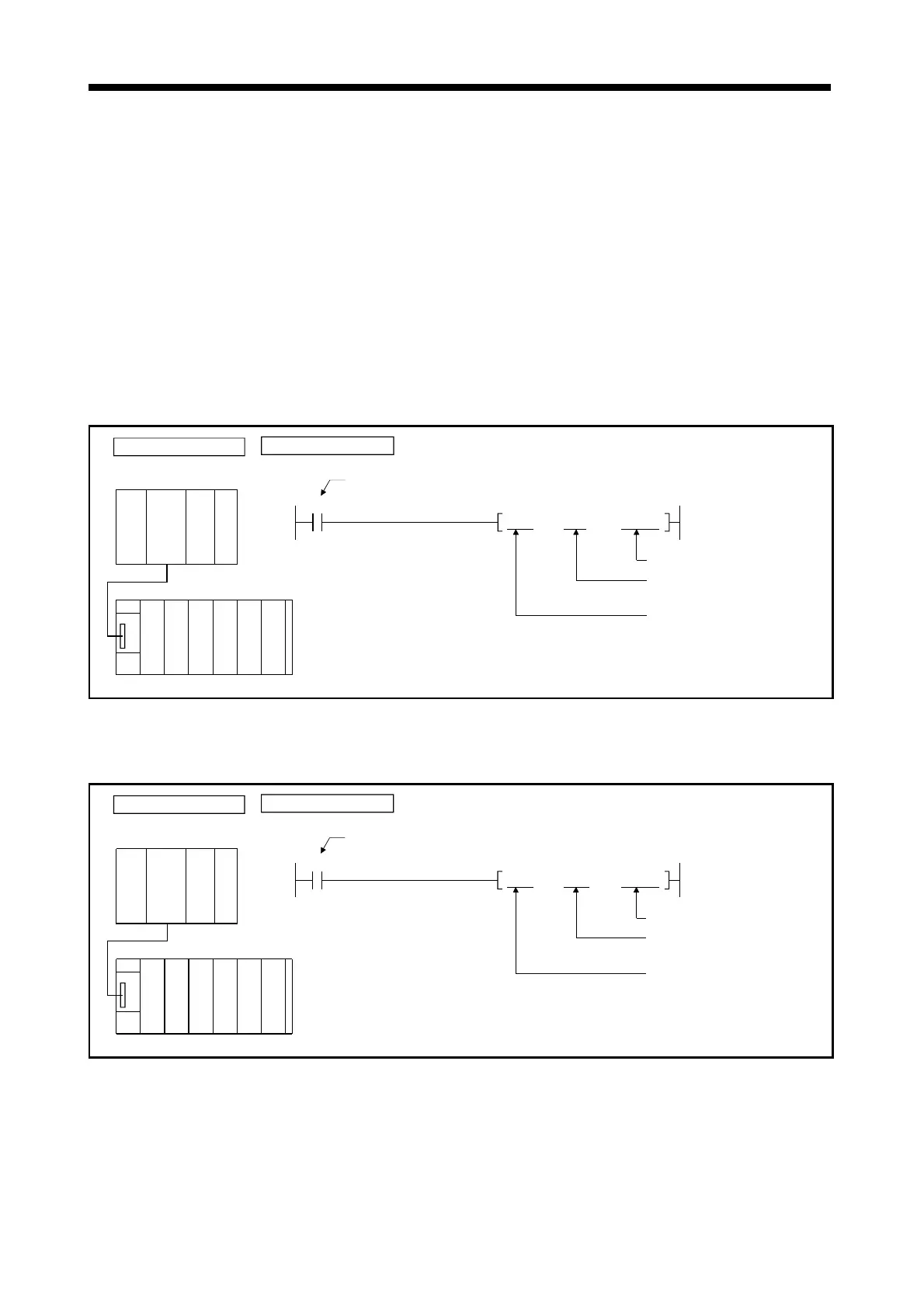

(1) A program that outputs the M code for axis 1 from Y000 to Y00F to an external

destination on completion of positioning start and after conversion to BCD code,

is shown here.

System configuration

Sequence program

A273UH

CPU

A278

AY40

Y000

Y00F

M2400

BCD

D13 Y0000

CIRCUIT END

Axis 1 positioning start completed signal

Y000 to Y00F designation

M code storage area for axis 1

(Refer to Section 3.2.1.)

BCD conversion instruction

Power supply

module

A61P

(2) A program that outputs the M code for axis 1 from Y000 to Y00F to an external

destination on completion of positioning and after conversion to BCD code, is

shown here.
