2Unpacking to installation
Installation 2-17

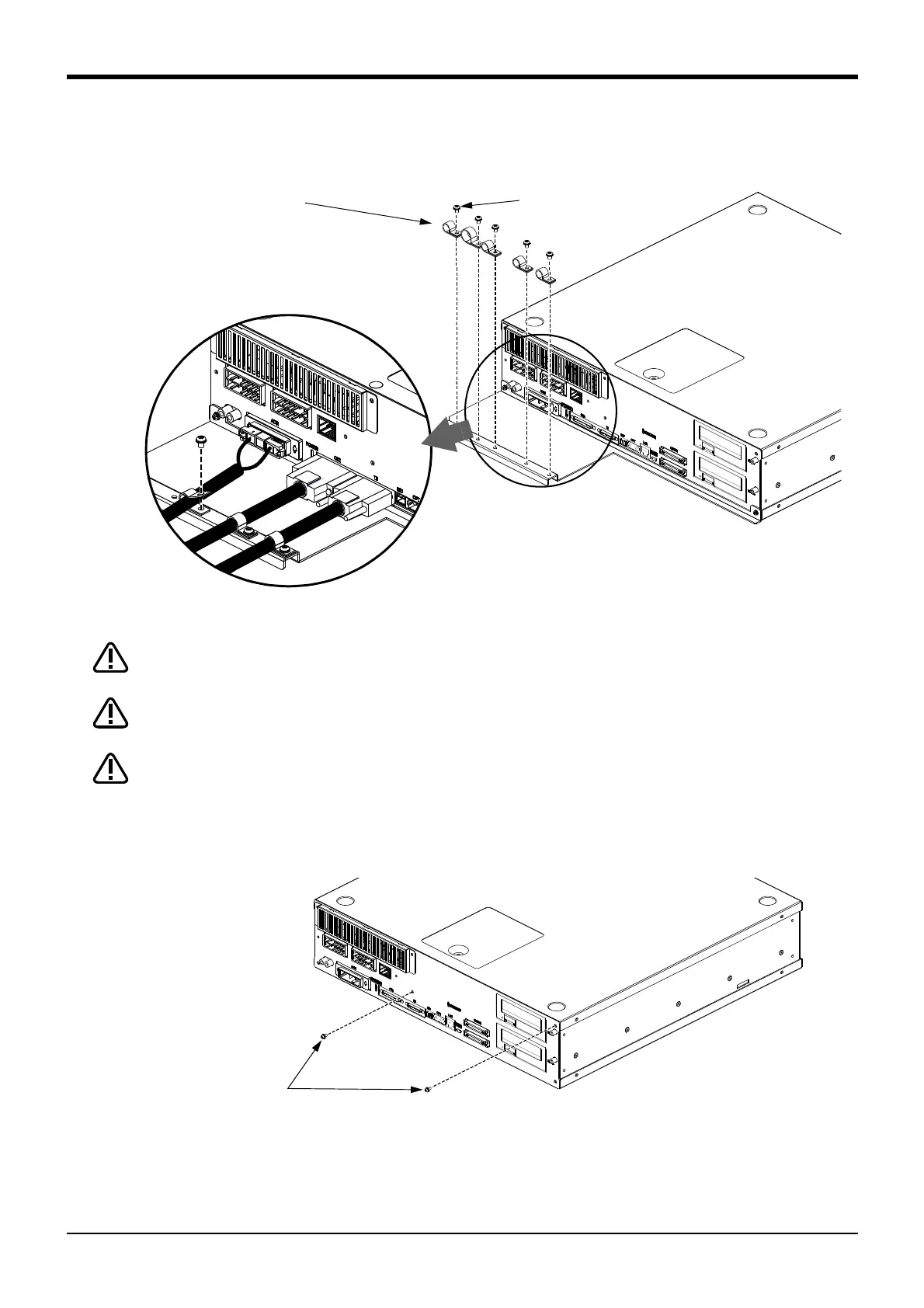

3) Connect cables (machine cables, TB cable, power cable and communication cables) and hold the cables with
cable clamps (attachments).
When installing the cable fixation plate, use the screws removed in the step "1)". Using
screws other than those may cause damage of the components inside the controller.
When the cable clamp cannot tighten a cable enough and the cable slips under the clamp,
wrap tape around the cable to increase the diameter to be firmly fixed.
Applying force to the cable fixation plate may cause deformation of the plate or damage
on the fixing screws.
(2) Installing the cover plate
1) Remove two screws (M3).
Cable clamp
(Attachment)
M4 screw
(Attachment)
* The figure on the left shows an example of how to fix the cables.
Determine the number or the positions of cable clamps as needed.
* The controller is an example.
M3 screw
* The controller is an example.
To Next Page
