3Installing the option devices
Installing the extension memory cassette 3-67
3.2 Installing the extension memory cassette

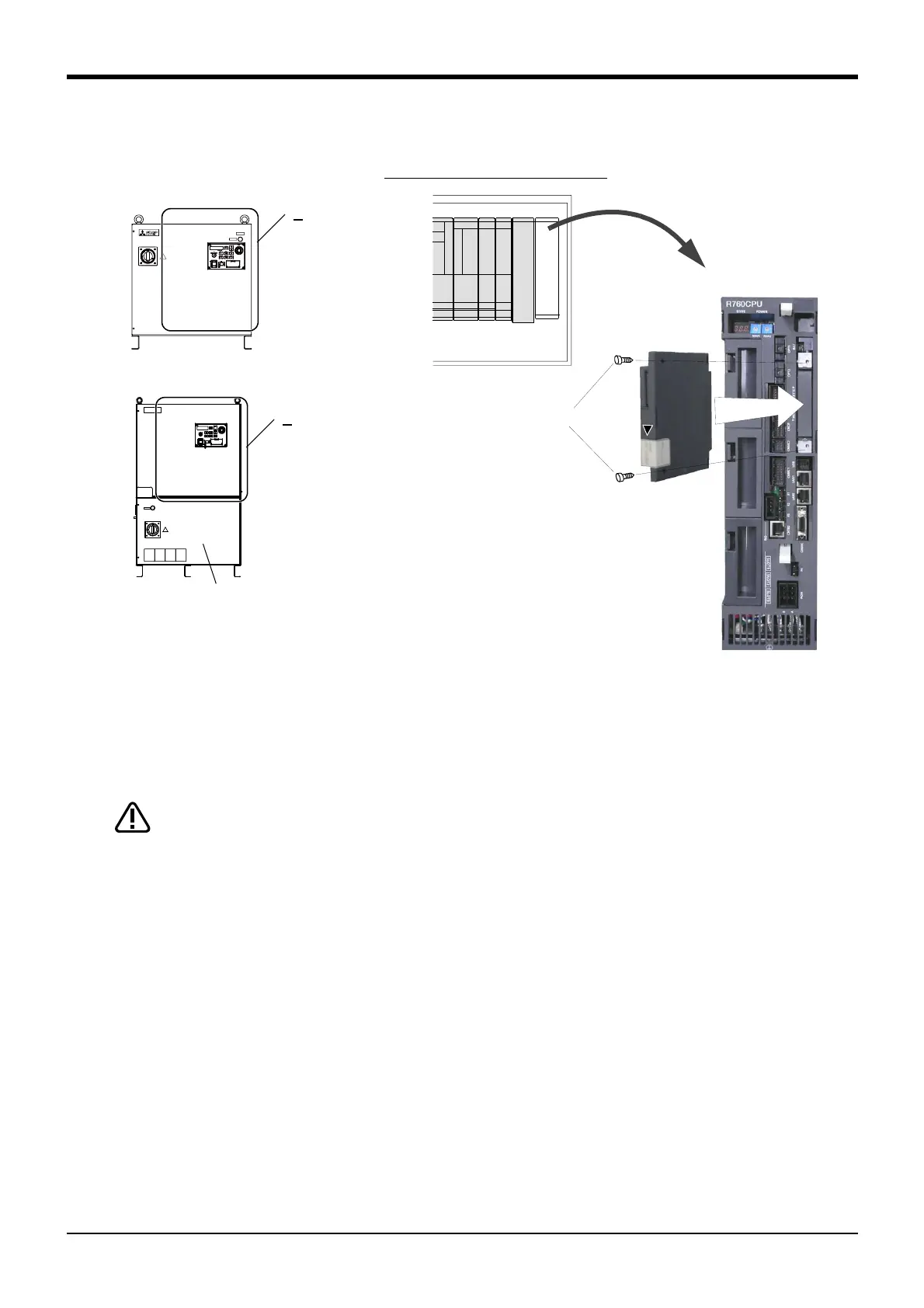

Fig. 3-3 ： Installing the extension memory cassette
1) Completely back up the memory information in the robot controller by using the RT ToolBox 2. (This must
be performed as a preventive measure in case the contents of the internal memory are destroyed while
inserting a memory cassette.)
2) Turn off the controller power.
Also turn off the supplying source power switch at the controller.
If that is not right, there is danger of the electric shock.
3) Open the front door of the controller, and remove the cover at the memory cassette slot on the R760CPU
unit.
4) Insert the memory cassette all the way to the back with the ”arrow mark”(the surface which inserts screw
has the mark) facing downward, and fix surely two screws attached as shown in Fig. 3-3.
Note) Please keep in mind that the cassette will change if it fastens too much.
5) Install the removed cover in "3)".
6) Turn on the controller power.
This completes the installation of the extension memory cassette.
[CAUTION]
The programs that are stored in the control unit will be moved into the extension memory cassette; they will be
deleted from the memory in the control unit.
Please be careful not to remove the memory cassette, since if you remove it, there will be no program
information residing in the controller (the information is in the memory cassette).
Although the program information (***.mb5) is copied into the memory cassette, the parameter information
(***.prm) is still stored in the control unit.
The ” ▲ ” is facing downward.
M4 screw x 2
R760CPU unit
<Non-CE marking specification>
<CE marking specification>
A
View A: Inside of CR760 controller
A
*1) It is necessary to open the transformer box's door
when performing this installation work.
Transformer box
*1)
