2Unpacking to installation
Installation 2-25

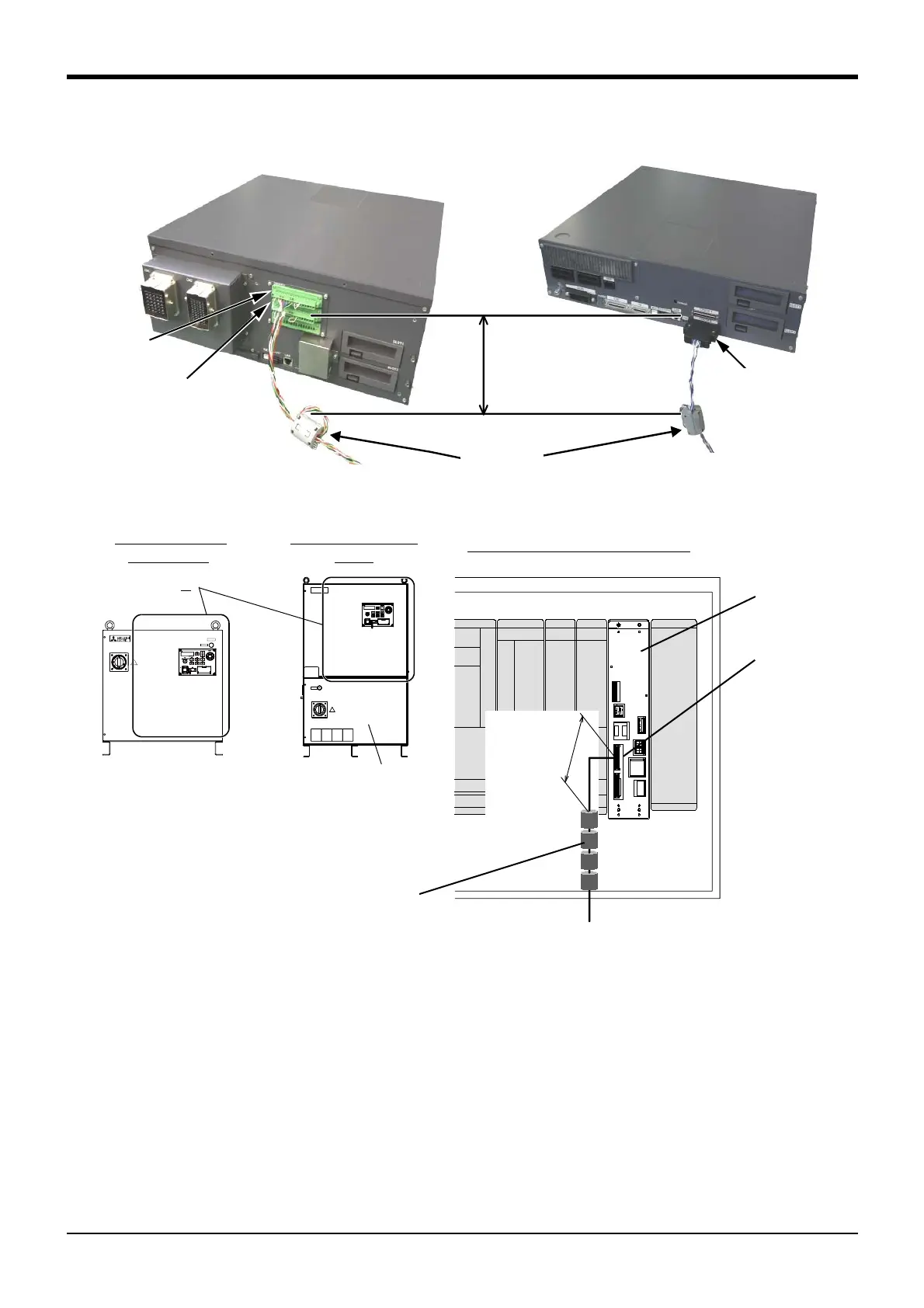

Fig. 2-14 ： Emergency stop cable connection
㼃㼕㼠㼔㼕㼚㻌㻟㻜㻜㼙㼙
View A: Inside of CR760 controller
Safety unit
(R760SFT)
Ferrite core (attachments)
Pass once
EMG1
POWER
CR760
!
Non-CE marking
specification
CE marking specifi
-
cation
A
<CR760 controller>
30cm以内
フェライトコア
(2回通し)
<CR750 controller (Rear side)>
CNUSR11
connector
<CR751 controller (Front side)>
CNUSR12
connector
Ferrite core
(Pass twice)
CNUSR2
connector
Within 300mm
* The controller is an example.
*1) It is necessary to open the transformer box's door
when performing this connection work.
Transformer box
*1)
