3-66 Installing the Option Card
3Installing the option devices
(2) CR760 controller

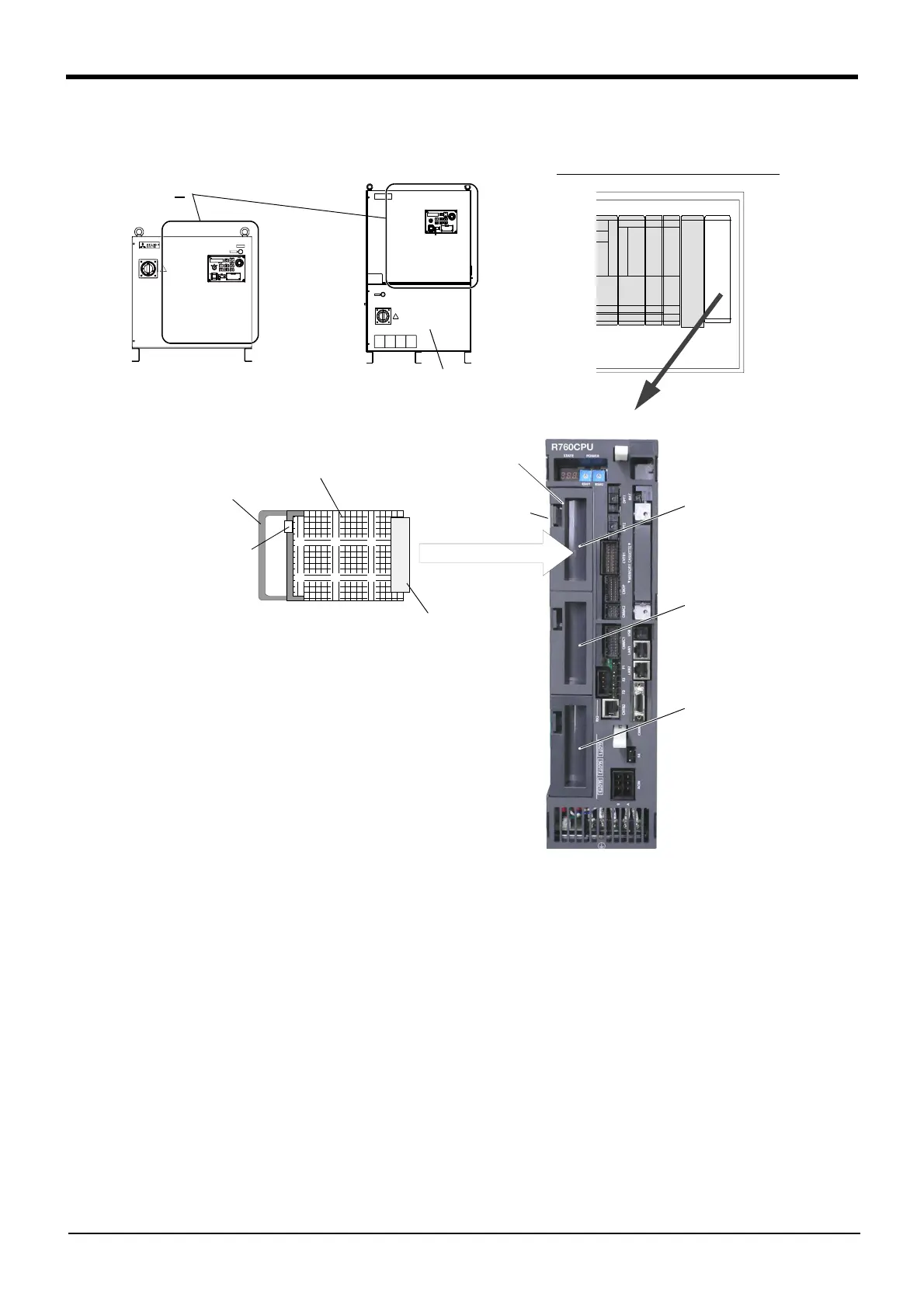

Fig. 3-2 ： Installation of the interface card (CR760 controller)
1) Turn off the power.
2) Pick the interface cover removal lever and pull up the interface cover.
3) Insert the interface card in SLOT1, SLOT2, or SLOT3.
Insert the card as both ends of the card may fit into the guide of slot (SLOT1, SLOT2, or SLOT3 showed
in Fig. 3-2).
4) Insert the connection connector securely to the back until the removal lever is locked with the sound.
This completes the installation of the interface card.
接続コネクタ
インタフェースカード
取っ手
インタフェースカバー
インタフェースカバー
取外しレバー
SLOT1
SLOT2
SLOT3
R760CPUユニット
取外しレバー
R760CPU unit
Interface card
Interface cover
Interface cover
removable lever
Handle
Removable
lever
(Other side)
Connecting connector
<Non-CE marking specification> <CE marking specification>
A
View A: Inside of CR760 controller
*1) It is necessary to open the transformer box's door when per
-
forming this installation work.
Transformer box
*1)
