2Unpacking to installation
Installation 2-61
2.2.10 Magnet contactor control connector output (AXMC) for addition axes
When an additional axis is used, the servo ON/OFF status of the additional axis can be synchronized with the
servo ON/OFF status of the robot itself by using the output contact (AXMC) provided on the rear or inside of the
controller and configuring a circuit so that the power to the servo amplifier for the additional axis can be turned
off when this output is open. An example circuit and an image of how to connect the controller connector are
shown below. When you are using an additional axis, please perform appropriate circuit connections by referring to
these drawings.
Note1) you use the addition axis function as a user mechanism who became independent of the robot arm,
please do not connect this output signal. Servo-on of the user mechanism.
(1) Example circuit
■ CR750/CR751 controller

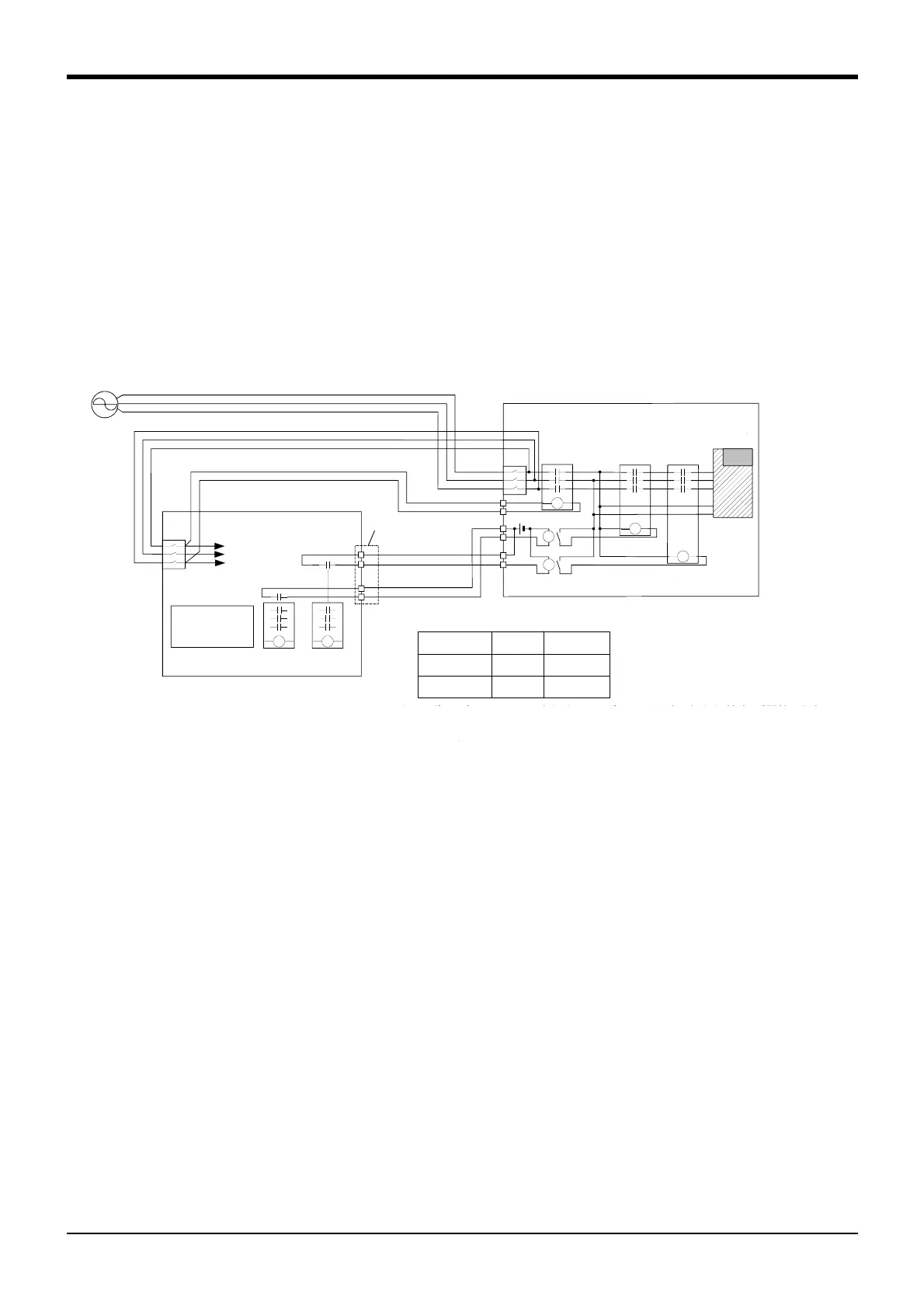

Fig. 2-45 ： Example of circuit for addition axes of Magnet contactor control output (CR750/CR751 controller)
MC2
NV
MC MC1
内部回路へ
<コントローラ>
内部サーボ電源用
コンタクタ接点より
AXMC出力
<走行軸（付加軸）アンプボックス>
NV
２）コントローラ内蔵漏電遮断器（NV）の２次側より、
MC同期用電源を取り出す。
AXMC21
注2)
１）付加軸アンプボックス内蔵漏電遮断器（NV）の２次側より、コントローラ電源を取り出す。
AXMC11
注1)
88
CNUSRコネクタ
アンプ
DC24V
AXMC12
AXMC22
注2)
注1)コネクタとピン番号を以下に示します。
AXMC11
AXMC12
AXMC21
AXMC22
注2)ロボットがアラームの発生などでサーボOFFしたとき、本出力(接点)が開放します。
<接点容量>
DC24V/10mA～100mA
信号名
ピン番号
コネクタ
CNUSR2
45
19
44
20
CNUSR2
1) Get the power supply for the controller from the secondary terminal
of short circuit breaker (NV) built in the addition axis amplifier box.
2) Get the power supply for the MC synchronization from the sec
-
ondary terminal of short circuit breaker (NV) built in the control
-
ler.
To the
internal
circuit
AXMC is output
from the contact
for internal servo
power supplies.
<Controller>
CNUSR connector
Note1)
Note2)
Note2)
Amplifier
<Addition axis amplifier box><Addition axis amplifier box>
Signal
Connector Pin number
Note2) This output is opened, if the robot turns off the servo by occurrence of alarm etc.
<Electric specification>
DC24V/10mA to 100mA
Note1) Connector and Pin number.
[Note] In the customer's system, do not ground the + side of 24V power supply prepared by customer for connect to the
controller. (related with emergency stop and parallel input/output) If it connects with the controller under the condition
that the + side is grounded, it will lead to failure of controller.
