4-74 Handling the controller
4Basic operations
(3) CR760 controller

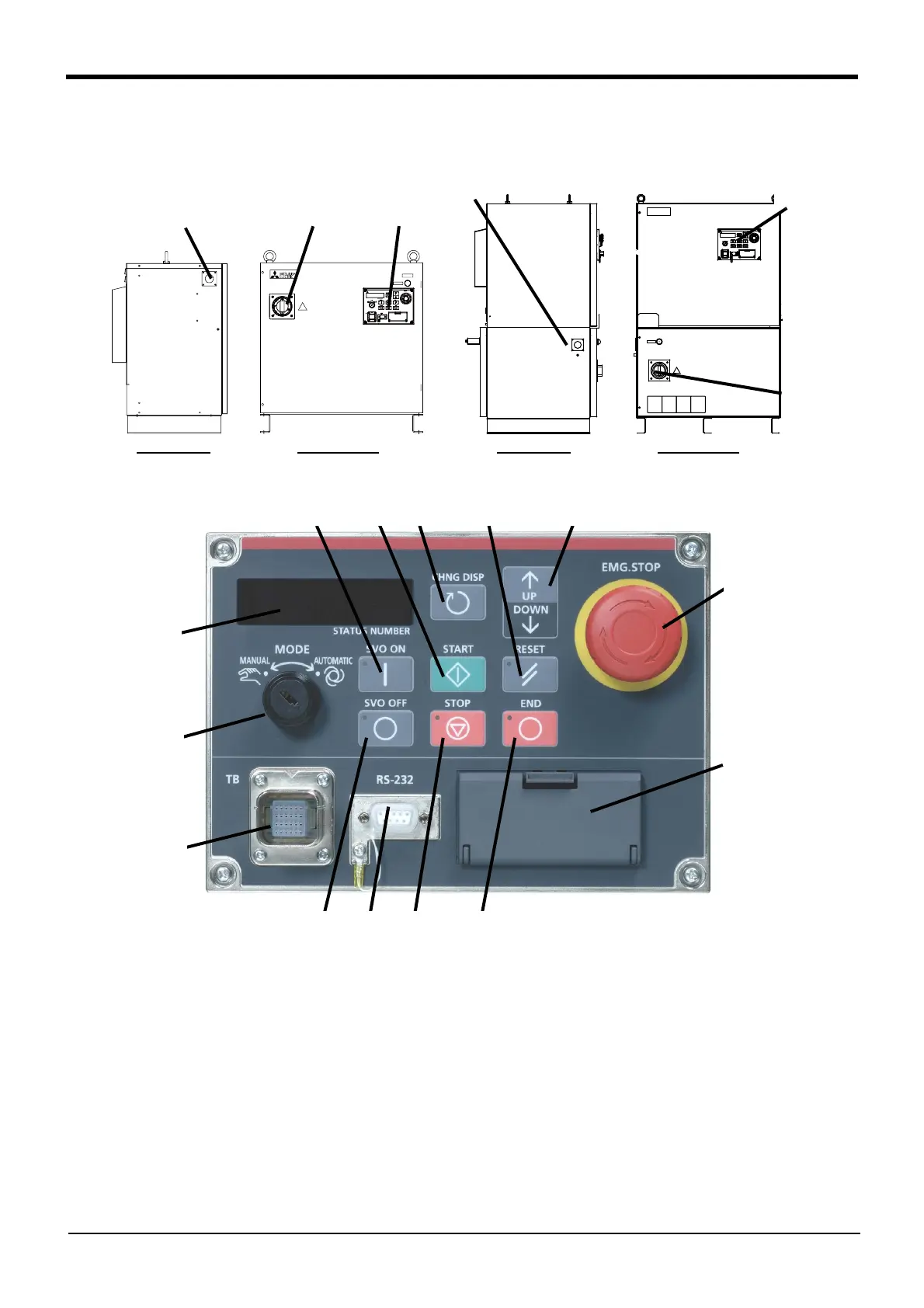

Fig.4-3 ： Names of controller parts (CR760)
<1> Power switch..................................................This turns the control power ON/OFF. (With earth leakage breaker func
-
tion)
<2> Operation panel.............................................The operation panel for servo ON/OFF, START/STOP the program etc.
<3> START button ...............................................This executes the program and operates the robot. The program is run
continuously.
<4> STOP button..................................................This stops the robot immediately. The servo does not turn OFF.
<5> RESET button................................................This resets the error. This also resets the program's halted state and
resets the program.
<6> Emergency stop switch .............................This switch stops the robot in an emergency state. The servo turns OFF.
<7> CHNGDISP button.......................................This button changes the details displayed on the display panel in the
order of "Override" → "Line No." → "Program No." → "User informa
-
tion." → "Maker information.".
<8> END button.....................................................This stops the program being executed at the last line or End statement.
<1>
POWER
CR760
!
<1>
<2>
<15>
Side view Front view Side view Front view
<2>
<15>
<Non-CE marking specification> <CE marking specification>
<2>: Operation panel
<3>
<4>
<5>
<6>
<7>
<8>
<9>
<10>
<11>
<12>
<13>
<14>
<16>
<17>
