6.13 Execution Time Measurement
6.13.2 Interrupt program monitor list
6.13.2Interrupt program monitor list
(1) Definition
This function displays the number of executions of an interrupt program.
This function is used to check the execution status of the interrupt program.
(2) Execution
Selecting [Online] [Monitor] [Interrupt program monitor list] of GX Developer opens the Interrupt program
monitor list screen.
Figure 6.52 shows an execution example of the interrupt program monitor list.
(a) Execute count
The number of executions of an interrupt program is displayed.
This function starts counting after the CPU module is in the RUN status.
When the counting reaches 65536 times, it is reset to 0.
(b) Common comment
Device comments created to an interrupt pointer are displayed.

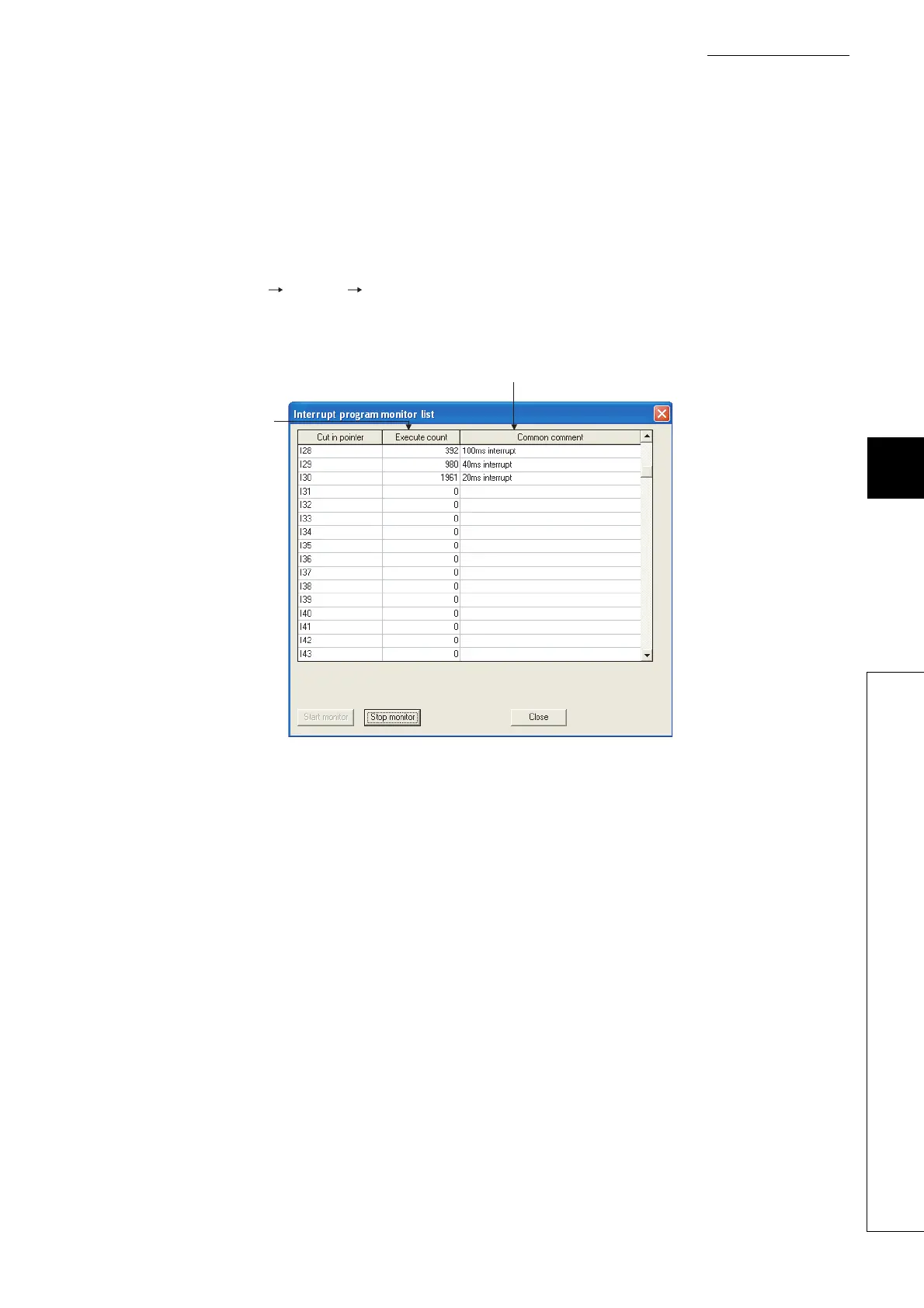

Figure 6.52 Interrupt program monitor list screen
